Does the BMS include low-temperature disconnect?

Yes. Our 200 A BMS protects against charging or discharging in unsafe temperatures. Charge cutoff: 0 °C – 45 °C Discharge cutoff: –20 °C – 60 °C

Are WattCycle 12V 314Ah LiFePO4 batteries safe?

Absolutely. LiFePO4 is the most stable lithium chemistry on the market. WattCycle cells are UL-certified and housed in an IP65-rated case. Our internal BMS guards against: Over Charge & Over Discharge Under Voltage & Over Voltage Over Current & Short Circuits High Temperature Low-temperature Cut-off

How to store LiFePO4 batteries?

1. Recommended Storage Conditions To achieve optimal storage results, LiFePO4 batteries should be kept in a cool, dry place. Ideal Storage Temperature: 15°C – 25°C. Humidity: Keep humidity as low as possible to avoid moisture buildup. 2. Recommended Charge Level During Storage LiFePO4 batteries should be stored at a partial state of charge (SOC) between 50% and 80%. Why Avoid Full Charge/Discharge? Storing the battery fully charged or fully discharged can stress the cells and lead to gradual capacity loss over time. A partial charge helps preserve battery health during storage. Additional Tips: Check Periodically: If storing for extended periods (>3 months), check the SOC every 3–6 months and recharge to 50–80% if needed. Avoid Extreme Temperatures: Never store in freezing (<0°C) or excessively hot (>60°C) environments.

Local EU Warehouses
14-Day Price Guarantee
Hassle-Free Warranty
Lifetime Customer Support

Payment Method

ECE R10 Certified

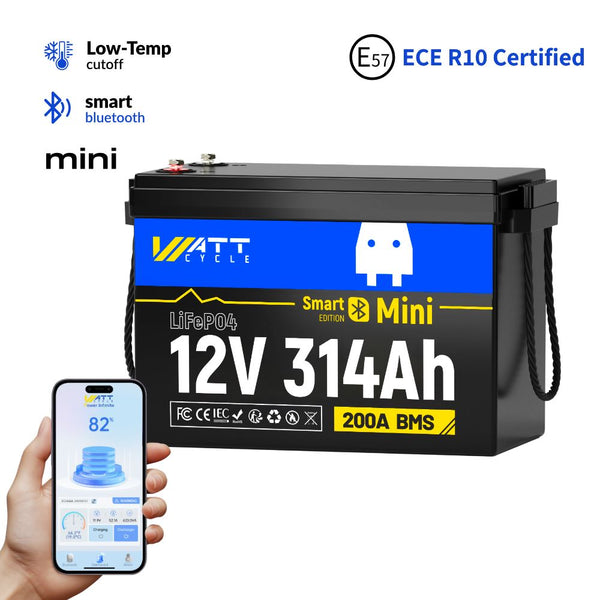

Bateria WattCycle 12V 314Ah Mini LiFePO4 com Bluetooth | Certificado ECE R10

€559,99 EUR€1.299,99 EUR

Apply 7% OFF Code: 7PrimeDay

Extreme Compact Size, Ultra Powerful

The 12V 314Ah Mini Bluetooth LiFePO4 battery has an extremely compact size and high-performance EV Grade A+ prismatic cells, delivers up to 326.5Ah of usable capacity and supports over 5.000 cycles at 90% depth of discharge. This game-changing battery is ideal for motorhomes, campervans, caravans, solar applications, marine use, sailboats, and more.

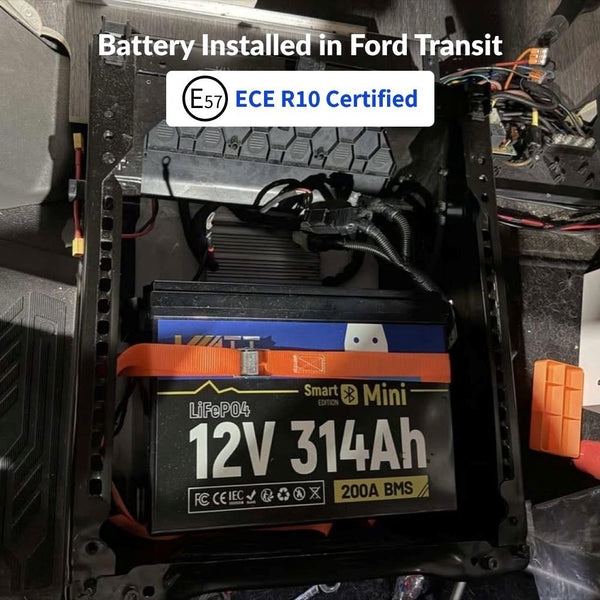

Safeguard your motorhome with ECE R10 Certified (E57*10R06/03*1833) power

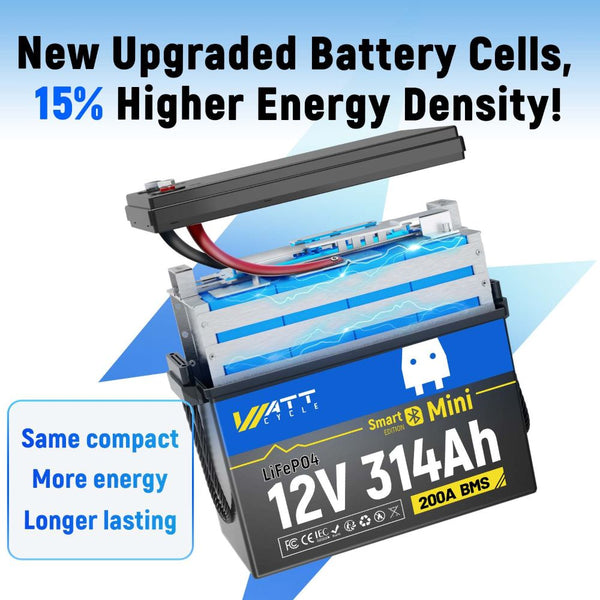

Beyond The Capacity: Build with EV Grade A+ LiFePO4 prismatic cells delivers up to 326.5Ah of usable capacity
Mini Size: L384 x W194 x H248mm, 27kg, L340mm without the handles
Compact: 33% smaller than 3-pack of 12V 100Ah (same capacity); 12% higher capacity than 12V 280Ah Mini Bluetooth battery
High Energy Density: 148,85Wh/kg
200A BMS: 2560W output power, 4019Wh usable energy, 200A Max. Cont. Dis-/Charge Current, 210A ± 10A 1.2s Peak Discharge Current
Communication: Bluetooth 5.0 to monitor the battery via the WattCycle App in real-time
Expansion: Support 4P4S connection to 64.31kWh energy
Certifications: IEC, CE-EMC, CE-RoHS, CE-Battery, FCC-SDOC, UN38.3, MSDS, CE-RED, ECE R10 (E57*10R06/03*1833)

Opções

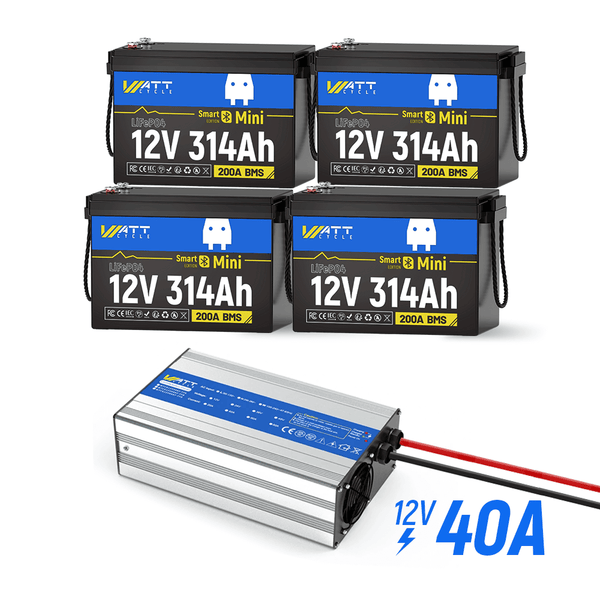

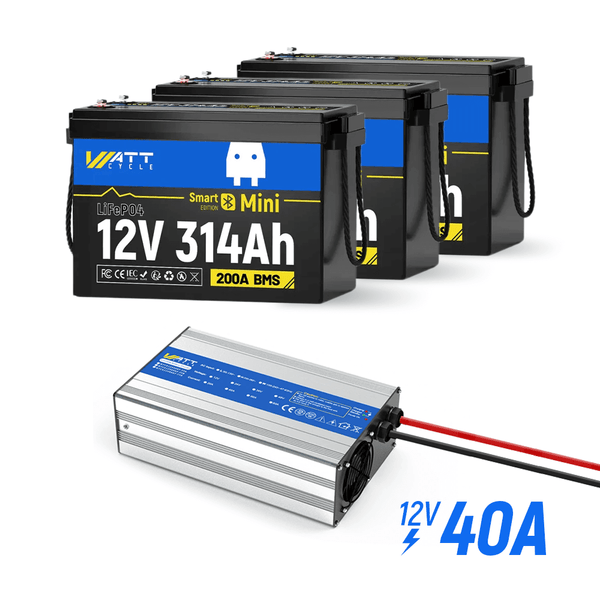

1 pacote (4,02 kWh) 👍 Pacote com 2 unidades (8,04 kWh) Pacote com 3 unidades (12,06 kWh) 👍 Pacote com 4 unidades (16,08 kWh)

Free & Fast Shipping: Enjoy free shipping on your orders. The estimated shipping time varies by country. More information on Shipping Policy
Germany/Poland Local Warehouses: Orders are dispatched directly from our Local Germany/Poland Warehouses.
Instant Savings via Local Pickup: Contact us to pick up at our German/Polish warehouse for exclusive savings and avoid courier wait times.
Canary Islands (Spain) Shipping: You can shop our full range with ease via the GUANXE.COM App.

Shop with 100% confidence. We’ve removed all the risk.

xCotton Shipping Protection: Peace of mind is built in. Opt for xCotton Protection at checkout to safeguard your investment against loss, damage, or theft.
Zero-Cost Returns: If you aren’t completely satisfied, returns and exchanges are 100% FREE when your order is protected by xCotton. No hidden fees, no stress.
Learn more about xCotton Shipping Protection

We’re here for you every hour of every day. No bots, just experts.

Real Humans, Real Help: Please feel free to contact us via Email (support.eu@wattcycle.com) or WhatsApp(+86 159 9474 4297).
Reliability You Can Trust: We don't just sell products; we provide a reliability partnership that lasts long after your delivery arrives.
Wholesale Inquiry: Please feel free to contact us via Email (sales@wattcycle.com) or WhatsApp(+86 159 9474 4297)

We’ve got you covered for the long run. No stress, just solid protection.

Built to Last, Guaranteed for Years: We stand behind the quality of our engineering. Every purchase includes a 5-Year Base Warranty automatically.
Extend Your Protection to 7 Years: Register your product within 3 months of purchase to unlock an additional 2-Year Extended Warranty (7 years total) at no extra cost. Register Your Product & Extend Your Warranty Here
Complete Transparency: For full details on coverage, claims, and technical support, please review our comprehensive policy: View Our Full Warranty Policy

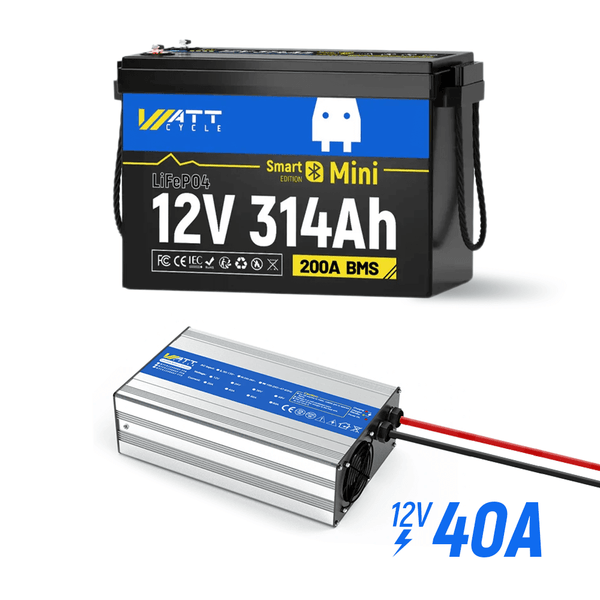

WattCycle 12V 40A AC-DC LiFePO4 Battery Charger - Using this charger, a 12V 314Ah Mini Bluetooth battery can be fully charged in approximately 8 hours.
WattCycle 12V 60A AC-DC LiFePO4 Battery Charger - Using this charger, a 12V 314Ah Mini Bluetooth battery can be fully charged in approximately 6 hours.

Local EU Warehouses
14-Day Price Guarantee
Hassle-Free Warranty
Lifetime Customer Support

Payment Method

WattCycle 12V 314Ah Mini LiFePO4 Battery with Bluetooth

Bateria WattCycle 12V 314Ah Mini LiFePO4 com Bluetooth | Certificado ECE R10

€559,99 EUR

€1.299,99 EUR

Feature
Tech Specs
Faqs
Reviews

12.8V Voltage
314Ah Capacity
2560W Max. Load
4019.2Wh Usable Energy

WattCycle Revolutionary Battery, More Energy in a Compact Design

WattCycle 12V 314Ah Mini Bluetooth lithium leisure battery has an internal 200A BMS(Battery Management System), which ensure a max 200A(1C) continuous discharge/charge current. Made of EV-grade A+ cells, it can store 4.01kWh energy, providing enough energy during your motorhome trip.

The external IP65 waterproof rating makes the battery fearless of salt environments, and the internal metal frame ensures that the battery is safe even in bumpy environments.

Why 12V 314Ah Mini Bluetooth Lithium Leisure Battery

With high and low temperature cut-off protection, it keeps your essentials powered through the cold and heat. When the battery is in use, the BMS initiates protection when the temperature drops below -25°C to -15°C. When the temperature rises from 5°C to 15°C, the battery continues to discharge.

Flexible Installation, Unlimited Possibilities

WattCycle 12V 314Ah Mini Smart Battery can be placed sideways. Its dimensions of L384 x W194 x H248 mm are extremely suitable for the narrow space of the motorhome yet provide much more usable energy.

Whether you’re preparing a powerful energy system in your campervan, storing energy for your boat on open waters, or setting up an outdoor portable power station, this battery offers complete flexibility in installation.

It can be safely mounted upright, sideways, or flat, ensuring stable performance and reliable power delivery in any position. No matter the environment, it adapts perfectly to your space and keeps your energy flowing without compromise.

Flexible Installation, Unlimited Possibilities

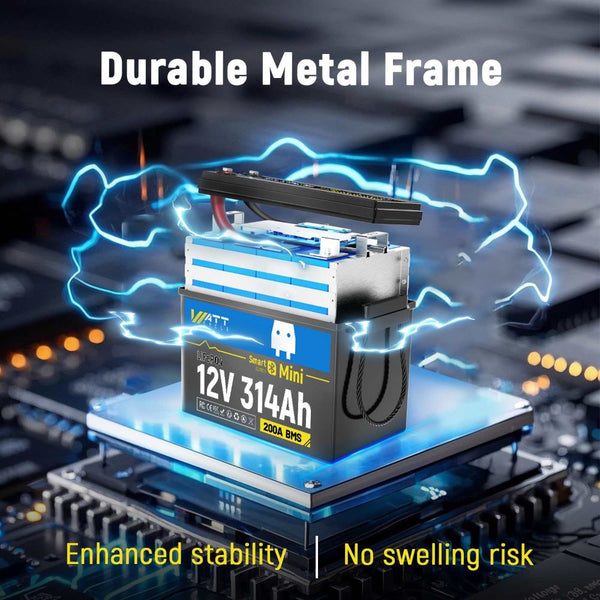

Upgraded To Safer, Designed To Be Stable & Durable

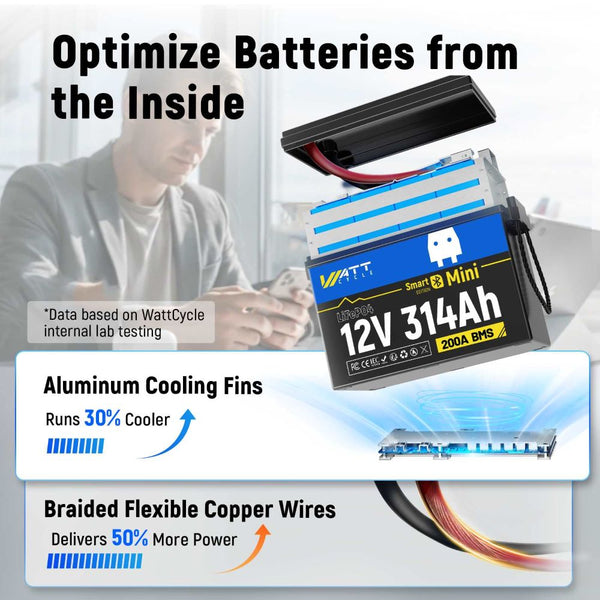

WattCycle 12V 314Ah Mini lithium leisure battery has a unique internal design. There is a metal frame inside to enhance the stability of the battery. Built with braided flexible copper wires, it can deliver 50% more power and run 30% cooler with the aluminum colling fins.

The Ultimate Upgrade from AGM Battery

WattCycle's flagship 12V 314Ah Mini Bluetooth lithium battery redefines portable power with its space-saving dimensions (L384 × W194 × H248mm, L340mm without the handles) and remarkably light 27kg frame. Delivering 2560W output and 4019Wh capacity, it outperforms traditional setups - replacing three bulky lead-acid batteries (87kg) that offer just 1800W/1800Wh. It's a smarter and more efficient energy solution for modern needs.

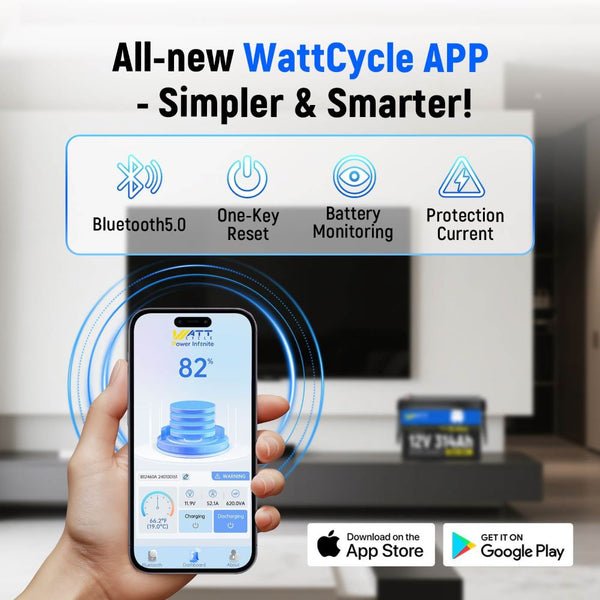

Effortless Bluetooth Connectivity To Control Battery Smartly

Gain complete oversight of your power system in three quick steps: Install the WattCycle App, detect your Bluetooth-enabled battery, and pair it through the interface. The App is readily available - either scan the provided QR code or locate "WattCycle" directly in the Google Play or Apple App Store.

Scalable Power, Expand Your Energy Potential

WattCycle 12V 314Ah Mini Bluetooth LiFePO4 battery supports Max. 4 batteries in parallel and Max. 4 batteries in series (4P4S). 16 pcs WattCycle 12V 314Ah Mini Bluetooth LiFePO4 batteries can form a 48V 1256Ah battery system, providing up to 64.31kWh energy to power your motorhome trip or sailing journey. The modular design lets you start small and expand as your power needs grow, making it perfect for weekend campers and full-time off-grid dwellers alike.

Power for Sustainable Adventures

For true energy independence, connect multiple WattCycle 12V 314Ah Mini lithium batteries to create amassive 64.31kWh power bank. This scalable system is ideal for extended motorhome trips, marine excursions, and off-grid living situations - providing reliable electricity for appliances, navigation systems, and essential devices wherever your journey takes you.

Tech Specifications

General

Battery Technology	LiFePO4
Dimensions	With Handles: L384 x W194 x H248mm Without Handles: L340 x W194 x H248mm
Weight	27kg
Terminals	M8 Bolts
Casing Material	ABS
Waterproof Rating	IP65
Certifications	ECE R10, IEC, FCC, CE-EMC, CE-RoHS, CE-Battery, CE-RED, UN 38.3, PSE, METI
Hazard class	9
Warranty	5 Years

Technical Data

Nominal Voltage	12,8V
Nominal/Usable Capacity	314Ah
Energy	4019Wh
Cell Balancing	Yes, passive balancing
Bluetooth	Yes, Bluetooth 5.0
Monthly Self Discharge	≤3%/Month
Series & Parallel Configurations	Max. 4 in Parallel, Max. 4 in Series

BMS

BMS	200A
Max. Continuous Output Power	2560W
Overall Over-Charge Detection Voltage	14,4±0,2V
Overall Over-Discharge Detection Voltage	10±0,2V
Standard Continuous Charge Current	62.8A (0.2C)
Max. Continuous Charge/Discharge Current	200A (1C)
Over-current Charge Protection	210A±10A
1st Discharge Over-Current	210A±10A @ 10±0,5s
2nd Discharge Over-Current	250A±10A @ 1±0,5s
BMS High Temperature Cut-Off	Charge: 55℃±5℃ Discharge: 65℃±5℃
BMS Low Temperature Cut-Off	Charge: 0℃±5℃ Discharge: - 20℃±5℃
High Temperature Recovery	Charge: 50℃±5℃ Discharge: 60℃±5℃
Low Temperature Recovery	Charge: 2℃±5℃ Discharge: -15℃±5℃

Temperature Range

Charging Temperature	0℃-55℃
Discharging Temperature	-20℃-60℃
Storage Temperature	0℃-45℃

Frequently Asked Questions

Yes. Our 200 A BMS protects against charging or discharging in unsafe temperatures.

Charge cutoff: 0 °C – 45 °C
Discharge cutoff: –20 °C – 60 °C

We recommend using a WattCycle LiFePO4 battery charger, which is specifically designed to meet the unique charging needs of LiFePO4 batteries. Alternatively, you can also charge the battery using photovoltaic solar panels through MPPT or use an inverter with a built-in AC to DC charging function.

Absolutely. LiFePO4 is the most stable lithium chemistry on the market. WattCycle cells are UL-certified and housed in an IP65-rated case. Our internal BMS guards against:

Over Charge & Over Discharge
Under Voltage & Over Voltage
Over Current & Short Circuits
High Temperature
Low-temperature Cut-off

Yes—our 12V 314Ah LiFePO4 Battery is designed for seamless solar charging. Simply pair it with an MPPT charge controller and a 1.200W PV array to top up in one sunny day (≈4.5 hrs of peak sun).

Optimal Setup: A 1.200W solar panel bank feeding an MPPT regulator ensures efficient charging of your 12V 314Ah solar battery.

Charge Profile: MPPT controllers adjust voltage/current to maintain the ideal 14,2V – 14,6V range, protecting cell health and maximizing cycle life.

Scalable: Whether you’re building out 12V 314Ah batteries for solar panels in parallel or keeping it simple with one pack, the WattCycle system adapts—no special wiring or firmware tweaks required.

1. Recommended Storage Conditions

To achieve optimal storage results, LiFePO4 batteries should be kept in a cool, dry place.
Ideal Storage Temperature: 15°C – 25°C.
Humidity: Keep humidity as low as possible to avoid moisture buildup.

2. Recommended Charge Level During Storage
LiFePO4 batteries should be stored at a partial state of charge (SOC) between 50% and 80%.

Why Avoid Full Charge/Discharge?

Storing the battery fully charged or fully discharged can stress the cells and lead to gradual capacity loss over time.
A partial charge helps preserve battery health during storage.

Additional Tips:

Check Periodically: If storing for extended periods (>3 months), check the SOC every 3–6 months and recharge to 50–80% if needed.
Avoid Extreme Temperatures: Never store in freezing (<0°C) or excessively hot (>60°C) environments.

Zero maintenance—no watering or equalizing. Just install, register your 7-year warranty, and enjoy consistent, long-lasting power for years to come.
