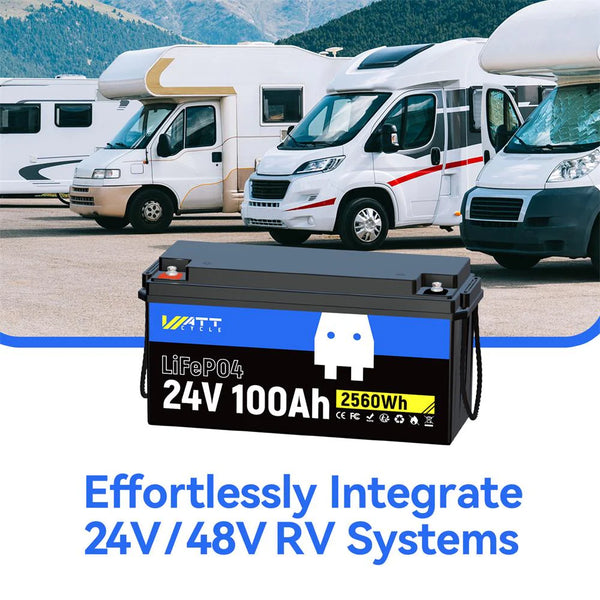

  • WattCycle 24V 100Ah deep cycle LiFePO4 battery design for 12V or 24V RV system
  • Multi-application of WattCycle LiFePO4 batteries

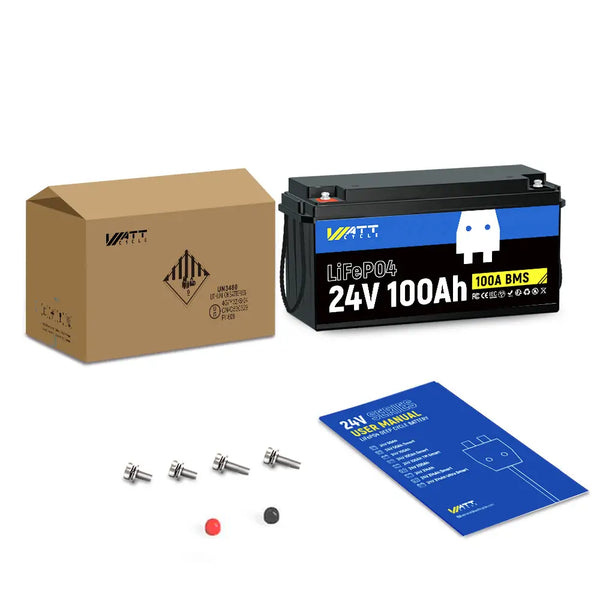

  • WattCycle 24V 100Ah LiFePO4 Battery packing list
  • WattCycle 24V 100Ah LiFePO4 Battery

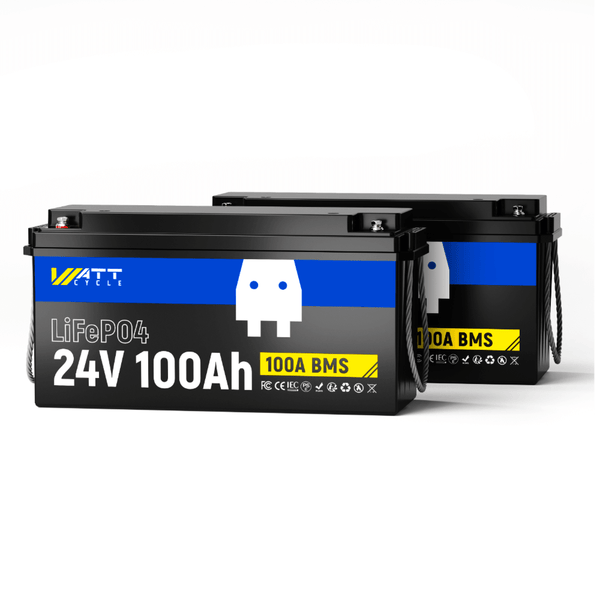

  • 2 pcs WattCycle 24V 100Ah LiFePO4 Batteries

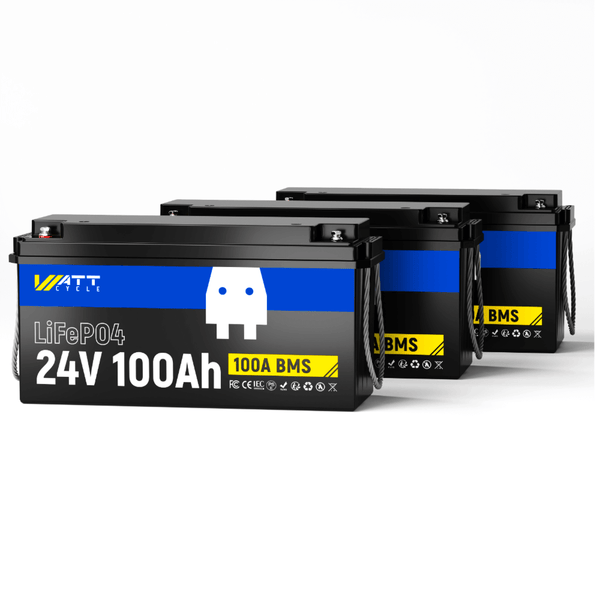

  • 3 pcs WattCycle 24V 100Ah LiFePO4 Batteries

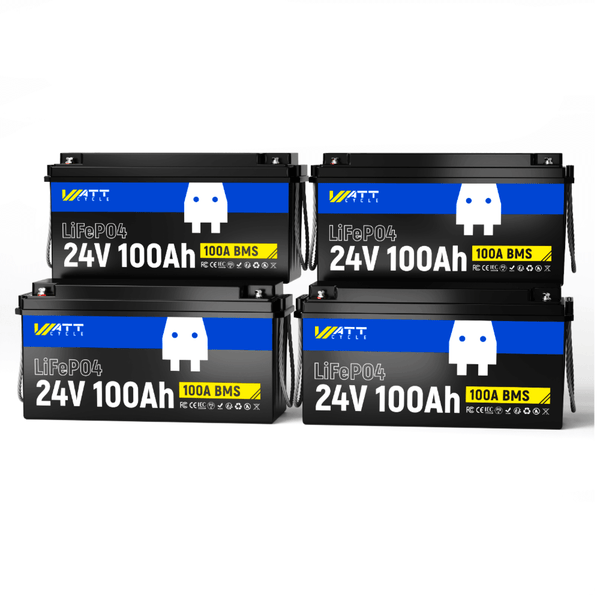

  • 4 pcs WattCycle 24V 100Ah LiFePO4 Batteries
  • Bateria WattCycle 24V 100Ah LiFePO4

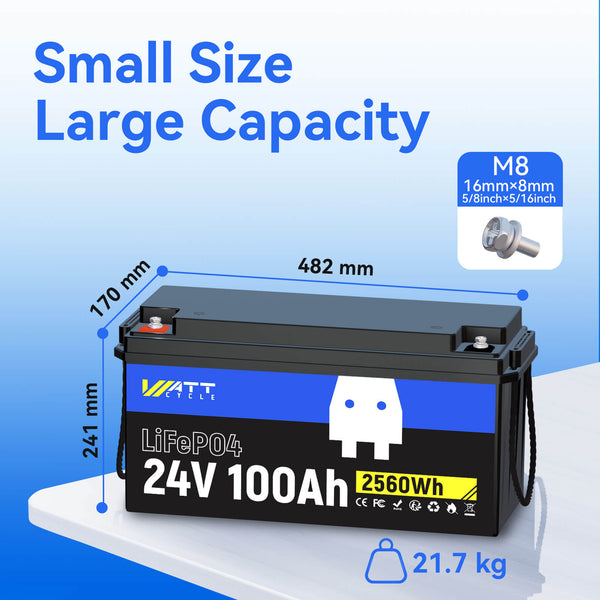

  • Battery size and weight of WattCycle 24V 100Ah LiFePO4 battery
  • Working Temperature of WattCycle 24V 100Ah deep cycle LiFePO4 battery

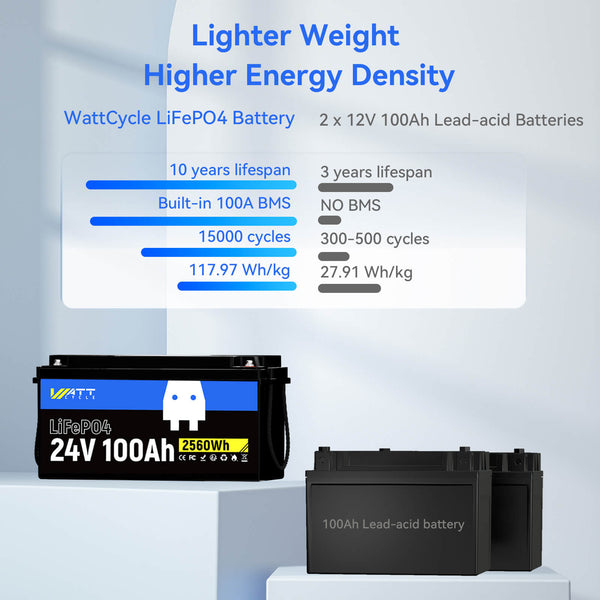

  • WattCycle 24V 100Ah LiFePO4 battery and 12V 100Ah lead-acid battery comparison

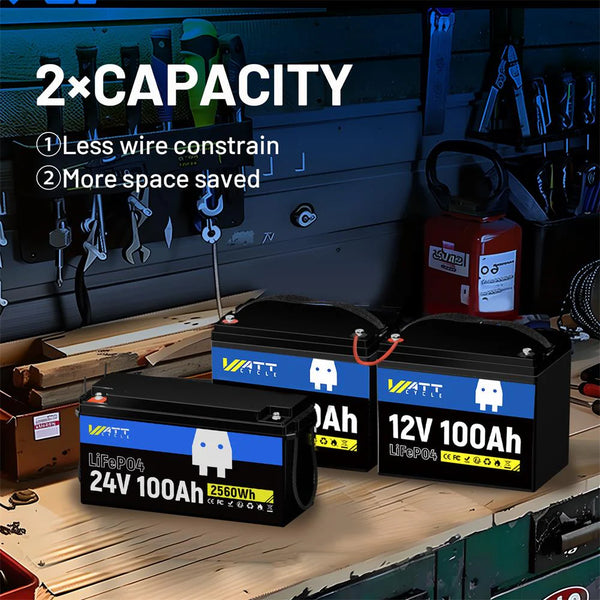

  • less wire constrain and more space saved of WattCycle 24V 100Ah affordable LiFePO4 battery
  • WattCycle 24V 100Ah long-lasting deep cycle battery with 2560Wh energy

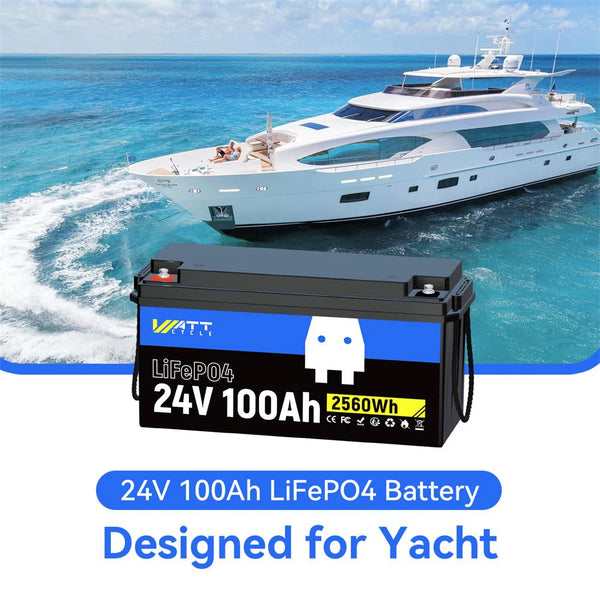

  • WattCycle 24V 100Ah deep cycle LiFePO4 battery design for yacht
  • WattCycle 24V 100Ah deep cycle LiFePO4 battery design for 12V or 24V RV system

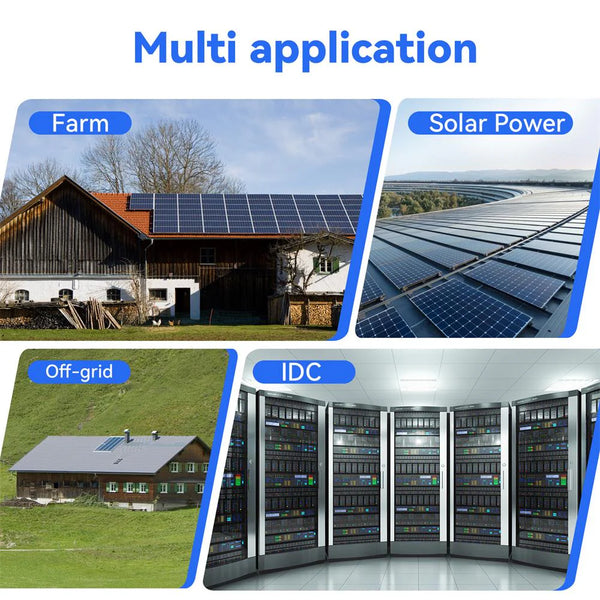

  • Multi-application of WattCycle LiFePO4 batteries
  • WattCycle 24V 100Ah LiFePO4 Battery packing list
  • WattCycle 24V 100Ah LiFePO4 Battery
  • 2 pcs WattCycle 24V 100Ah LiFePO4 Batteries
  • 3 pcs WattCycle 24V 100Ah LiFePO4 Batteries
  • 4 pcs WattCycle 24V 100Ah LiFePO4 Batteries
  • Frete grátis e local
    Frete grátis e local
  • IVA incluído
    IVA incluído
  • 5+2 anos de garantia
    5+2 anos de garantia
  • Suporte ao cliente 24 horas por dia, 7 dias por semana
    Suporte ao cliente 24 horas por dia, 7 dias por semana
Método de pagamento
  • Aceita pagamento PayPal
  • Aceita pagamento Klarna
  • Aceita Pagamento Visa
  • Aceita pagamento MasterCard
  • Aceita pagamento Shop Pay
  • Aceita pagamento American Express
  • Aceita pagamento iDeal
  • Aceita Pagamento Bancontact
  • Aceita pagamento Apple Pay
  • Aceita pagamento do Google Pay
  • Aceita Pagamento Union Pay

Bateria WattCycle 24V 100Ah LiFePO4

€419,99 EUR €479,99 EUR
Principais recursos
  • L482 x W170 x A241 mm, 18,58 kg
  • BMS de 100A, potência de saída de 2560W, energia utilizável de 2560Wh
  • Densidade energética elevada: 117,97 Wh/kg
  • Corrente máxima de descarga/carga contínua de 100 A, corrente de pico de descarga de 300 A ± 50 A em 1,2 s.
  • Suporta conexão escalável 4P2S para atingir até 20,48 kWh de energia.
  • Proteção contra desligamento por baixa temperatura
  • Certificações: IEC, CE-EMC, CE-RoHS, CE-Bateria, FCC-SDOC, UN38.3, MSDS
Ver mais
Opção
Certified Quality & Safety
CE Battery Certification
CE EMC Certification
FCC Certification
RoHS Certification
UN38.3 Certification

Special Add-Ons

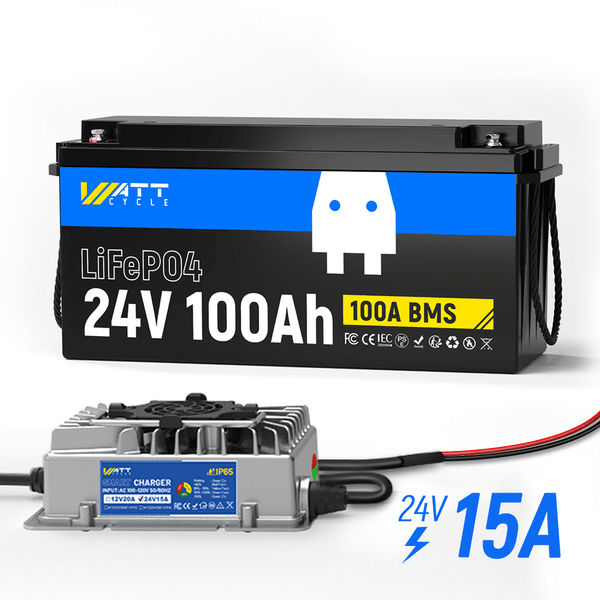

WattCycle 24V 15A Battery Charger for 24V LiFePO4 Battery​

Carregador 24V 15A

€129,99 EUR €209,99 EUR
WattCycle 500A LiFePO4 Battery Monitor with Shunt

Monitor 500A

€109,99 EUR €139,99 EUR
  • Frete grátis e rápido: Aproveite o frete grátis em seus pedidos. O tempo estimado de envio varia de acordo com o país. Mais informações sobre Política de Envio
  • Armazéns Locais Alemanha/Polônia: Os pedidos são despachados diretamente de nossos armazéns locais na Alemanha/Polônia.
  • Economia instantânea por meio de retirada local: Contate-nos para retirar em nosso armazém alemão/polonês para obter descontos exclusivos e evitar tempos de espera do correio.
  • Envio Ilhas Canárias (Espanha): Você pode comprar nossa linha completa com facilidade através do GUANXE.COM Aplicativo.

Compre com 100% de confiança. Removemos todo o risco.

  • proteção de envio xCotton: A paz de espírito está incorporada. Opte por proteção xAlgodão Na finalização da compra para proteger seu investimento contra perda, dano ou roubo.
  • Devoluções com custo zero: Se você não estiver totalmente satisfeito, devoluções e trocas são 100% GRATUITO Quando seu pedido está protegido por xAlgodão. Sem taxas ocultas, sem estresse.
  • Saiba mais sobre proteção de envio xCotton
  • Frete grátis e local
    Frete grátis e local
  • IVA incluído
    IVA incluído
  • 5+2 anos de garantia
    5+2 anos de garantia
  • Suporte ao cliente 24 horas por dia, 7 dias por semana
    Suporte ao cliente 24 horas por dia, 7 dias por semana
Método de pagamento
  • Aceita pagamento PayPal
  • Aceita pagamento Klarna
  • Aceita Pagamento Visa
  • Aceita pagamento MasterCard
  • Aceita pagamento Shop Pay
  • Aceita pagamento American Express
  • Aceita pagamento iDeal
  • Aceita Pagamento Bancontact
  • Aceita pagamento Apple Pay
  • Aceita pagamento do Google Pay
  • Aceita Pagamento Union Pay

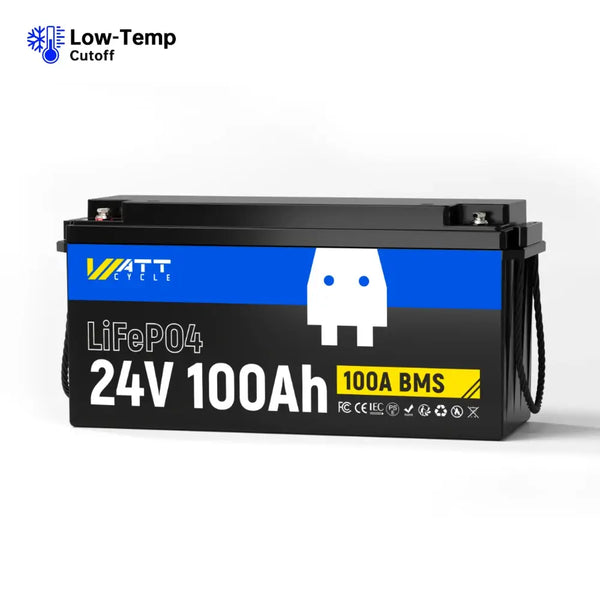

WattCycle 24V 100Ah LiFePO4 Battery
Bateria WattCycle 24V 100Ah LiFePO4
€419,99 EUR €479,99 EUR
  • 25,6V Tensão
  • 100Ah Capacidade
  • 2560W Máx. Carregar energia
  • 2560Wh Energia utilizável

Bateria WattCycle de alta energia e alta potência

Bateria de ciclo profundo WattCycle 24V 100Ah com excelente fonte de energia em modo de espera. 2560Wh A energia utilizável é mais confiável e segura em instalações e aplicações internas ou externas, como veículos recreativos, sistemas solares, embarcações, etc.

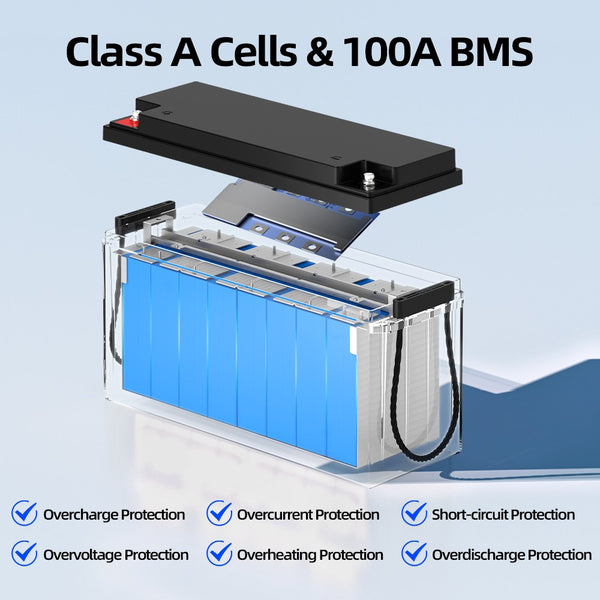

Proteção BMS 100% mais segura

Projetada com foco em confiabilidade, durabilidade e longa vida útil, a bateria WattCycle 24V 100Ah de ciclo profundo LiFePO4 utiliza células de grau A para veículos elétricos e um BMS super seguro de 100A, que proporciona mais de 5.000 ciclos com 100% de DOD e mais de 6 proteções (contra sobrecarga, descarga excessiva, sobrecorrente, sobrecarga de corrente, temperatura extrema e curto-circuito) para atender às suas necessidades de energia em ambientes internos e aprimorar suas aventuras ao ar livre.

Expansível Máx. 20,48 kWh para suas necessidades

As baterias WattCycle de 24V 100Ah suportam até 4 conexões em paralelo e 2 em série para formar um sistema de baterias de 48V (51,2V) 400Ah, fornecendo corrente contínua de carga e descarga de 400A e potência de saída contínua de 20,48 kW. Isso proporciona maior flexibilidade na hora de montar um sistema de baterias personalizado que atenda a todas as suas necessidades.

Design compacto e economia de espaço

Em comparação com 4 baterias de chumbo-ácido de 12V 100Ah ou 4 baterias WattCycle de 12V 100Ah, a bateria WattCycle de ciclo profundo LiFePO4 de 24V 100Ah com design compacto (C482 x W170 (x 241 mm de altura). É mais leve e menor, mas libera a mesma energia. A escolha ideal para todas as necessidades!

Poder Infinito

A bateria WattCycle de 24V 100Ah, com potência de saída de 2560W e energia utilizável de 2560Wh, atende a todas as suas necessidades, seja para atividades internas ou externas.

Tech Specifications

General

Battery Technology LiFePO4
Dimensions L482 x W170 x H241 mm
Weight 18,58 kg
Terminals M8 Bolts
Casing Material ABS
Waterproof Rating IP65
Self-heating No
Hazard class 9
Warranty 5 Years
Certifications IEC, CE-EMC, CE-RoHS, CE-Battery, FCC-SDOC, PSE, METI, UN38.3, MSDS

Technical Data

Nominal Voltage 25,6V
Nominal/Usable Capacity 100Ah
Energy 2560Wh
Cell Balancing No, passive balancing
Monthly Self Discharge ≤3%/Month
Series & Parallel Configurations Max. 4 in Parallel, Max. 2 in Series

BMS

BMS 100A
Max. Continuous Output Power 2560W
Overall Over-Charge Detection Voltage 29,2±0,2V
Shipping Voltage 25,6V - 29,2V
Standard Continuous Charge Current 20A (0.2C)
Max. Continuous Charge/Discharge Current 100A (1C)
Over-current Charge Protection 160A±40A
Over-current Discharge Protection 400A±50A
BMS High Temperature Cut-Off Charge: 55℃±5℃
Discharge: 65℃±5℃
BMS Low Temperature Cut-Off Charge: 0℃±5℃
Discharge: - 20℃±5℃
High Temperature Recovery Charge: 50℃±5℃
Discharge: 60℃±5℃
Low Temperature Recovery Charge: 2℃±5℃
Discharge: -15℃±5℃

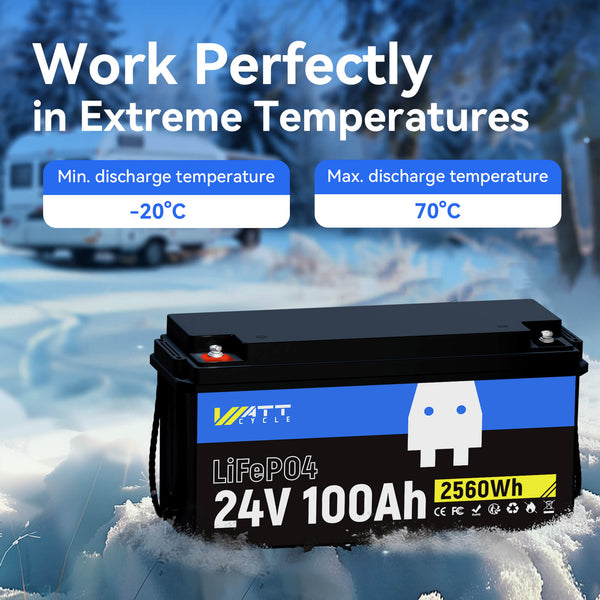

Temperature Range

Charging Temperature 0℃-55℃
Discharging Temperature -20℃-60℃
Storage Temperature 0℃-45℃

Perguntas frequentes

2560Wh! A bateria WattCycle 24V 100Ah LiFePO4 com BMS de 100A integrado fornece 2560W de potência de saída e 2560Wh de armazenamento de energia.

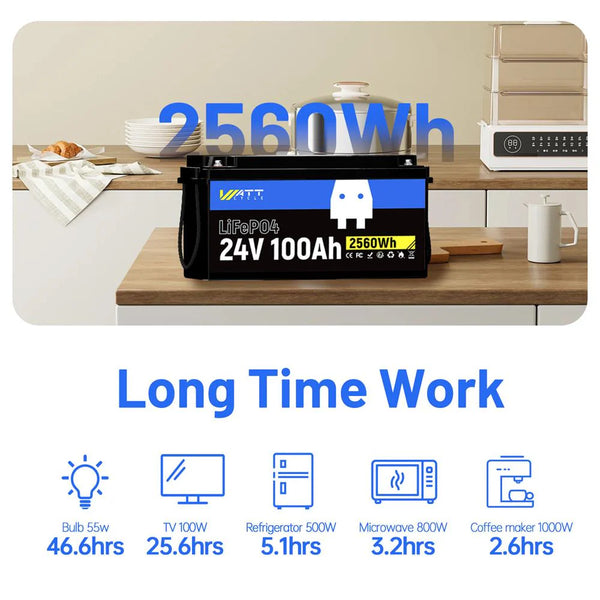

A autonomia da bateria é influenciada por diversos fatores, incluindo a capacidade da bateria, a carga conectada e o estado da bateria. Por exemplo, uma bateria nova tem um desempenho melhor do que uma usada, pois sua capacidade diminui ligeiramente com ciclos de carga repetidos. No entanto, você pode estimar a autonomia usando uma fórmula simples baseada no consumo de energia e na capacidade da bateria:

Autonomia (horas) = ​​Capacidade da bateria (Wh)/Consumo total de energia do dispositivo (W)

Exemplo:
Se você tiver uma bateria de 24V 100Ah e conectar uma lâmpada de 50W e um alto-falante de 50W, a autonomia será de:
2560Wh/(50W + 50W) = 25,6 horas

Esta fórmula simples ajuda a estimar o tempo de execução sob diferentes cargas. Para previsões mais precisas, considere sempre fatores do mundo real, como temperatura e envelhecimento da bateria.

Supondo que você esteja usando um Carregador de bateria LiFePO4 24V 15A Para carregar uma bateria solar WattCycle de 24V 100Ah, seriam necessários... aproximadamente 6,67 horas Carregar a bateria de 0% a 100%.

Com certeza! Se você usar um 800W Para carregar a bateria solar WattCycle 24V 100Ah de 0% a 100%, ela deve estar totalmente carregada. em um dia com 4,5 horas de luz solar efetiva. Portanto, um controlador de carga solar adequado é essencial para carregar corretamente a bateria de lítio.

Todas as baterias WattCycle LiFePO4 com capacidade acima de 50Ah têm garantia de 5 anos. Uma garantia adicional de 2 anos está disponível mediante solicitação. registro de garantia. A expectativa de vida útil da bateria é10 anos, e a contagem de ciclos pode atingir5.000 a 15.000 ciclos, Em comparação com apenas 300 a 500 ciclos para baterias de chumbo-ácido, a WattCycle é a sua melhor escolha em baterias para armazenamento de energia!

As baterias WattCycle 24V LiFePO4 suportam configurações versáteis, incluindo conexões em série, em paralelo e série-paralelo.É possível conectar até 2 unidades de baterias solares de 24V 100Ah em série, 4 unidades em paralelo ou 8 unidades em configurações série-paralelo. Quando 8 baterias solares são conectadas em série-paralelo, elas formam uma Sistema de bateria de 48 V (51,2 V) 400 Ah, entregando até 20,48 kWh de energia e Corrente de carga/descarga contínua de 400 A. WattCycle é a sua melhor opção em baterias para armazenamento de energia!

As temperaturas de operação recomendadas para nossa bateria de lítio de 24V 100Ah são:

  • Carregamento: 0°C a 65°C
  • Descarga: -20°C a 70°C
  • Armazenamento: 0°C a 60°C.

O Sistema de Gerenciamento de Bateria (BMS) inclui proteção contra altas e baixas temperaturas, Garantir que a bateria possa ser usada com segurança mesmo em condições adversas.
