    GET 5% OFF YOUR FIRST ORDER: Welcome!
    WattCycle 12V 314Ah Mini LiFePO4 Battery with BluetoothDimensions, size and weight of WattCycle 12V 314Ah Mini LiFePO4 Battery with Bluetooth200A BMS of WattCycle 12V 314Ah Mini Bluetooth batterySolid Structure of WattCycle 12V 314Ah Mini LiFePO4 Battery with BluetoothUpgraded Cells of WattCycle 12V 314Ah Mini LiFePO4 Battery with BluetoothInterl frame of WattCycle 12V 314Ah Mini LiFePO4 Battery with BluetoothBluetooth 5.0 to monitor the WattCycle 12V 314Ah Mini LiFePO4 Battery with BluetoothLow-temp cut-off protection of WattCycle 12V 314Ah Mini LiFePO4 Battery with BluetoothMore Power, Longer Serving Time feature of WattCycle 12V 314Ah Mini LiFePO4 Battery with BluetoothFlexible connection of 4P4S of WattCycle 12V 314Ah Mini LiFePO4 Battery with Bluetooth2 pcs of WattCycle 12V 314Ah Mini LiFePO4 Battery with Bluetooth3 pcs of WattCycle 12V 314Ah Mini LiFePO4 Battery with Bluetooth4 pcs of WattCycle 12V 314Ah Mini LiFePO4 Battery with Bluetooth

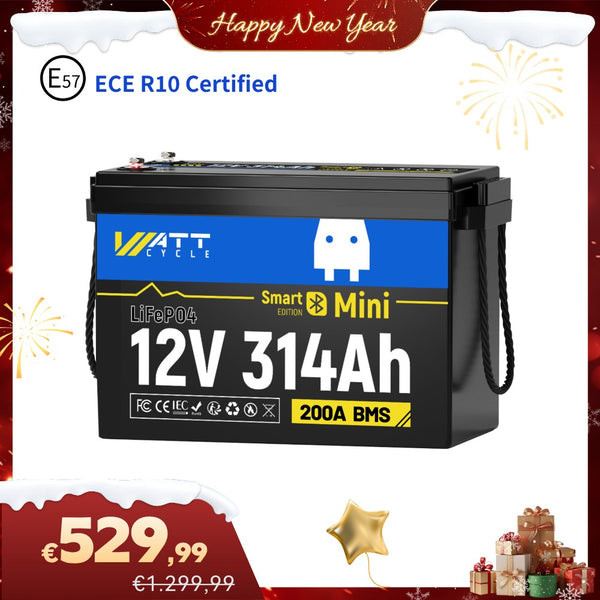

    WattCycle 12V 314Ah Mini LiFePO4 Battery with Bluetooth
    Dimensions, size and weight of WattCycle 12V 314Ah Mini LiFePO4 Battery with Bluetooth
    200A BMS of WattCycle 12V 314Ah Mini Bluetooth battery
    Solid Structure of WattCycle 12V 314Ah Mini LiFePO4 Battery with Bluetooth
    Upgraded Cells of WattCycle 12V 314Ah Mini LiFePO4 Battery with Bluetooth
    Interl frame of WattCycle 12V 314Ah Mini LiFePO4 Battery with Bluetooth
    Bluetooth 5.0 to monitor the WattCycle 12V 314Ah Mini LiFePO4 Battery with Bluetooth
    Low-temp cut-off protection of WattCycle 12V 314Ah Mini LiFePO4 Battery with Bluetooth
    More Power, Longer Serving Time feature of WattCycle 12V 314Ah Mini LiFePO4 Battery with Bluetooth
    Flexible connection of 4P4S of WattCycle 12V 314Ah Mini LiFePO4 Battery with Bluetooth
    2 pcs of WattCycle 12V 314Ah Mini LiFePO4 Battery with Bluetooth
    3 pcs of WattCycle 12V 314Ah Mini LiFePO4 Battery with Bluetooth
    4 pcs of WattCycle 12V 314Ah Mini LiFePO4 Battery with Bluetooth

    【🌟In-stock 6%, Final Price: €582,79】WattCycle 12V 314Ah Mini LiFePO4 Battery with Bluetooth

    Regular price €619,99 €639,99 | Save €20,00 (3% off)
    /
    Tax included. Fast & Free Shipping

    Expected Delivery on - .

    The 2025 Revolutionary Battery:

    With a width of 194mm, the battery can be placed sideways to fit perfectly under the seat of the motorhome.

    Key Features
    • ✔ Build with EV Grade A+ LiFePO4 cells
    • Mini Size: L384 x W194 x H248mm, 27kg, L340mm without the handles
    • ✔ 33% smaller than 3 pack of 12V 100Ah (same capacity)
    • ✔ 12% Higher Capacity than 12V 280Ah Mini Bluetooth Battery
    • ✔ High Energy Density of 148,85Wh/kg
    • ✔ 2560W Output Power, 4019Wh Usable Energy
    • ✔ 200A BMS, 200A Max. Cont. Dis-/Charge Current, 210A ± 10A 1.2s Peak Discharge Current
    • ✔ Bluetooth 5.0 to Monitor The Battery via WattCycle App in Real-time
    • ✔ Support 4P4S Connection to 64.31kWh Energy

    Notify me when available

    You have already submited form for 1 Pack (Final:€582,79)

    Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.

    Services and Benefits

    Free & Fast Shipping

    *Please see our Shipping Policy for more details.


    Hassle-Free Warranty

    *Please see our Warranty Policy for more details.


    Lifetime Customer Support 24/7

    We're always there for you, feel free to contact us via Email (service@wattcycle.com) or WhatsApp.


    Pay with Ease
    paypal visa shopify_pay apple_pay google_pay master klarna american_express bancontact ideal unionpay

    Trusted Delivery
    WattCycle Trusted delivery image
    24283030
    WattCycle 12V 314Ah Mini LiFePO4 Battery with Bluetooth

    【🌟In-stock 6%, Final Price: €582,79】WattCycle 12V 314Ah Mini LiFePO4 Battery with Bluetooth

    1 Pack (Final:€582,79) - €619,99
    • 1 Pack (Final:€582,79) - €619,99
    • 2 Pack (€577,15/each) - €1.227,99
    • 3 Pack (€571,20/each) - €1.822,99
    • 4 Pack (€565,41/each) - €2.405,99

    【🌟In-stock 6%, Final Price: €582,79】WattCycle 12V 314Ah Mini LiFePO4 Battery with Bluetooth

    Thanks for choosing WattCycle. At WattCycle, we're committed to your satisfaction with our product(s). We guarantee that all WattCycle products are strictly tested by our quality inspectors before delivery.

    We understand that there may be situations where you need to return or exchange your purchase. The following "Return & Refund Policy" applies to WattCycle products.

    Order Cancellation

    WattCycle accepts order cancellation before the product is shipped or produced. If the order is canceled, you will get a full refund via the original payment method within 10 working days (Due to delays in processing refunds from a bank).

    WattCycle cannot cancel the order if the product has already shipped out.

    Lost / Damaged Products Received

    If the product was not delivered or lost, please immediately contact us. We will inquire about the situation and send you a statement. After you sign and send us the statement, we will re-arrange the shipment of your order.

    If the product you received was damaged, or if you received an incorrect or incomplete product, please immediately contact us with proof of videos or pictures and product serial number (This number is on a sticker on the product, below the barcode.). After providing the above certificates and serial numbers, we will provide you with a solution based on the damaged or missing items.

    30-Days Money-Back Guarantee

    Within 30 days of purchase, if you are unsatisfied with the product and there are no quality issues, you are entitled to a refund upon returning the item in its complete, unused condition with original packaging intact. However, you will be responsible for covering the round-trip costs (including shipping fees and handling charges). Costs vary by country/region. Please contact us to confirm the specific costs..

    If 30 days have passed since the purchase, a full refund cannot be offered.

    Attention: For products that have been used (Unboxing), WattCycle reserves the right to refuse the return.

    Return Shipping Cost

    WattCycle Pays For Return Shipping

    WattCycle will pay for the cost of return shipping if the reason for the return was the result of our error.

    Examples of instances may include:

    Item arrived defective and cannot be fixed with a replacement part.

    We shipped out the wrong item.

    We shipped it to the wrong address.

    We shipped a duplicate order.

    Item malfunctioned during the 30 day returns period. (The customer should install and operate the item properly per the product manual instruction.)

    Attention

    For items that arrive damaged or are defective, the customer MUST provide videos or photos to support the claim that the item arrived damaged or is malfunctioning. If a customer refuses to or fails to provide videos or photos of a claimed malfunctioning/damaged item, this return will be treated as “buyer’s remorse” and the customer is solely responsible for shipping it back. Once we have received the approved returned item, we will review its condition. If the item is found to be defective, we will issue a refund within 3 working days.

    Customer Pays For Return Shipping

    In the case of a return due to customer error, return shipping is the customer’s responsibility and shipping charges are paid by the customer. Fees vary by country, please contact us for specific fees.

    Attention

    Any order offered with special shipping charges is subject to a deduction from our actual outbound shipping costs.

    After the 30-day returns period, customers may use the WattCycle Warranty Policy for repairs if the item is faulty or malfunctioning. Please refer to the WattCycle Warranty Policy for details.

    Return Item & Address

    After confirming with our customer service team that a return is possible, we will provide you with a return solution based on your order's fulfillment warehouse.

    If your order was shipped from a German warehouse, we are unable to provide a return label. You will need to contact our customer service team to obtain the return address and arrange the return yourself.

    If your order was originally shipped from a Polish warehouse, we will provide you with a return label. You simply need to take the product with the return label attached to a courier station to ship it back.

    Refund

    For non-quality-related issues and unopened packages, you will be responsible for covering the round-trip costs (including shipping fees and handling charges). Costs vary by country/region.

    For quality-related issues reported more than 30 days after the purchase date, WattCycle will provide a partial refund based on the product's usage condition.

    Refund Timeline: Once the product is returned to the WattCycle warehouse, WattCycle will process the refund within 7 business days and send you a refund confirmation notification.

    Refund Method: The refund will be issued to your original payment method and account.

    Attention

    If you do not receive the refund within 10 business days, please contact us, and we will assist you in checking the refund status.

    Disclaimer

    WattCycle does not offer refunds for the following cases:

    Discounted or promotional items.

    WattCycle products purchased through other entities (e.g., distributors or retail partners).

    Returns from a country/region different from the original shipping address of the order. If the return address differs from the original shipping location, resulting in shipping costs exceeding the initial fees, the user will be responsible for covering the additional shipping fees.

    Products showing signs of wear, use, or alterations from their original condition.

    Products damaged or lost during the return process.

    Changes to This Policy

    We reserve the right to modify this Return & Refund Policy at any time. We will post any changes to this policy on our website. We appreciate your support! If you have any questions about our shipping policy, please feel free to contact us.

    Contact

    Shenzhen Washi Energy Co., Ltd.

    Room A503, Building A, Lankun Group, Baoxin Road, Dajingshan, Buxin Community, Xin'an Street, Baoan District, Shenzhen

    FREQUENTLY BOUGHT TOGETHER

    €85,99
    €99,99

    TOTAL: €185,98

    WattCycle Revolutionary Battery, More Energy in a Compact Design

    WattCycle 12V 314Ah Mini Bluetooth lithium leisure battery​ has an internal 200A BMS(Battery Management System), which ensure a 200A(1C) continuous discharge/charge current. Made of EV-grade A+ cells, it can store 4.01kWh energy, providing enough energy during your motorhome trip.

    Why 12V 314Ah Mini Bluetooth Lithium Leisure Battery​

    Built with high-performance EV-grade A+ cells and advanced 200A BMS, it gives 4.01kWh energy and 2560W max output, delivering up to 15000 cycles. The external IP65 waterproof rating makes the battery fearless of salt environments, and the internal metal frame ensures that the battery is safe even in bumpy environments. Bluetooth 5.0 function lets you check battery status anytime & anywhere even it's "invisible" (under the seat of the motorhome.)

    Upgraded To Safer, Degigned To Be Stable & Durable

    WattCycle 12V 314Ah Mini lithium leisure battery has a unique internal design. There is a metal frame inside to enhance the stability of the battery. Built with braided flexible copper wires, it can deliver 50% more power and run 30% cooler with the aluminum colling fins.

    Worry-Free Power From Freezing Cold to Scorching Heat

    WattCycle 12V 314Ah Mini Bluetooth battery with extreme temperature protection (high and low temperature cut-off protection) keeps your essentials powered through the cold and heat. When the battery is in use, the BMS initiates protection when the temperature drops below -25°C to -15°C. When the temperature rises from 5°C to 15°C, the battery continues to discharge.

    The Ultimate Upgrade from AGM Battery

    WattCycle's flagship 12V 314Ah Mini Bluetooth lithium battery redefines portable power with its space-saving dimensions (L384 × W194 × H248mm, L340mm without the handles) and remarkably light 27kg frame. Delivering 2560W output and 4019Wh capacity, it outperforms traditional setups - replacing three bulky lead-acid batteries (87kg) that offer just 1800W/1800Wh. It's a smarter and more efficient energy solution for modern needs.

    Effortless Bluetooth Connectivity To Control Battery Smartly

    Gain complete oversight of your power system in three quick steps: Install the WattCycle App, detect your Bluetooth-enabled battery, and pair it through the interface. The App is readily available - either scan the provided QR code or locate "WattCycle" directly in the Google Play or Apple App Store.

    Scalable Power, Expand Your Energy Potential

    WattCycle 12V 314Ah Mini Bluetooth LiFePO4 battery supports Max. 4 batteries in parallel and Max. 4 batteries in series (4P4S). 16 pcs WattCycle 12V 314Ah Mini Bluetooth LiFePO4 batteries can form a 48V 1256Ah battery system, providing up to 64.31kWh energy to power your motohomr trip or sailing journey. The modular design lets you start small and expand as your power needs grow, making it perfect for weekend campers and full-time off-grid dwellers alike.

    Power for Sustainable Adventures

    For true energy independence, connect multiple WattCycle 12V 314Ah Mini lithium batteries to create a massive 64.31kWh power bank. This scalable system is ideal for extended motorhome trips, marine excursions, and off-grid living situations - providing reliable electricity for appliances, navigation systems, and essential devices wherever your journey takes you.

    PRODUCT DESCRIPTION

    Space-Saving Power Solution: Measuring just L384×W194×H248 mm and weighing a mere 27kg, WattCycle 12V 314Ah LiFePO4 battery offers unparalleled portability for sail, motorhome, and off-grid applications, outperforming bulkier alternatives in its class.

    High-performance EV Grade A+ Cells: WattCycle 12V 314Ah Mini LiFePO4 battery is made of high-performance EV Grade A+ cells, which ensures it a long-lasting, up to 15000+ cycles@60% DoD battery in your caravan trip.

    Unique Solid Internal Structure: The WattCycle 12V 314Ah LiFePO4 Battery stands up to harsh conditions thanks to its unique full-aluminum internal frame,which not only reinforces the cell structure but also integrates cooling fins that improve heat dissipation by 30%.

    Revolutionary Capacity Upgrade: Compared with our 12V 280Ah Mini Bluetooth model, the new 12V 314Ah battery packs 15% higher energy density and a 12% capacity bump—ending your energy anxiety once and for all.

    Wireless Battery Management with Bluetooth: The integrated Bluetooth module enables real-time tracking of SOC, voltage, current, and temperature via our dedicated app - no extra equipment is required for complete system oversight.

    Comprehensive Power Protection: A robust 200A BMS safeguards against overcharge, overcharge, over current, short circuit, and temperature extremes while maintaining 200A continuous power flow for demanding applications.

    TECH SPECIFICATIONS

    • Technology LiFePO4 Technology
    • Nominal Voltage 12,8V
    • Standard Charging Voltage 14,6V ± 0,2V
    • Nominal/Usable Capacity 314Ah
    • Max. Continuous Output Power 2560W
    • Energy 4019Wh
    • Battery Dimensions L384 x W194 x H248 mm
    • Weight 27 kg
    • Waterproof Rating IP65
    • Warranty 5 Years
    • Casing Material ABS (Flame-Retardant Plastic) + PC / UL 94 V-0
    • Series & Parallel Configurations Max. 4 in Parallel, Max. 4 in Series
    • BMS 200A
    • Standard Continuous Charge Current 62.8A (0.2C)
    • Max. Continuous Charge/Discharge Current 200A (1C)
    • Over-current Charge Protection 210A ± 10A
    • Over-current Discharge Protection 210A ± 10A
    • Short Circuit Protection Yes
    • Release Condition Cut-Off Load
    • Overheat Protection During Charging 60℃ – 70℃
    • Overheat Protection During Discharging 65℃ – 75℃
    • Overheat Protection Release Condition Drops to 5℃ – 15℃
    • Low-Temperature Protection During Charging -5℃ – 5℃
    • Low-Temperature Protection During Discharging -25℃ – -15℃
    • Low-Temperature Protection Release Condition Rises to 5℃ – 15℃
    • Charging Temperature 0℃ – 65℃
    • Discharging Temperature -20℃ – 70℃
    • Storage Temperature 0℃ – 60℃
    • Cell Balancing Yes, passive balancing

    FAQ's

    Do I have to buy a special charger for LiFePO4 batteries?

    We recommend using a WattCycle LiFePO4 battery charger, which is specifically designed to meet the unique charging needs of LiFePO4 batteries. Alternatively, you can also charge the battery using photovoltaic solar panels through MPPT or use an inverter with a built-in AC to DC charging function.

    Are WattCycle 12V 314Ah LiFePO4 batteries safe?

    Absolutely. LiFePO4 is the most stable lithium chemistry on the market. WattCycle cells are UL-certified and housed in an IP65-rated case. Our internal BMS guards against:

    • Over Charge & Over Discharge
    • Under Voltage & Over Voltage
    • Over Current & Short Circuits
    • High Temperature
    • Low-temperature Cut-off
    Can I charge WattCycle LiFePO4 lithium batteries with solar panels?

    Yes—our 12V 314Ah LiFePO4 Battery is designed for seamless solar charging. Simply pair it with an MPPT charge controller and a 1.200W PV array to top up in one sunny day (≈4.5 hrs of peak sun).

    Optimal Setup: A 1.200W solar panel bank feeding an MPPT regulator ensures efficient charging of your 12V 314Ah solar battery.

    Charge Profile: MPPT controllers adjust voltage/current to maintain the ideal 14,2V – 14,6V range, protecting cell health and maximizing cycle life.

    Scalable: Whether you’re building out 12V 314Ah batteries for solar panels in parallel or keeping it simple with one pack, the WattCycle system adapts—no special wiring or firmware tweaks required.

    How to store LiFePO4 batteries?

    1. Recommended Storage Conditions

    • To achieve optimal storage results, LiFePO4 batteries should be kept in a cool, dry place.
    • Ideal Storage Temperature: 15°C – 25°C.
      Humidity: Keep humidity as low as possible to avoid moisture buildup.

    2. Recommended Charge Level During Storage
    LiFePO4 batteries should be stored at a partial state of charge (SOC) between 50% and 80%.

    Why Avoid Full Charge/Discharge?

    • Storing the battery fully charged or fully discharged can stress the cells and lead to gradual capacity loss over time.
    • A partial charge helps preserve battery health during storage.

    Additional Tips:

    • Check Periodically: If storing for extended periods (>3 months), check the SOC every 3–6 months and recharge to 50–80% if needed.
    • Avoid Extreme Temperatures: Never store in freezing (<0°C) or excessively hot (>60°C) environments.
    What maintenance does the battery require?

    Zero maintenance—no watering or equalizing. Just install, register your 7-year warranty, and enjoy consistent, long-lasting power for years to come.

    CUSTOMER REVIEWS

    Customer Reviews

    Be the first to write a review
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)

    USER MANUAL

    BATTERY COMPARISON

    Parameter 12V 200Ah 12V 300Ah Mini 12V 280Ah Mini Bluetooth 12V 314Ah Mini Bluetooth
    Size L483 x W170 x H240mm L384 x W194 x H248mm L384 x W194 x H248mm L384 x W194 x H248mm
    Weight 20.5kg 27kg 27kg 27kg
    BMS 200A 200A 200A 200A
    Usable Energy 2560Wh 3584Wh 3584Wh 4019Wh
    Max Output Power 2560W 2560W 2560W 2560W
    Bluetooth × ×
    Peak Discharge Current 600A ± 50A @ 1.2S 600A ± 50A @ 1.2S 210A ± 10A @ 1.2S 210A ± 10A @ 1.2S
    Max. Cont. Charge Current 200A 200A 200A 200A
    Max. Cont. Discharge Current 200A 200A 200A 200A
