- 1 Pack - €255,99

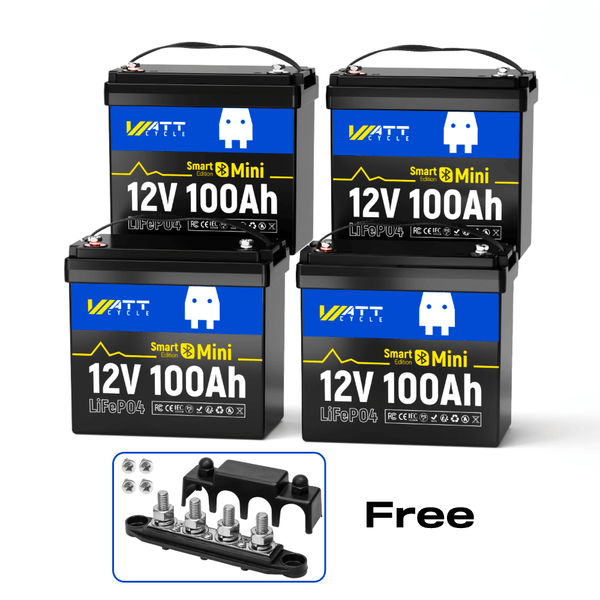

- 👍 2 Pack (€253.43/each) - €506,99

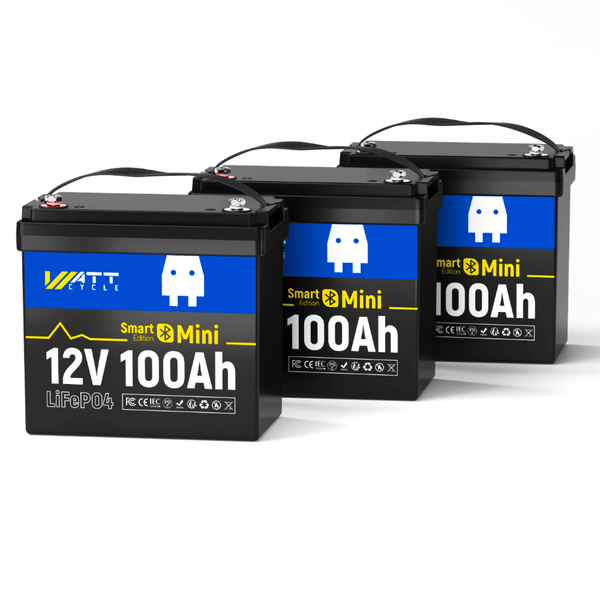

- 3 Pack (€250.87/each) - €752,99

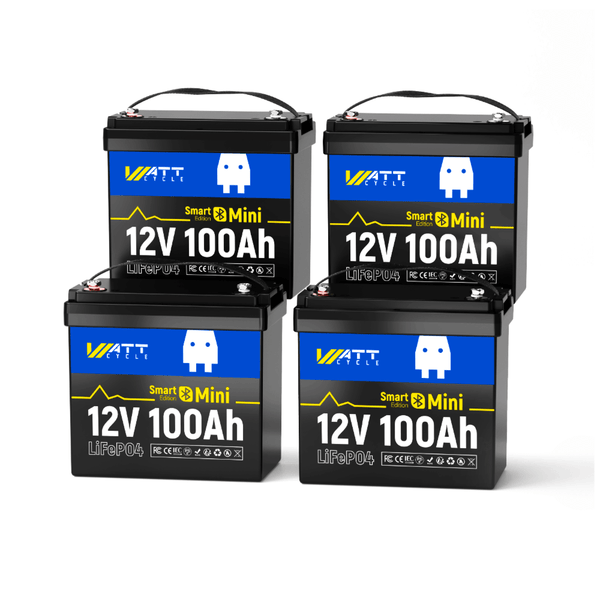

- 4 Pack (€248.31/each) - €993,99

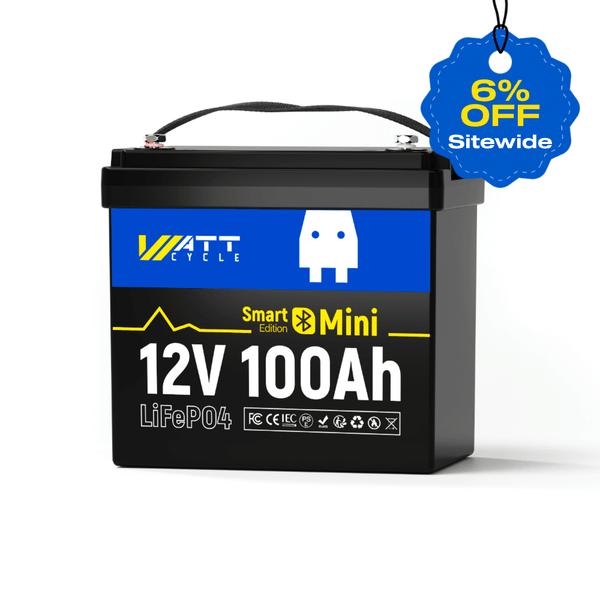

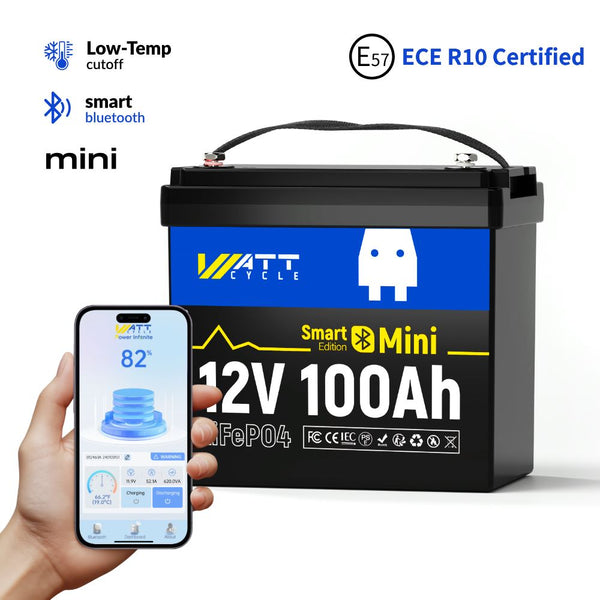

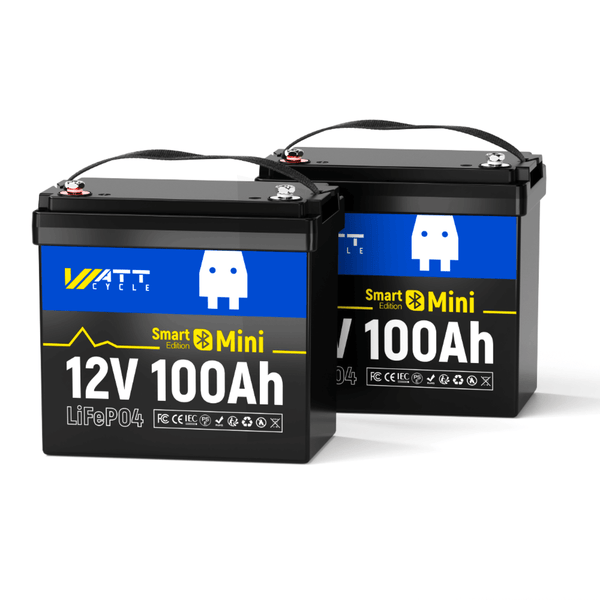

12V 100Ah Mini Smart LiFePO4 Battery Tech Specs
General
Technology | LiFePO4-Technology |
Battery Cells | EV Grade A+ 3.2V 100Ah LiFePO4 Cells |
Cycle Life | 5000+ cycles @100% DOD, 6000+ cycles @80% DOD, 15000+ cycles @40% DOD |
Rated Voltage | 12.8V |
Rated/Usable Capacity | 100Ah |
Max. Continuous Output Power | 1280W |
Energy | 1280Wh |
Shipping Voltage | 12.8V - 13.5V |
Shipping Capacity | 50% |
Dimension | L229 x W138 x H208 mm |
Weight | 9.5 kg |
Waterproof Rating | IP65 |
Warranty | 5 years (The warranty can be extended to 7 years after registering on the official website.) |
Housing Material | ABS (Flame Retardant Plastic) + PC / UL 94 V-0 |
Terminal | M8 bolts (16mm x 12 mm) |
Battery Pack Certification | IEC62133, RoHS, CE, FCC, UN38.3, Class9 |
Battery Cells Certification | UL1642, UL2580, UN38.3 |

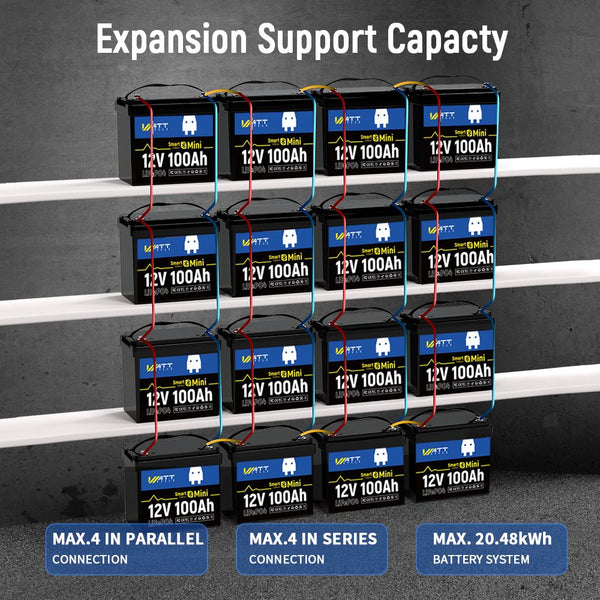

Series & Parallel Connections | Max. 4 Parallel, Max. 4 Series |

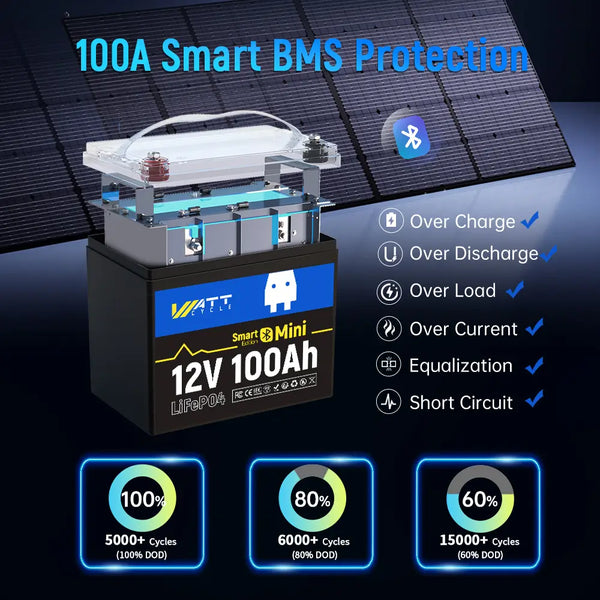

Safe Battery BMS
BMS | 100A |

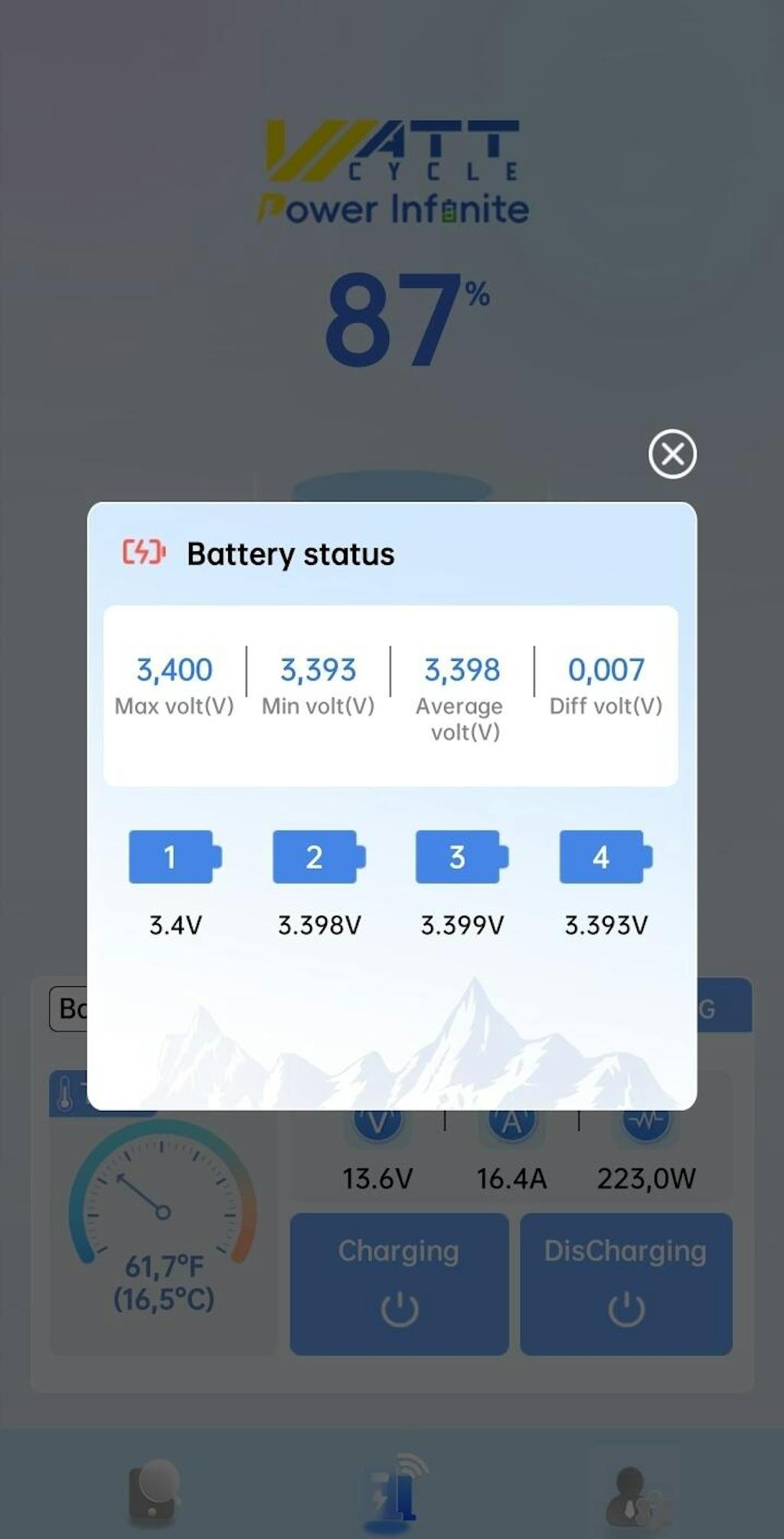

Communication | Support |

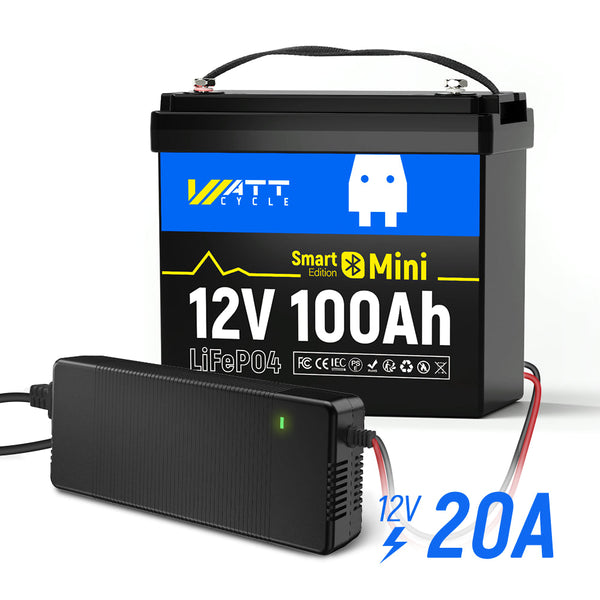

Standard Continuous Charge Current | 20A (0.2C) |
Maximum Continuous Charge Current | 100A (1C) |
Max. Continuous Discharge Current | 100A |
Over-current Discharge Protection | 300A ± 50A |
Over-current Charge Protection | 130A ± 30A |
Short-circuit Protection | Yes |
Release Condition | Cut Load |
Charging High Temperature Protection | 60℃ - 70℃ |
Discharge High Temperature Protection | 65℃ - 75℃ |
High Temperature Protection Release Condition | Drop by 5℃ - 15℃ |
Charging Low Temperature Protection | -5℃ - 5℃ |
Discharge Low Temperature Protection | -25℃ - 15℃ |
Low Temperature Protection Release Condition | Rise by 5℃ - 15℃ |
Temperature
Charge Temperature | -5℃ - 70℃ |
Discharge Temperature | -25℃ - 75℃ |
Storage Temperature | 0℃ - 60℃ |
