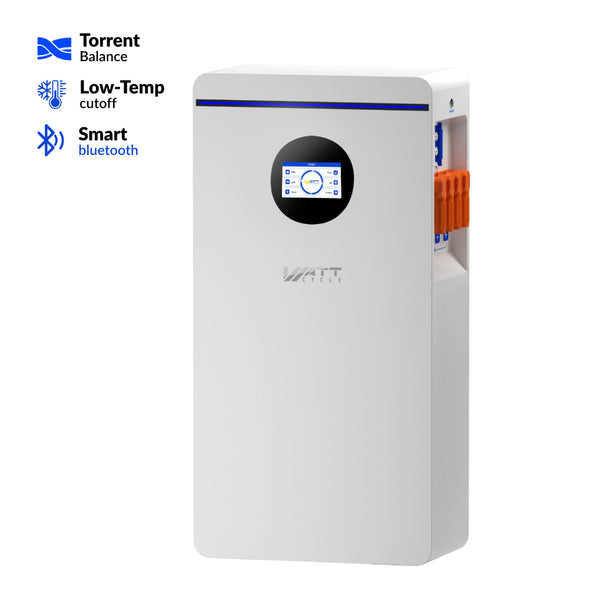

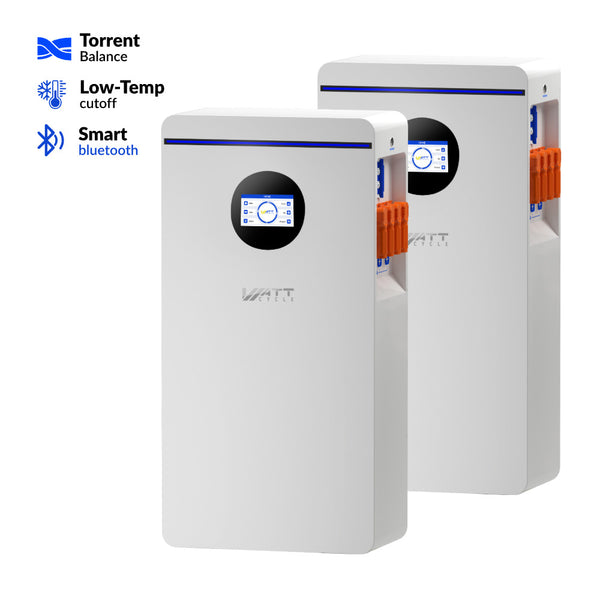

WattCycle 48V 314Ah LiFePO4 Solar Battery with Active Balance & Bluetooth

€1.899,99 EUR€3.599,99 EUR

Store 16.07kWh of Solar Energy in One Battery

16kWh usable energy in one battery to power your devices for one week
Slim 450 × 240 × 989mm vertical enclosure with 110kg
EV-grade LiFePO4 cells for long-term reliability
3A active balancing extends lifespan and improves efficiency
Up to 15 years of service life with 6000+ deep cycles
300A smart BMS with 20+ protection functions
CAN, RS485 and RS232 inverter communication
Compatible with multi-brand inverters: Victron, Deye, Pylon, etc
Bluetooth + LCD touchscreen + LED strip for real-time monitoring

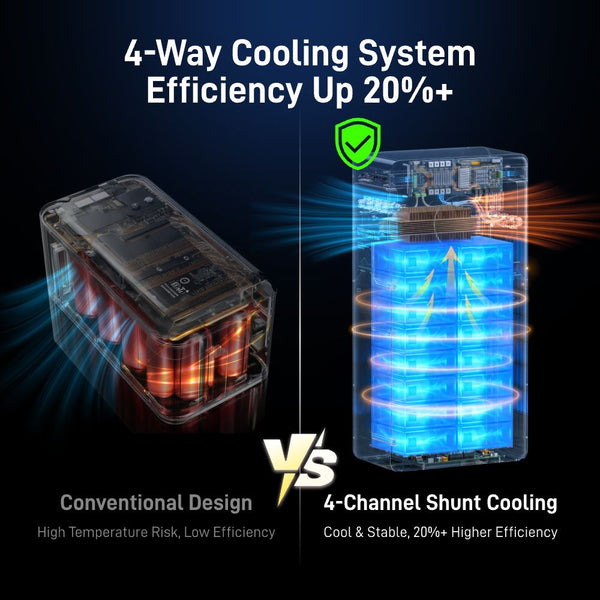

Improved heat dissipation design (+20%) for safer operation
Supports up to 15 batteries in parallel

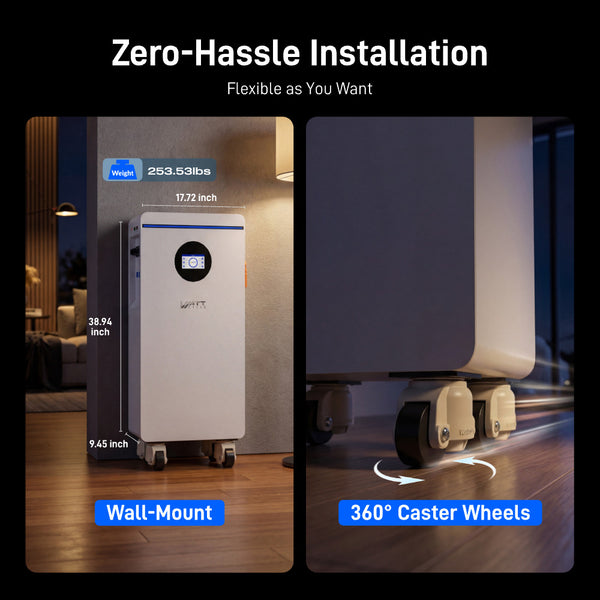

360° caster wheels for easier positioning and servicing
Flexible installation for home, off-grid, and commercial use

Options

1 Pack (16.07 kWh) 2 Pack (32.15 kWh) 3 Pack (48.23 kWh) 4 Pack (64.30 kWh)

Free & Fast Shipping: Enjoy free shipping on your orders. The estimated shipping time varies by country. More information on Shipping Policy
Germany/Poland Local Warehouses: Orders are dispatched directly from our Local Germany/Poland Warehouses.
Instant Savings via Local Pickup: Contact us to pick up at our German/Polish warehouse for exclusive savings and avoid courier wait times.
Canary Islands (Spain) Shipping: You can shop our full range with ease via the GUANXE.COM App.

Shop with 100% confidence. We’ve removed all the risk.

xCotton Shipping Protection: Peace of mind is built in. Opt for xCotton Protection at checkout to safeguard your investment against loss, damage, or theft.
Zero-Cost Returns: If you aren’t completely satisfied, returns and exchanges are 100% FREE when your order is protected by xCotton. No hidden fees, no stress.
Learn more about xCotton Shipping Protection

Free & Local Shipping
VAT Included
5+5 Years Warranty
24/7 Customer Support

Payment Method

WattCycle 48V 314Ah LiFePO4 Solar Battery with Active Balance & Bluetooth

€1.899,99 EUR

€3.599,99 EUR

Feature
Tech Specs
Package Content
Documents
Compatible Inverters
Faqs
Videos
Reviews

Store 16.08kWh of Solar Energy in One Battery

The WattCycle 48V 314Ah LiFePO4 Solar Battery combines 51.2V, 314Ah and 16.08kWh of energy in one high-capacity battery for residential solar storage. Store surplus rooftop PV generation during the day and use the stored energy later for evening consumption, backup power or off-grid applications.

16.08kWh Capacity in a Space-Saving Vertical Design

Despite storing 16.08kWh, the battery measures only 450 × 240 × 989mm, giving it a narrow 240mm depth that helps reduce installation footprint. Four positive and four negative terminals support flexible system wiring, while integrated 360° caster wheels make the 110kg battery easier to position during installation and servicing.

15+ BMS Protections with CAN, RS485 and RS232

The 300A smart BMS provides more than 15 layers of battery protection, including over-charge, over-discharge, over-current, short-circuit and temperature protection. CAN, RS485 and RS232 communication protocols support integration with compatible inverter systems from brands including Deye, Growatt, Victron, GoodWe, SolaX, Sofar and others.

300A BMS Supports Up to 15.36kW DC Power

With a 51.2V voltage and 300A BMS, the battery supports a calculated maximum of approximately 15.36kW DC output, giving compatible inverter systems substantial power for demanding household loads. Combined with 16.08kWh of stored energy, one battery can form the core of a high-capacity solar, backup or off-grid power system.

Can the 48V 314Ah Battery Power Your Appliances?

Enter the wattage of the appliances you plan to run at the same time. We'll check the combined load and estimate how long one WattCycle 48V 314Ah battery can keep them powered.

⚡

16,076.8Wh

16.08kWh Battery Capacity

51.2V 314Ah 300A BMS 15,360W Max Continuous Load

Enter Your Appliance Wattage

Device 1

Device 2

Estimated Runtime

— hrs

Enter your appliance wattage to calculate runtime.

Waiting for your load

Total Load 0 W

Max Continuous Load 15,360 W

0% of continuous load limit

Need more power?

Your required load exceeds the 15,360W continuous load limit of one 48V 314Ah battery.

Please contact our technical support team for help designing a suitable battery system:
support.eu@wattcycle.com

Contact Support

Runtime estimates assume approximately 90% inverter efficiency. Actual runtime may vary depending on inverter efficiency, appliance startup surge, battery temperature, battery condition and operating environment. The maximum AC appliance load may also be limited by your inverter's output rating.

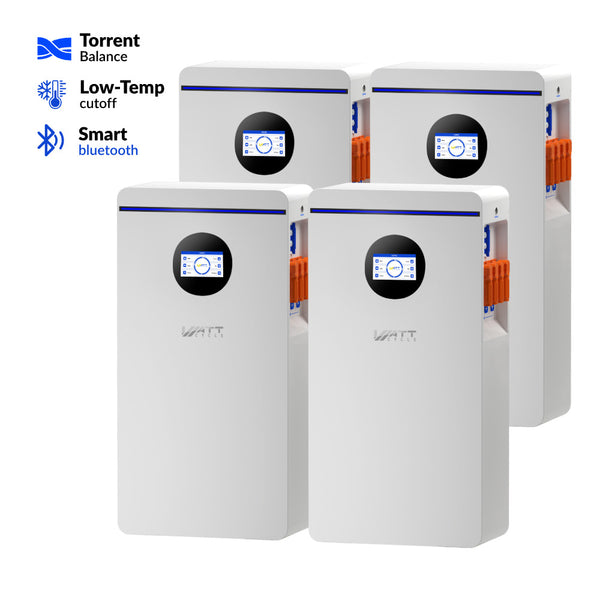

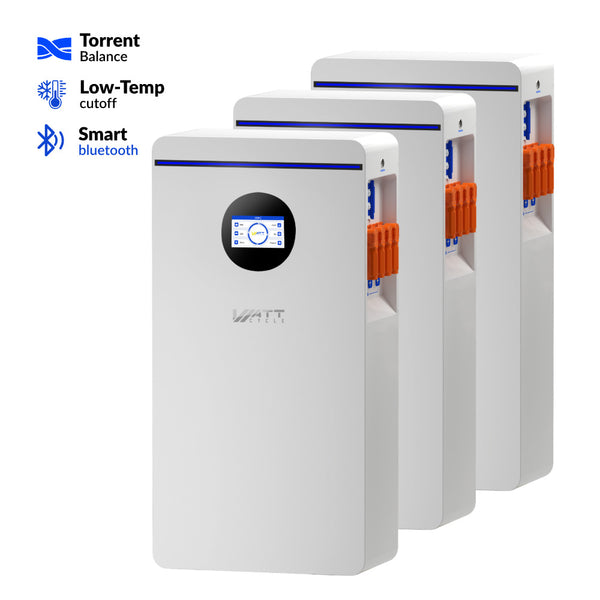

Scale from 16.08kWh to 241.15kWh

Start with a single 16.08kWh battery and expand the system as your energy requirements grow. Up to 15 WattCycle 48V 314Ah batteries can be connected in parallel, creating a maximum system of 4710Ah and approximately 241.15kWh while maintaining the same 51.2V nominal system voltage.

3A Active Balancing for Healthier Cells Over Time

The built-in 3A active balancer transfers energy between cells to reduce voltage differences and maintain better cell consistency during repeated charge and discharge cycles. Compared with passive balancing, active balancing manages cell imbalance more efficiently, helping the battery pack maintain a healthier and more consistent operating condition over long-term use.

See How Long Your Solar Battery Takes to Pay Back

A 16.08kWh home battery can store surplus solar energy for use later, potentially reducing the amount of electricity purchased from the grid.

48V 314Ah SOLAR + STORAGE CALCULATOR

Estimate Your Solar Savings & Battery Payback

See how much solar electricity your home could use directly, how much surplus energy a WattCycle 48V 314Ah battery could store, and how much additional value battery storage could create each year.

Your Home & Solar System

Annual Household Electricity Use

kWh/yr

Your household's total electricity consumption in one year.

Solar PV System Size

kWp

Total rated capacity of your solar panels.

Estimated Annual PV Yield

kWh/kWp

Estimated annual solar production per installed kWp. Check your local PV yield with PVGIS

PV System Efficiency

If your PVGIS result already includes system losses, leave this at 100%.

Solar Used Directly

Estimated share of solar electricity used immediately by your home before battery storage. If unsure, 50% can be used as an illustrative starting point.

Grid Electricity Purchase Price

€/kWh

What you normally pay for electricity from the grid.

Solar Export / Feed-in Price

€/kWh

What your provider pays for surplus electricity exported to the grid. Enter 0 if you receive no export payment.

Number of 48V 314Ah Batteries

Each battery provides 16.0768 kWh nominal storage.

Estimated Battery Round-trip Efficiency

Estimated share of energy recovered after charging and discharging.

Battery System Investment

€

Enter the battery-related cost you want included in the payback calculation.

WattCycle 48V 314Ah Storage System

1 Battery

Total Storage

16.08 kWh

Capacity Per Battery

16.0768 kWh

Battery

51.2V 314Ah

Total Annual Solar Benefit With Battery

€0 /yr

Includes avoided grid electricity costs plus estimated feed-in income from any solar electricity still exported.

Additional Annual Savings Created by Battery Storage

+€0 /yr

Estimated Battery Payback

— enter battery investment

Estimated PV Generation —

Solar Used Directly —

Solar Surplus Before Battery —

Stored & Used Later —

Solar Exported After Battery —

Benefit Without Battery —

Benefit With Battery —

Annual Household Demand Covered by Solar 0%

How This Estimate Is Calculated

This calculator provides simplified annual estimates for illustration only. It does not perform an hourly solar-production and household-load simulation. Actual battery utilization, solar self-consumption, export volume and financial savings vary by season, location, weather, roof orientation, shading, household load profile, inverter configuration, charging strategy, electricity tariffs and system operating conditions. Battery round-trip efficiency is an adjustable modelling assumption and should not be interpreted as a guaranteed product specification.

Three Ways to Monitor Your 16.08kWh Home Battery

Monitor the battery through the WattCycle Bluetooth App, integrated LCD touchscreen and LED status strip. The system gives you convenient access to battery information including state of charge, voltage, current, temperature and operating status, whether checking locally or from your smartphone.

Store More Solar Energy, Rely Less on Fossil Fuels

The WattCycle 48V 314Ah solar battery stores 16.08kWh of energy, allowing more electricity generated by rooftop solar panels to be saved for later use instead of being wasted or immediately exported. By increasing the use of renewable solar energy and reducing dependence on electricity generated from coal, oil and natural gas, battery storage can support a cleaner, lower-carbon home energy system.

Installation Accessories Included for Easier System Integration

The package includes the 16.08kWh battery, wall-mount hardware, communication cable, red and black 70mm² × 1.2m power cables, a 450A fuse and the installation accessories shown. These components simplify connection to an appropriately designed compatible home solar or energy-storage system.

Tech Specifications

Model	48V 100Ah Smart Home Storage	48V 314Ah Smart Home Storage	48V 628Ah Smart Home Storage
Battery Mode	LiFePO4 Battery
Battery Energy	5.12kWh	16.07kWh	32.15kWh
Internal Resistance	≤ 13.9mΩ
Single Cell Capacity	100Ah	314Ah	628Ah
Rated Operating Voltage	51.2V
Standard Input Current	50A (Max.100A)	150A (Max.300A)	150A (Max.300A)
Standard Output Current	50A (Max.100A)	150A (Max.300A)	150A (Max.300A)
Overcharge Protection	58.4V
Overcharge Protection Recovery	53.6V
Overdischarge Protection	40V
Overdischarge Protection Recovery	47.2V
Charging Overcurrent Protection	110±10A / 1±0.5s	310±10A / 1±0.5s	310±10A / 1±0.5s
Discharging Overcurrent Protection	110±10A / 9–12s	310±10A / 9–12s	310±10A / 9–12s
Internal Resistance Recovery Methods	a. Remove the Charger; b. Remove Loads
Power Delivery	60%
Equalization	Active Balance
Parallel Quantity	Manual DIP Switch Setting: ≤15 units
Power Failure Self-Consumption	≤300µA
Battery Life	6000 Cycles @ 80% DoD
Communication Protocol	RS485, CAN, RS232
Recommended Charging Temperature	0°C to 55°C
Recommended Discharging Temperature	-20°C to 60°C
Dimensions (L × W × H)	398 × 200 × 625 mm	450 × 240 × 989 mm	700 × 250 × 1082 mm
Weight	47.50 kg ±3%	110.00 kg ±3%	220 kg ±5%

Package Content

1 x 48V 314Ah Home Battery
1 x User Manual
Wall-mount Bracket
L-shaped Wall Brackets
Wall-mount Bracket Screws
M6 Screws
Expansion Screws
Communication Cable
Red Power Cable
Black Power Cable
450A Fuse

Downloads

Compatible Inverters

Inverter Brands	Communication Ports
Afore	CAN
Aiswei	CAN
Aohai	RS485
Deye	CAN
GOODWE	CAN
GROWATT	RS485/CAN
GT	RS485
Hoymiles	CAN
INVT	CAN
LUXPOWER	CAN
MEGAREVO	CAN
MUST	CAN
MUST	RS485
NEXT	232
PYLON TECH	RS485/CAN
SAJ	CAN
SAKO	RS485
Sacolar	RS485
Senergy	CAN
SMA	CAN
SOFAR	CAN
SOLAX	RS485/CAN
Solis	CAN
SOROTEC	CAN
SRNE	RS485
Studer	CAN
Sumry	RS485
SUYEEGO	RS485
TBB	CAN
Techfine	RS485
VICTRON	CAN
Voltronic	RS485

Frequently Asked Questions

Active balancing is a cell management technique that moves charge from higher-voltage cells to lower-voltage cells, keeping every cell in the pack at a similar state of charge instead of simply shedding excess energy as heat. So your battery won't get hot as soon as you start using it, like before.

At a continuous 3A rate, this balancing is strong enough to correct cell drift during normal use and to support higher, safer charge currents.

Practically, active balancing means you retain more usable capacity over the life of the battery pack, accept faster and fuller charging without hitting early cutoffs, and experience slower capacity fade so the system delivers steady performance year after year.

Without active balancing, individual cells drift to different States of Charge (SoC) over repeated cycles, which means the battery’s usable energy is effectively capped by the weakest cell; that mismatch forces earlier charge or discharge cutoffs, limits safe charge rates, reduces usable capacity, and accelerates overall ageing.

If the balancing switch is on, balancing will begin when the maximum cell voltage differential in the battery pack exceeds this value and will end when it falls below this value.

For example, if you set the balancing start voltage differential to 10mv and the balancing stop voltage differential to 5mV, balancing will begin when the cell voltage differential exceeds 10mV and end when it falls below 5mV.

The recommended balancing start voltage differential is 0.005V for cells over 50Ah, and 0.01V for cells under 50Ah.

When the lowest cell voltage is below the set value of 2000mV, active balancing will not begin, even if the cell voltage differential exceeds the set value. The balancing current represents the continuous current used to discharge the high-voltage battery and charge the low-voltage battery during energy transfer. The maximum balancing current represents the maximum current during energy transfer, which does not exceed 3A.

The difference between 1A, 2A, and 3A active balance lies in the maximum current (amperage) they can use to transfer energy between battery cells.

In essence, a higher amperage rating means the active balancer can correct imbalances more quickly and handle larger cell capacities more effectively. All types use non-dissipative energy transfer methods, meaning they are more efficient and generate less heat compared to passive balancing systems.

1. Main
The main interface displays the function options, including battery pack information, cell voltage, temperature, BMS alarm status, charge and discharge curve chart, settings and system information.

2. Pack
View the current system voltage, current, SOC, maximum and minimum cell voltage, temperature, balance switch and status, charge and discharge MOS status of the battery pack.

3. Cells
Check the voltage and temperature of the battery cell.

4. Alarm
Battery alarm, fault and abnormal information display to help engineers quickly analyze faults.

5. Chart
Display the voltage, current and SOC curve of the battery pack during operation.

6. Set
Set the communication protocol between the battery pack and the inverter, and the display language.

7. Product Information
Display the internal model and software version of the battery pack.

1. Cell Overcharge Protection and Recovery
When the voltage of any cell is higher than the set value of the cell overcharge voltage, and the time of duration reaches the cell overcharge delay, the system enters the overcharge protection state, the charging MOS will turn off, and the battery cannot be charged.After the cell overcharge protection, when the voltage of all cells drops below the cell overcharge recovery value, the overcharge protection state is released. It can also be released by discharge.

2. Overall Overcharge Protection and Recovery
When the overall voltage is higher than the overall over-voltage set value, and the time of duration reaches the overall overcharge delay, the system enters the overcharge protection state, turns off the charging MOS, and cannot charge the battery.When the overall voltage drops below the recovery value of the overall over-voltage protection, the overcharge protection state is released, and it can also be released by discharge.

This 48V 314Ah LiFePO4 solar battery performs excellently with active balance and Bluetooth features. Customers said it "works perfectly" with "massive construction" quality. Fast delivery praised. One concern: the battery's heavy weight may require depot pickup rather than home delivery in some cases.

5 stars: 36 (84%)
4 stars: 7 (16%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

Some of the reviews shown are from related products the merchant grouped with this one.

1 Pack (5.12kWh)

Working fine, minimizing Grid import.

I have used this battery for 2 weeks with a VEVOR Hybrid Solar Inverter, 6000W (EM6200-48L) and 3,6 kW solar panel. The communication with inverter and the optimal parameter setting/testing took a week. Finally the AGM mode via RS485 - VOLTRONIC and max. charging current=50A provide the expected operation. On sunny days the battery exceeds 100% SOC and provide enough energy until midnight by 1 kW average Load. On timely changing cloudy days (PV input 300-3000 kW) the battery discharge real-time provide the missing Load energy, so the Grid usage=0.

Integrazione consigliatissima ed economica

Ho acquistato la batteria solare a rack 48v e l'ho collegata alla power station Ecoflow delta 3 da 1 KW con il cavo arrivato in omaggio da wattcyle, ringrazio infinitamente Wattcycle, il tutto inserito nel mio camper come da foto. Soluzione eccezionale, ora ho una autonomia eccezionale ed un funzionamento veramente integrato ad un prezzo complessivo molto basso, La power Station Ecoflow riceve la carica da un pannello solare sopra il camper, 370W a pieno sole, che cosi carica il tutto.. L'installazione è stata valutata con attenzione per inserirla e fissarla in sicurezza, ammortizzata senza urti nel camper.

1 Pack (5.12kWh)

Great product!

Works perfectly! Even better than expected😃
I am definitely going to order another one soon.

1 Pack

Super content aussi bien du produit que du service après vente

Super content aussi bien du produit que du service après vente. J'ai pris une batterie plug and play 10kw tout est configurable ! Bravo a vous !

1 Pack

Très bon

Très bon fonctionnement

1 Pack

Thank you for the new modern charging station

Thank you for the new modern charging station. It is made with high quality. I bought it exclusively as an energy storage device for my own consumption, but the ability to receive and give electricity to an external power grid requires professional attention.

1 Pack (5.12kWh)

Fungerar perfekt

Fungerar perfekt.

1 Pack (5.12kWh)

It works perfectly

It works perfectly. Very essy to connect and start it.

1 Pack (5.12kWh)

Excellent

Excellent. It provides a superior alternative to conventional work batteries.

1 Pack (16.07 kWh)

Super batterie et livraison

Super batterie et livraison rapide

1 Pack (16.07 kWh)

A készülék tökéletesen működik

A készülék tökéletesen működik. Masszív kivitelezés. Egy negatívum. A futár nem tudta háznál lerakni, mert nagy a tömege. Ezért nekem kellett menni a depoba átvenni, és utánfutóval hazavinni a csomagot.

1 Pack (5.12kWh)

All

All ok

Awesome buy

1 Pack (5.12kWh)

Too mean with the cables which is one of the

Too mean with the cables which is one of the reasons I no longer buy Bluetti products

2 Pack (10.24kWh)

These are awesome

These are awesome and looking at getting 2 more of these

Integrazione consigliatissima ed economica

Very😊

Very😊

Main delivery was fast..🤗. Cables 2pcs still coming. More information about delivery time schedules and contents needs.
It was quite amazing to see batteries on my parking site when no information arriving to country not exist. But all is quite okay. 8/10 now without cables delivery.

1 Pack (16.07 kWh)

Doet wat het moet doen prima

Doet wat het moet doen prima accu

Dělá přesně to co má

Dělá přesně to co má......super balancování 👍

1 Pack (5.12kWh)

I’ ll buy again when you have offers or it’s Black Friday because it’s a very good battery

I’ ll buy again when you have offers or it’s Black Friday because it’s a very good battery.Thank’s!!!

1 Pack (5.12kWh)

good

good

Sehr gute Batterie

Perfekte Qualit?t und hohe Kapazit?t (5120 Wh, die tats?chlich komplett nutzbar sind).

Ausgezeichnete Batterie, seri?ses Unternehmen

Ich teste die Batterie seit etwa einer Woche und kann bereits sagen, dass ich sehr zufrieden bin. Sie arbeitet absolut ger?uschlos und wurde in einer sehr stabilen, gut gepolsterten Verpackung geliefert.

Die Batterie verh?lt sich genau nach Handbuch �C selbst bei hoher Last (1,5/2 kW Spitze) zeigt sie keine unerwarteten Spannungseinbr��che (wie es sich f��r eine gute LiFePO4-Batterie geh?rt).

Die 5 kWh Kapazit?t wirken absolut realistisch. Jetzt, wo die W?rmepumpe nachts kaum l?uft, komme ich problemlos bis zum Morgen.

Zuvor hatte ich 16 AGM-Batterien... das ist ��berhaupt kein Vergleich.
Ausgezeichnetes Produkt, sehr zu empfehlen!

L?ste unser Problem mit Lastspitzenentgelten

Meine Solar-Firma hat f��r einen Gewerbekunden 8 Einheiten installiert. Die 100% Entladetiefe und die Lebensdauer von 6000 Zyklen haben die Konkurrenz deklassiert. Die Lastspitzenentgelte des Kunden sind um 65 % gesunken! Die Installation war werkzeugfrei �C die Module passten einfach in Standard-Racks. Der Kundendienst hat sogar remote dabei geholfen, die BMS-Einstellungen anzupassen. Absolut empfehlenswert f��r gewerbliche Anwendungen.

Bisher durchaus zufrieden

Der Akku hat alles, was unbedingt n?tig ist, und das in guter Qualit?t. Der Speicher arbeitet sehr gut. Diesen Akku werde ich auf jeden Fall bei der Planung meiner Solaranlage ber��cksichtigen.
