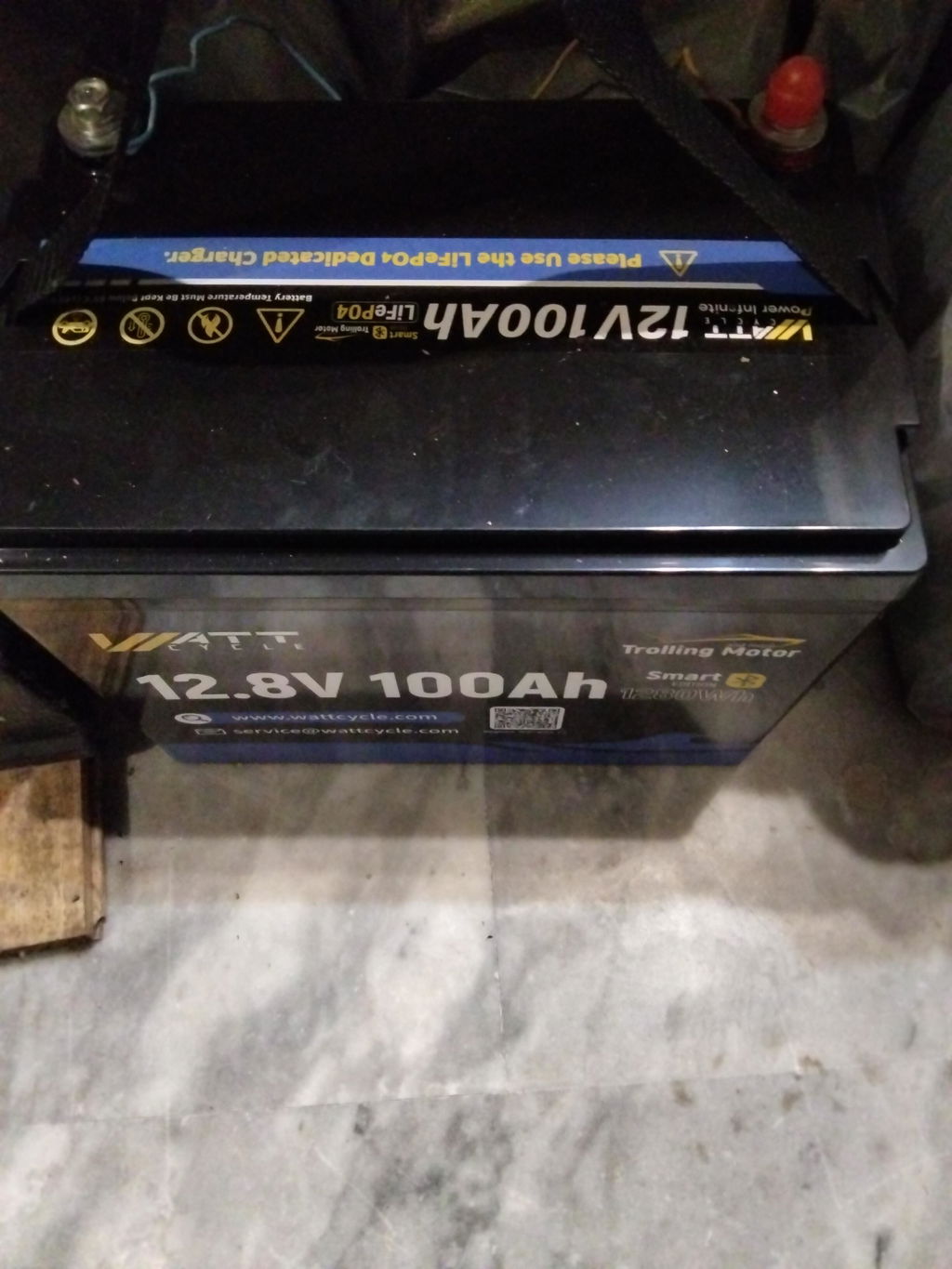

Bought this plus the extension cable to add to my portable power station. I have regular power outages, one of which recently caused my fridge/freezer to be off for several days while I was away. With this new battery added, the fridge will stay powered when the grid goes down & there's enough energy for approx 6 days. The price was excellent value, free & fast delivery, & the packaging was really solid. I travel frequently so am already considering getting another one to connect my internet, security system, & other devices to ensure I can remotely monitor & keep my whole house powered during cyclone season.
-
Free & Local Shipping
-
VAT Included
-
5+2 Years Warranty
-
24/7 Customer Support
WattCycle 12V 314Ah Campervan Leisure Battery with Self Heating | ECE R10 Certified
- ECE R10 (E57*10R06/03*2316) certified
- Underseat size (L320 x W290 x H190 mm) with 30.75kg lightweight
- Massive 4,019 Wh of energy for 2–3 days off-grid travel
- Protected by the self-heating function in winter
- Password protection with WattCycle App
- Bluetooth 5.0 monitoring
- 250A BMS to support 250A Max. continuous discharge current; 260 A ± 40 A peak (1.2 s)
- Anti-swelling battery cell design with integrated three-layer protective support
- Metal casing protects the battery from rough roads
- Removable top cover to check inside easily
- Ideal for use with 3000W–3500W inverters
- Expandable up to 4P4S to achieve 64.30kWh usable energy
- Portable underseat design for Fiat Ducato, Citroen Jumper, Peugeot Boxer, and Ford
- IEC62619, CE EMC, CE RoHS, CE Battery, UN38.3, ECE R10
-
Free & Local Shipping
-
VAT Included
-
5+2 Years Warranty
-
24/7 Customer Support
Built for European Campervans. Ready for Every Journey.
Purpose-built for Fiat Ducato, Citroën Jumper, Peugeot Boxer and Ford Transit camper conversions, the WattCycle 12V 314Ah Caravan Leisure Battery combines high energy capacity, intelligent battery management and a compact seat-base design. Whether you're touring across Europe, camping off-grid or travelling through winter, it delivers dependable power.
High Power Meets Intelligent Protection
High-demand appliances place significant stress on a battery. A robust 250A BMS which supports continuous loads up to 3,200W helps ensure stable power delivery while protecting both the battery and connected equipment.
Self-Heating for Four-Season Adventures
Cold temperatures can prevent LiFePO4 batteries from accepting a charge. WattCycle 12V 314Ah Caravan Leisure Battery has internal heating pads, bringing the battery to an appropriate charging condition before charging begins, reducing interruptions during winter adventures. This feature supports safer winter operation during skiing trips, mountain camping and cold-season travel.
Engineered for Rough Roads
Whether you're driving through mountain passes, gravel roads or long-distance European tours, the reinforced construction is designed for demanding campervan environments. A durable metal case provides additional protection against impacts and everyday use. The internal metal frame helps maintain internal structural stability and minimise cell swelling over long-term use. Removable handles and top cover (fixed by screws) ensure more flexibility during the journey.
More Energy. Better Fit. Easier Installation.
Many high-capacity lithium batteries become too tall for European campervan seat bases, and lead-acid batteries provide only half usable energy while taking more space. The 12V 314Ah Caravan Leisure Battery was designed differently. It fits under many European campervan seats perfectly to save valuable storage space on your trip.
Power Your Everyday Campervan Essentials
A single battery with 4019Wh usable energy can typically support 2–3 days of off-grid camping (depending on your energy consumption), making it ideal for weekend escapes and longer European road trips. Instead of worrying about campsite hook-ups, you can enjoy the freedom to power the appliances you use every day.
Designed for Life Beyond the Campsite
This 12V 314Ah battery supports configurations of up to 4 batteries in parallel and 4 in series (4P4S), for a total usable energy of 64.30 kWh. Regardless of how your energy grows, your battery system can grow with you straightforwardly.
It can be used not only in campervan living but also provides reliable off-grid electricity without relying on campsite hook-ups.
Tech Specifications
General
| Battery Technology | LiFePO4 |
| Dimensions | L320 x W290 x H190mm |
| Weight | 30.75kg |
| Terminals | M8 Bolts |
| Casing Material | Metal Casing |
| Self-heating | Yes |
| Waterproof Rating | IP21 |
| Certifications | ECE R10, IEC, FCC, CE-EMC, UN 38.3 |
| Hazard class | 9 |
| Warranty | 5 Years |
Technical Data
| Nominal Voltage | 12,8V |
| Nominal/Usable Capacity | 314Ah |
| Energy | 4019Wh |
| Cell Balancing | Passive balancing |
| Bluetooth | Yes, Bluetooth 5.0 |
| Monthly Self Discharge | ≤3%/Month |
| Series & Parallel Configurations | Max. 4 in Parallel, Max. 4 in Series |
BMS
| BMS | 250A |
| Max. Continuous Output Power | 3200W |
| Overall Over-Charge Detection Voltage | 14,4±0,2V |
| Overall Over-Discharge Detection Voltage | 10±0,2V |
| Standard Continuous Charge Current | 62.8A (0.2C) |
| Max. Continuous Charge/Discharge Current | 250A (1C) |
| 1st Discharge Over-Current | 260A±40A @ 10±2s |
| 2nd Discharge Over-Current | 333A±100A @ 1~2s |
| BMS High Temperature Cut-Off | Charge: 55℃±5℃ Discharge: 65℃±5℃ |
| BMS Low Temperature Cut-Off | Charge: 0℃±5℃ Discharge: - 20℃±5℃ |
| High Temperature Recovery | Charge: 50℃±5℃ Discharge: 60℃±5℃ |
| Low Temperature Recovery | Charge: 2℃±5℃ Discharge: -15℃±5℃ |
Temperature Range
| Charging Temperature | 0℃-55℃ |
| Discharging Temperature | -20℃-60℃ |
| Storage Temperature | 0℃-45℃ |
| Heating Module Activation Condition (During Charging) | <-5℃ |
| Heating Module Deactivation Condition (During Charging) | >10℃ |
Downloads
Join the Wattcycle community
Yes! LiFePO4 batteries are among the most stable lithium batteries on the market. WattCycle LiFePO4 batteries use high-quality Grade-A LiFePO4 cells and are equipped with an integrated battery management system (BMS) that provides protection against overload, overvoltage, extreme temperatures (including deep discharge protection), and much more. All WattCycle batteries undergo rigorous testing before shipment and have certifications such as CE, RoHS, and UN38.3. Buy with confidence now!
Yes. The WattCycle DISCOVER 12V 314Ah Caravan Leisure Battery features a Bluetooth interface with password protection, allowing you to monitor the battery status and manage additional functions.
Using the WattCycle App, you can monitor the following data (for reference only; actual data may vary depending on the app version): status, temperature, voltage, current, and individual cell voltages.
You can also control the charging and discharging processes of the battery directly via the app.
Yes. The battery features Bluetooth connectivity and works with the WattCycle App, allowing you to monitor key battery information in real time from your smartphone.
You can check the basic parameters like voltage, current, power, or temperature. The WattCycle App also supports modifying the parameters by yourself. But keep in mind that always contact us first to confirm if the parameter can be changed for safe use.
Yes. Our 250A BMS protects against charging or discharging in unsafe temperatures.
- Charge cutoff: 0 °C – 45 °C
- Discharge cutoff: –20 °C – 60 °C
We recommend using a WattCycle LiFePO4 battery charger, which is specifically designed to meet the unique charging needs of LiFePO4 batteries. Alternatively, you can also charge the battery using photovoltaic solar panels through MPPT or use an inverter with a built-in AC to DC charging function.
No, this battery cannot start the car. However, it can be used as an auxiliary battery for the car.
Yes. The housing of the WattCycle 12V 314Ah Caravan Leisure Battery is removable.
However, please note: If you make any unauthorised modifications to the internal structure of the battery without consulting customer service, and this leads to an incident, WattCycle will accept no liability, and the warranty will be void.
