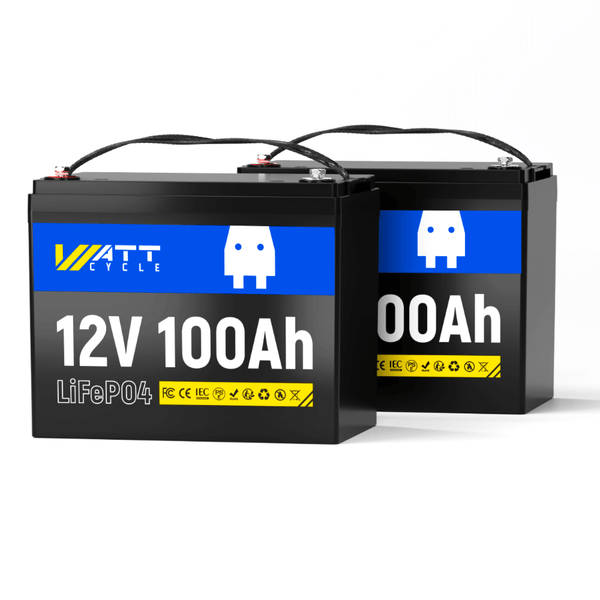

- 1 Pack - €187,99
- 2 Pack (€186.11/each) - €372,22

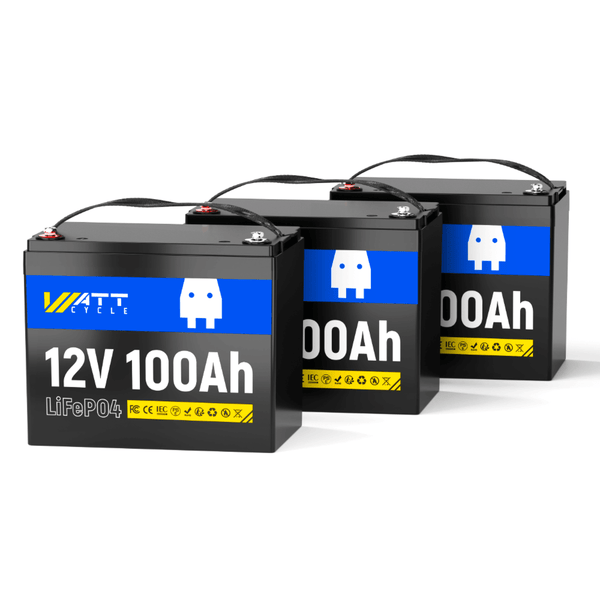

- 3 Pack (€184.23/each) - €552,69

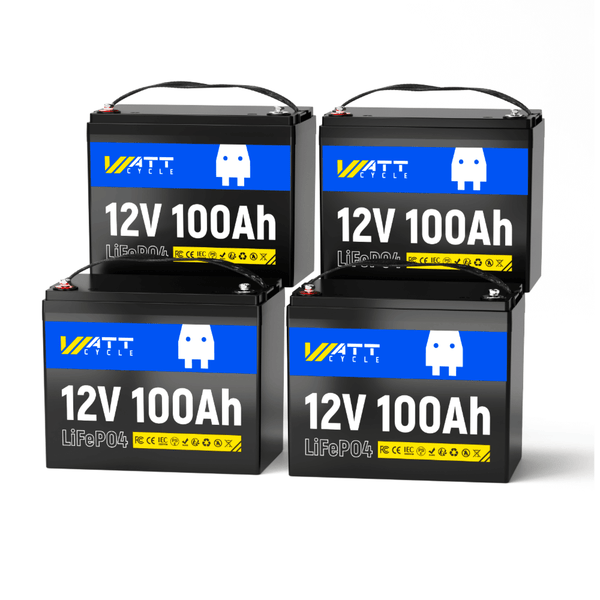

- 4 Pack (€182.35/each) - €729,40
WattCycle Deep Cycle Battery: Only Grade A+ Cells
Grade A+ cells typically refer to battery units that incorporate high-quality, high-performance cells. Specifically. These cells often exhibit the following characteristics and benefits:
1) High Energy Density
2) Long Cycle Life
3) High Safety Standards
4) Stable Performance

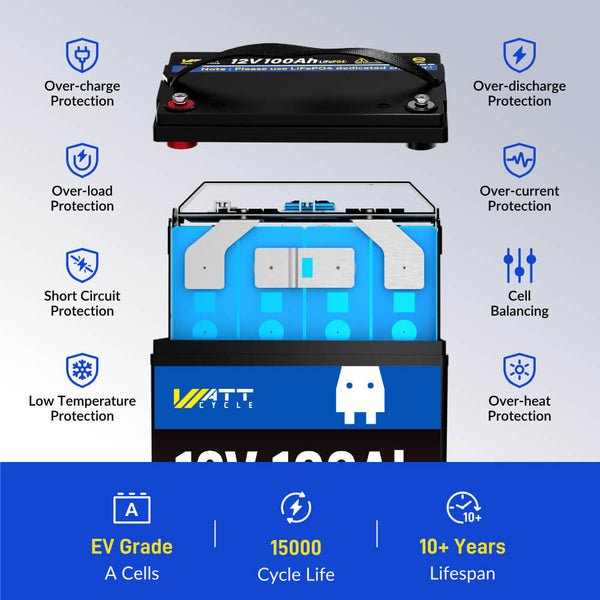

WattCycle Battery Safety: Intelligent BMS
Battery Management System: A crucial component in lithium-ion batteries and other rechargeable batteries, responsible for monitoring and managing the battery's performance.
8X Safety Protection: Over-current/Over-charge/Over-discharge/Over-load/High Temperature/Low Temperature/Short Circuit/Equalization Protection

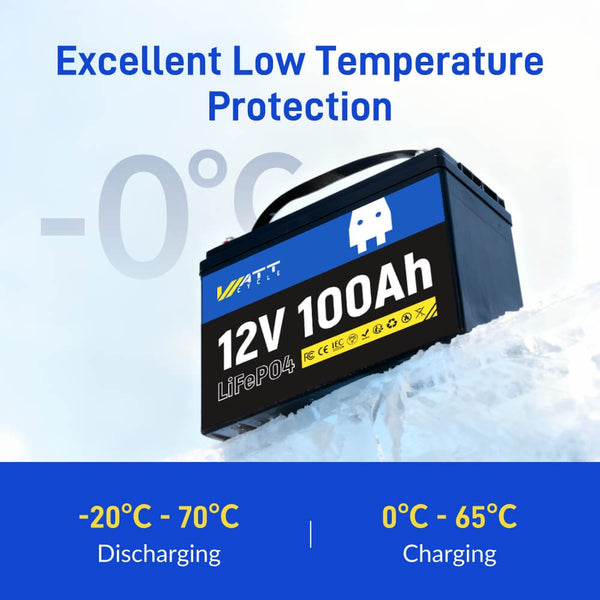

Working as Usual in Extreme Weathers
Charge Temperature: 0℃ to 50℃ / 32℉ to 122℉
Discharge Temperature: -20℃ to 70℃ / -4℉ to 158℉

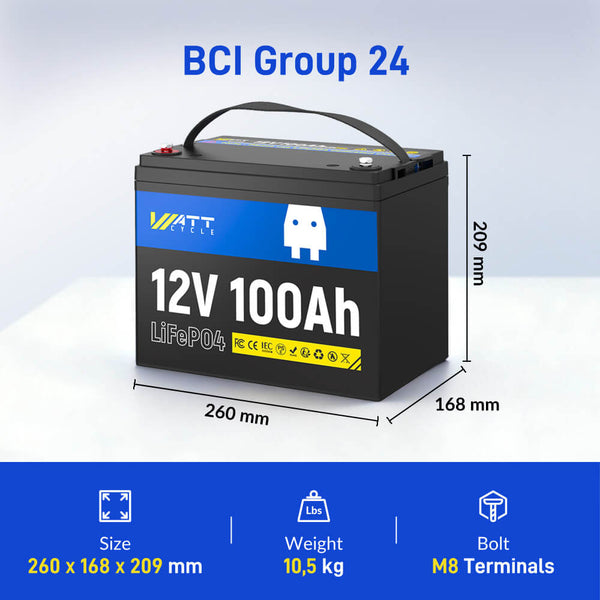

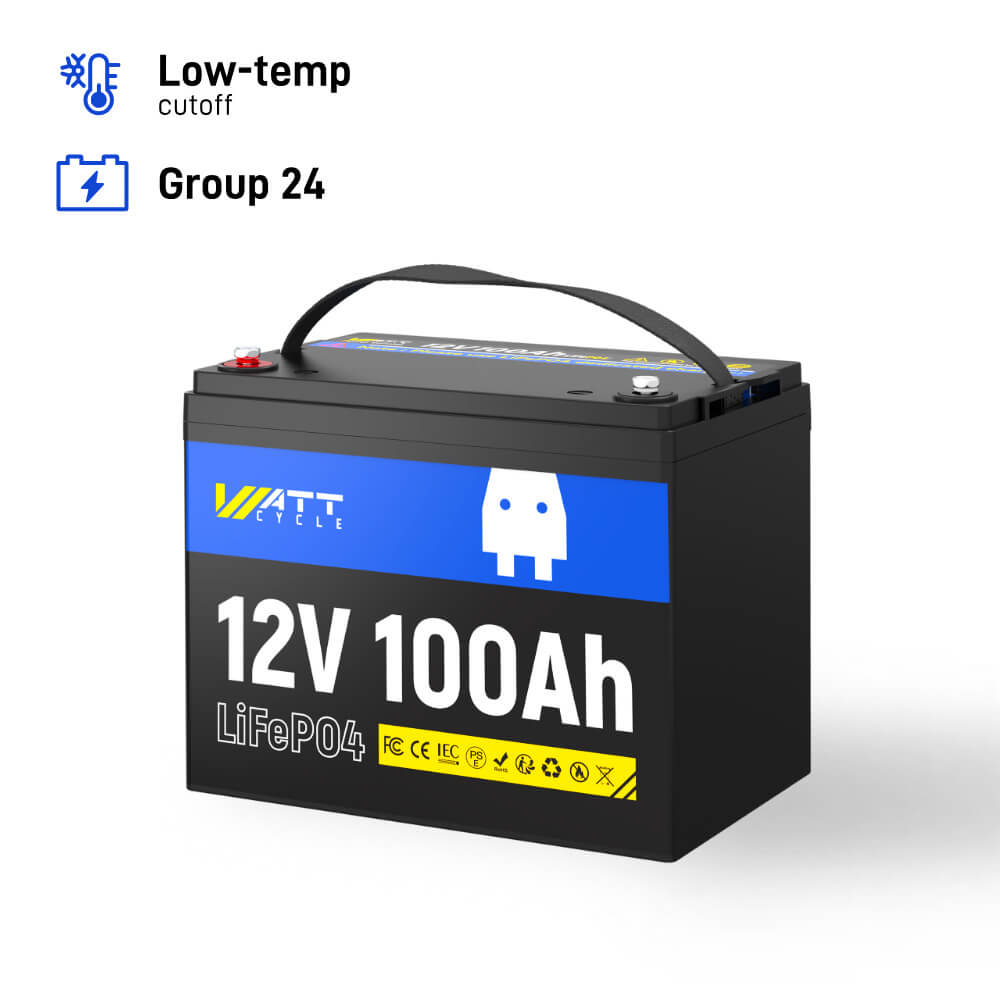

Group 24 Size, Universal Fit
Typical dimensions for a Group 24 battery:
Length: 10.25 inches (260 mm)
Width: 6.8125 inches (173 mm)
Height: 8.875 inches (225 mm)
Please double-check the specific dimensions provided by WattCycle to ensure a perfect fit, as slight variations can occur.

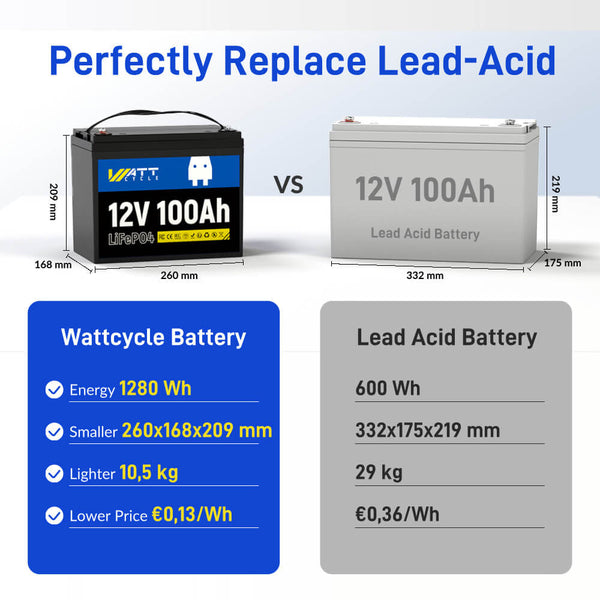

Lighter, Smaller & More Energy
62~69% Lighter | 27% Smaller | 178~247% Energy Increases

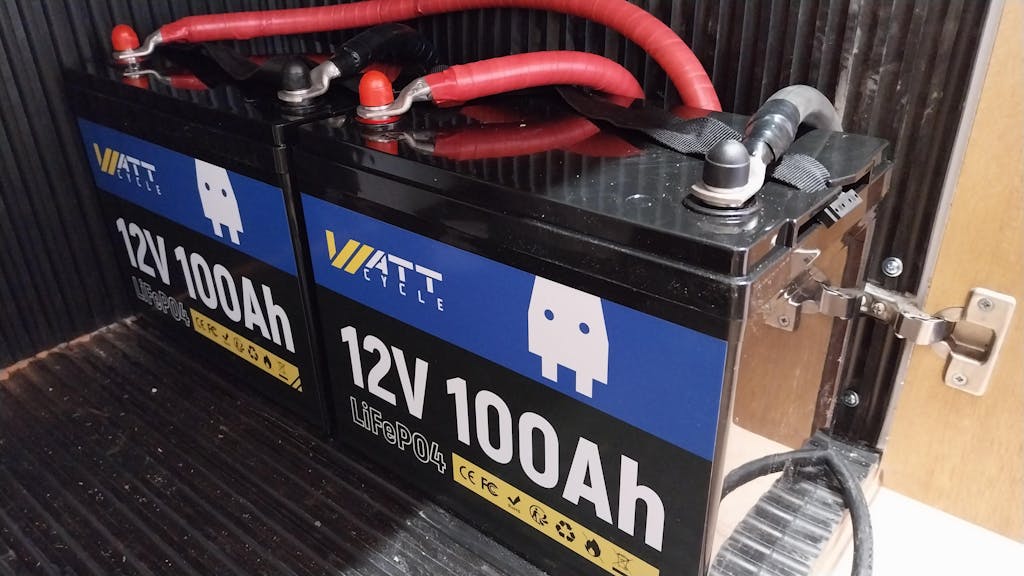

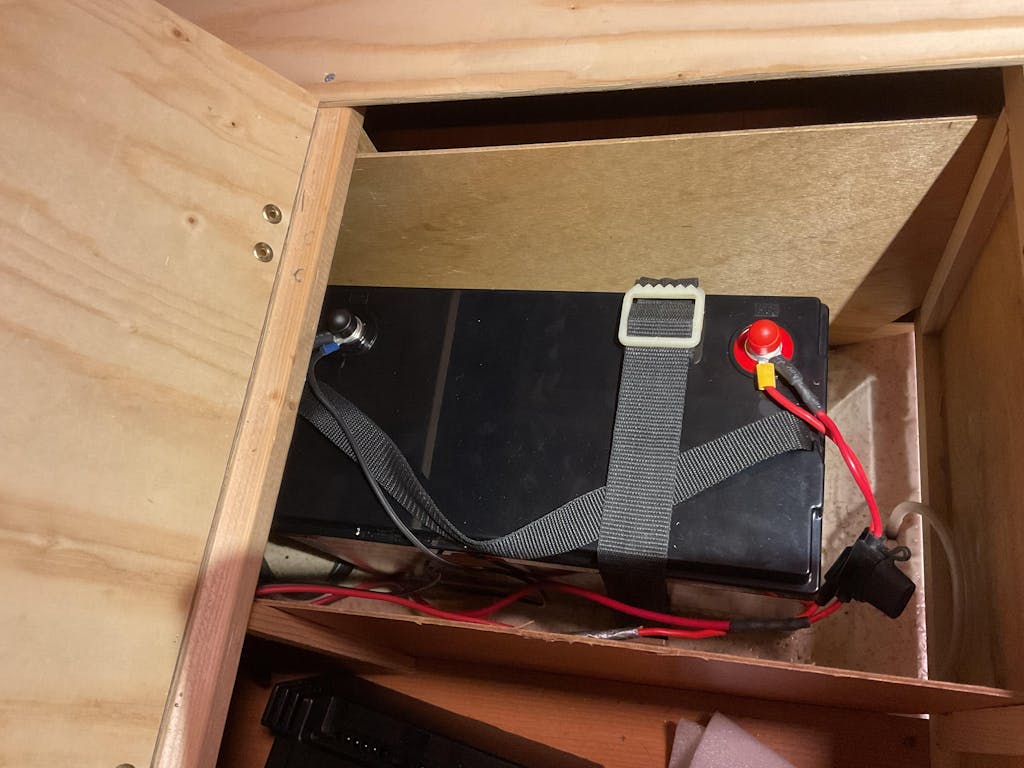

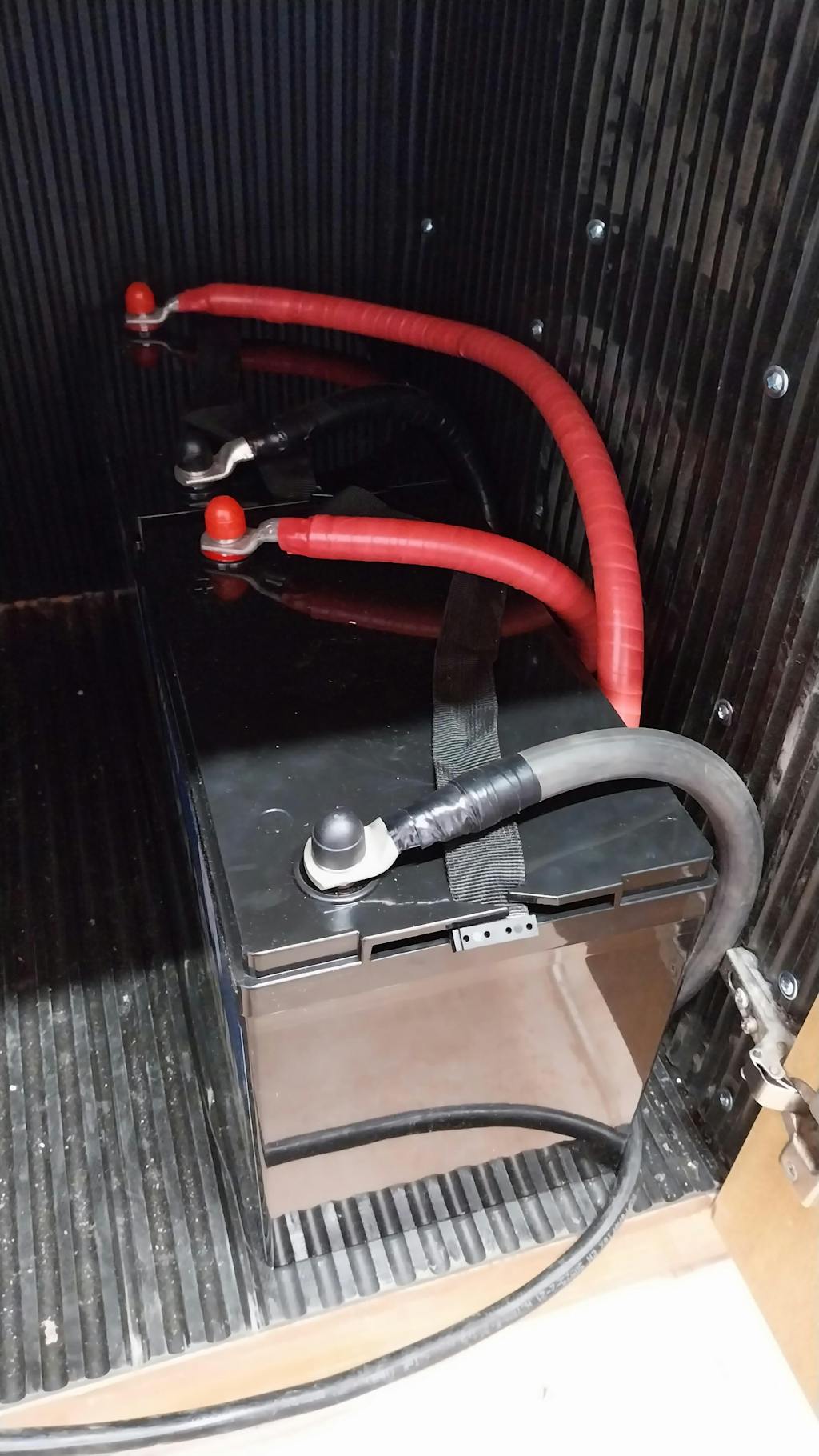

Application 1: RV System
Application 2: Home Storage
12V 100Ah Deep Cycle LiFePO4 Battery Tech Specs
General
Technology | LiFePO4-Technology |
Battery Cells | EV Grade A+ 3.2V 100Ah LiFePO4 Cells |
Cycle Life | 5000+ cycles @100% DOD, 6000+ cycles @80% DOD, 15000+ cycles @40% DOD |
Rated Voltage | 12.8V |
Rated/Usable Capacity | 100Ah |
Max. Continuous Output Power | 1280W |
Energy | 1280Wh |
Shipping Voltage | 12.8V - 13.5V |
Shipping Capacity | 50% |
Dimension | L260 x W168 x H209 mm |
Weight | 10.5 kg |
Waterproof Rating | IP65 |
Warranty | 5 years (The warranty can be extended to 7 years after registering on the official website.) |
Housing Material | ABS (Flame Retardant Plastic) + PC / UL 94 V-0 |
Terminal | M8 bolts (16mm x 12 mm) |
Battery Pack Certification | IEC62133, RoHS, CE, FCC, UN38.3, Class9 |
Battery Cells Certification | UL1642, UL2580, UN38.3 |
Series & Parallel Connections | Max. 4 Parallel, Max. 4 Series |
Safe Battery BMS
BMS | 100A |
Standard Continuous Charge Current | 20A (0.2C) |
Maximum Continuous Charge Current | 100A (1C) |
Max. Continuous Discharge Current | 100A |
Over-current Discharge Protection | 300A ± 50A |
Over-current Charge Protection | 130A ± 30A |
Short-circuit Protection | Yes |
Release Condition | Cut Load |
Charging High Temperature Protection | 60℃ - 70℃ |
Discharge High Temperature Protection | 65℃ - 75℃ |
High Temperature Protection Release Condition | Drop by 5℃ - 15℃ |
Charging Low Temperature Protection | -5℃ - 5℃ |
Discharge Low Temperature Protection | -25℃ - 15℃ |
Low Temperature Protection Release Condition | Rise by 5℃ - 15℃ |
Temperature
Charge Temperature | -5℃ - 70℃ |
Discharge Temperature: | -25℃ - 75℃ |
Storage Temperature | 0℃ - 60℃ |
