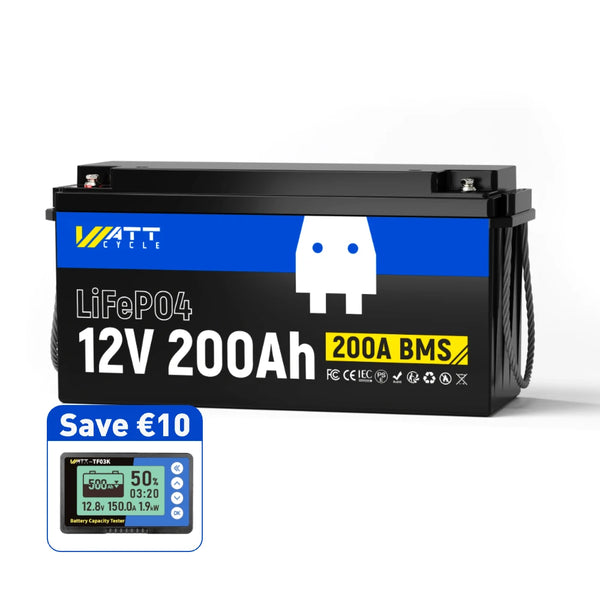

WattCycle 12V 200Ah LiFePO4 Battery

Regular price €449,99 €599,99 | Save €150,00 (25% off)
/
Tax included. Shipping cost, tax and discount calculated at checkout

Estimated delivery between - .


Compact】19.0 x 6.6x 9.4 Inches | 45.20 lbs
Safe】Low-temperature cut-off protection
Premium】 EV grade A+ LiFePO4 cells
Durable】4,000-20,000 deep discharge cycles & 10 years lifetime
Reliabe】Built-in 200A BMS | 2560W | 2560Wh
Scalable】Expandable max 4S4P, up to 40.96kWh
Waterproof】IP65
Certification】SDS/UN38.3/FCC/CE/ROHS/UL

Battery Description

EV-Grade LiFePO4 Cells: Made from 100% safe, non-toxic, and eco-friendly energy, our batteries offer higher chemical stability, guaranteeing quality and safety.

  • Long Life & Deep Discharge: This battery delivers 5,000 to 15,000 cycles with a 10-year lifespan, significantly outlasting lead-acid batteries by up to five times, while supporting 100% Depth of Discharge (DOD).
  • Lightweight & High Capacity: Weighing only 45.20 lbs, this battery is just 1/3 the weight of lead-acid alternatives, with an energy density of 56.63Wh/lb. It's ideal for RVs, trolling motors, marine, and off-grid applications.
  • High Energy Output: A single WattCycle 12V 200Ah battery offers the energy equivalent of two 12V 100Ah lithium batteries, providing 2.56kWh of energy. It supports up to a 4P4S connection, allowing you to build a 48V 800Ah battery bank with 38.4kWh energy for easier system setup and reliable backup power.
  • Comprehensive Protection: The built-in 200A BMS ensures all-around protection against overcharge, over-discharge, over-current, high temperatures, and short circuits.
  • Operating Temperature: Charging: 0°C~50°C; Discharging: -20°C~55°C.
  • Fast Charging: For optimal performance, a 12V 20A dedicated lithium charger is recommended, which will fully charge the battery in 10 hours.

Shipping Service

WattCycle-Europe Orders are shipped from Germany or Poland.

Shipping Carrier:
DPD & DHL

Destinations:
Germany, Austria, Belgium, Luxembourg, Netherlands, Czech Republic, Denmark, France, Hungary, Italy, Poland, Slovakia, Slovenia, Ireland, Portugal, Spain, Sweden, Croatia, Estonia, Finland, Latvia, Lithuania, Bulgaria, Greece, Romania.

Shipping time:
Processing time: 1-2 business days
Shipping time: 2-5 business days

Shipping cost: Except Bulgaria, Greece, and Romania, all other countries are FREE SHIPPING.

Shipping costs for orders to Bulgaria, Greece, and Romania vary depending on the weight of the goods in your order and start from 30€. Specific details for actual shipping costs can be viewed at checkout.

The shipping will be delayed for some objective or uncontrolled reasons. We will notify our customers ahead of delays.

Tracking Your Order: Once your order ships, you will receive a confirmation email with a tracking number. You can use this tracking number on the carrier's website to track the progress of your shipment.

Disclaimer: While we strive to meet the estimated delivery times provided, these are estimates and actual delivery times may vary depending on factors beyond our control, such as carrier delays or weather conditions.

Battery Warranty

Warranty Policy

At WattCycle, we stand behind the quality and performance of our batteries. We offer a comprehensive warranty to ensure your satisfaction with your purchase.

Please read the product manual carefully before installing and using the product, and use the battery correctly under the instructions of the manual.

Warranty Period

WattCycle warrants that the product will be free from defects in workmanship and material to the original consumer purchaser.
The warranty period starts on the date of purchase by the original consumer purchaser.

1. For the battery >50Ah, the warranty period is 5+2 years. (Extra 2-year warranty service is only for official website customers.)

2. For the battery ≤50Ah, the warranty period is 3 years.

3. For the battery charger, the warranty period is 2 years.

4. For other accessories, the warranty period is 1 year.

Warranty Statement

Any defects in material or workmanship of your product will be covered after you provide any valid proof of purchase and information including but not limited to the following:

1. A purchased order number was made through WattCycle's official stores.

2. Sales invoice or order confirmation email that clearly shows the description of the product, its price, and sales channel.

Note: The limited warranty is restricted to the country of purchase. The warranty on the items will be invalid once they are taken or shipped to other countries.

Exclusions of Warranty

1. Misused, abused, damaged by accident, or damaged due to force majeure. (e.g. lightning strikes, tornadoes, hurricanes, etc.);

2. Unauthorized modification, repair, dis-assembly or operation not in accordance with the official instructions or manuals;

3. Lost, stolen, or fully refunded product;

4. The warranty period expired;

5. The battery model on the warranty certificate does not match the actual item;

6. Product wear and tear through the usage of time.

Procedures for Warranty Claims

We’ll assist in analyzing the consumer’s problem within 24 hours, help solve the problem, restore battery usage, and introduce the optimal use method.

If our product fails to work normally, the consumer assists us in completing all the battery testing, and both parties confirm that the product does have quality problems, we’ll send a new battery replacement to the defective battery after it has been returned to our US warehouse by the pre-paid label we prepared. The defective battery will be checked and tested by our technical team to analyze the problem.

From the date of purchase and within 6 months, if our products have quality problems and cannot work normally, we can provide replacement or refund services; Within 7 months from the date of purchase to the end of the warranty, if our products have quality problems and cannot work normally, we can provide replacement services.

Any product(s) returned for valid warranty service will be shipped at the expense and risk of us. We will provide a pre-paid label to customers who need to return the products to the designated place at the specified time.

Batteries that have been serviced or replaced under their warranty period do not receive extended warranties. Instead, the serviced/replaced battery(-ies) will abide by the original warranty period issued when first purchased.

Changes to This Policy

We reserve the right to modify this Warranty Policy at any time. We will post any changes to this policy on our website.

Contact Us

If you have any questions about our Warranty Policy, please feel free to contact us at support.eu@wattcycle.com.

We encourage you to read this warranty policy carefully. By purchasing a WattCycle battery, you agree to the terms and conditions of this warranty.

User Manual
Customer Reviews
9555

WattCycle 12V 200Ah LiFePO4 Battery

1 Pack - €449,99
  • 1 Pack - €449,99
  • 2 Pack (Final €423.22/each) - €890,98
  • 3 Pack (Final €418.94/each) - €1.322,97
  • 4 Pack (Final €414.67/each) - €1.745,96

12V 200ah Deep Cycle Battery -Build your own energy system!

WattCycle Deep Cycle Battery: Grade A+ Power

  • Brand New EV Grade A+ Cells
  • Superior Quality and Reliability
  • Longer Lifespan
  • High Energy Density
  • Safety and Stability
  • Consistent Performance
  • High Performance in Extreme Conditions
  • Environmental Friendliness

WattCycle Lithium Battery Safety: Premium BMS Protection

  • Max. Cont. Discharge Current: 200A
  • Max. Cont. Charge Current: 200A
  • Max. Discharge Current (5s):300±50A

LiFePO4 Battery 12v 200AH in RV System

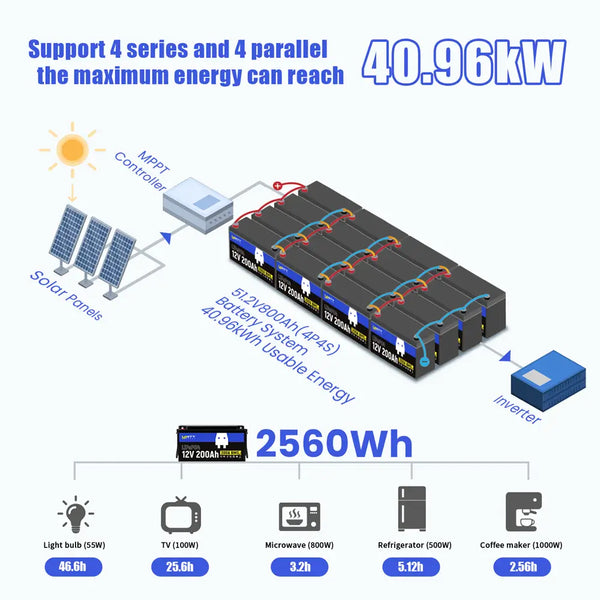

Connect in Series or Parallel

You can wire lifepo4 battery 12V 200AH Core Series Batteries in series to build a 24V, 36V, or even 48V system in your RV.

LiFePO4 Lithium Battery One-Stop Solution

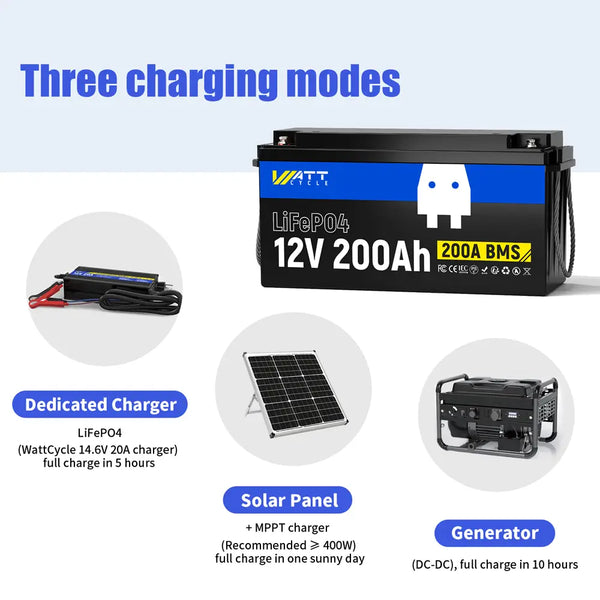

Choose the Charging Method That Suits You

14.6V 20A Charger

1) 3 Charging Phase: I1, I2, I3
2) Recommended Charging Rate: 0.1C~5C
3) Full Charging: 10 hours (0.1C)

Solar Energy Plate

1) Recommended Charging Current: 0.1C~0.5C
2) Recommended Charging Voltage: 14.4~14.6V

Tech Specs



GENERAL

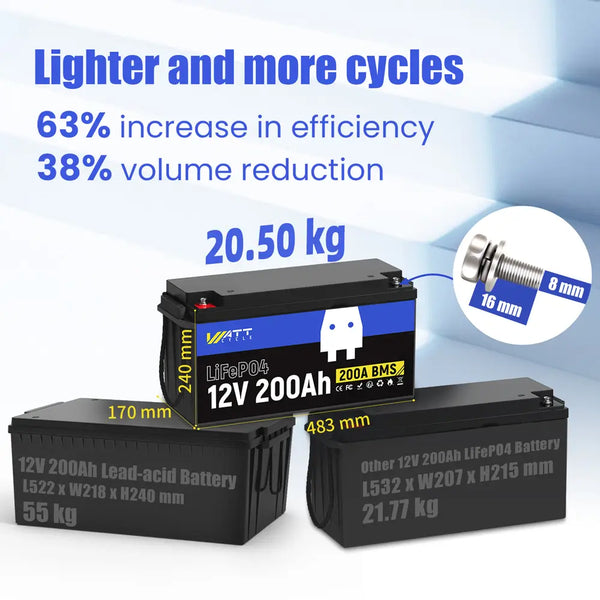

Dimensions (Inches) 21.0 (L) x 8.2 (W) x 8.5 (H)
Weight 45.20lbs / 20.5kg
Waterproof Rating IP65
Warranty 7 years
Housing Material ABS (Flame Retardant Plastic)
Terminal M8 bolts

BATTERY

Cell EV Grade A+ LiFePO4 Cells
Nominal Voltage 12.8V
Nominal/Usable Capability 200Ah
Energy 2560Wh
Cycle Life 5,000 cycles @100% DOD, 6,000 cycles @80% DOD, 15,000 cycles @40% DOD
Max Depth of Discharge (DOD) 100%
Max. Expansion 4S4P
Certifications SDS/UN38.3/FCC/CE/ROHS/UL
Internal Resistance ≤40mΩ

BMS

BMS 200A
Max. Continuous Output Power 2560W
Max. Continuous Charge Current 200A
Max. Continuous Discharge Current 200A
Max. Discharge Current  300±50A (≤5s)

CHARGE

Charge Voltage 14.6V ± 0.2V
Charge Method CC/CV
Recommend Charge Current 40A (0.2C)
Charge Temperature 0℃ to 50℃ / 32℉ to 131℉
Discharge Temperature: -20℃ to 55℃ / -4℉ to 131℉
Storage Temperature 0℃ to 55℃ / 32℉ to 131℉

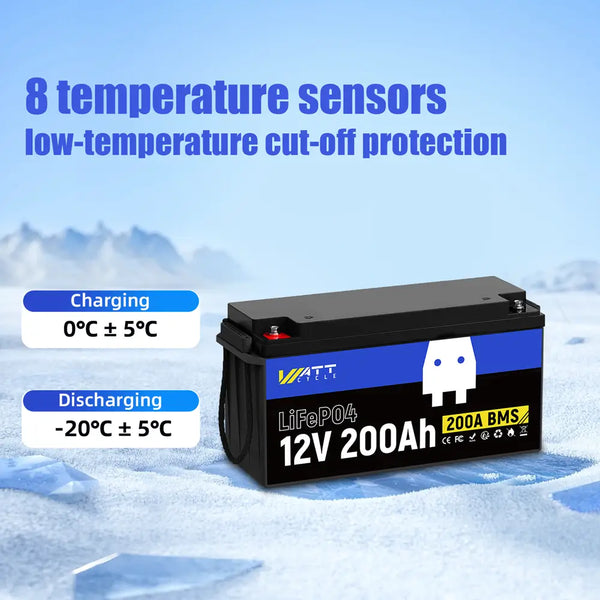

Low-Temperature Protection Yes (32℉/0℃)
Low-Temperature Charging Protection Auto Recovery Yes (41℉/5℃)

Frequently asked questions

Can’t find what you’re looking for? Contact us at: service@wattcycle.com

Q1: What are the precautions when I use the battery?

A1:
The battery is classified as a flammable and explosive item. Please use it with caution.
When you are using it, no short circuit, no crush, no disassemble or no incinerate.
And please avoid the mechanical impact.

Q2: What can l use it for?

A2:
It can be use for
1) RV, Camper, Trailer, Caravan, Camping Truck, Bus etc.
2) Solar System + Wind Power System
3)Home Energy System
4)Boat & Fishing
5) Wireless Lawn Movers, Vacuum Cleaner & Washing Machine
6) Portable Video Camera & Portable Personal Computer
7) Car Audio System
8) Light Equipment
9) Emergency Lighting Equipment
10) Fire Alarm & Security Systems
11) Electric Equipment & Telemeter Equipment
12) Toys & Consumer Electronics

Q3: What is the Installation of the battery?

A3:
The default of the new factory battery is [ sleep state ],the first 3 times need to be fully charged, discharged and then fully charged, and then discharged... to fully
activate the battery capacity.

Before installation and use, please check the relevant waterproof, shockproof, short circuit prevention, puncture prevention, heat prevention, and prevent the plug and socket from touching the bad ignition and damage the battery.
Lithium batteries are used in parallel: Because the battery is not fully charged before it leaves the factory, please fully charge the battery before parallel installation, and test the voltage of each battery.
It is recommended to keep the voltage difference of each battery within 30mv in order to extend the battery life.
Lithium batteries are used in series: the lithium battery maximum series is4*12V=48V,for the sake of balance.
Before the series, batteries need to be charged firstly, and place the 4 groups of batteries in parallel for more than 12H.

Charging: Please keep the battery pack 30%-60% of the power storage , and charge the battery once every 3 months.
Please select the LiFePO4 charger with a rated voltage of 14.6V according to the parameters specified on the battery nameplate to charge the battery.

Before use:
If you find that there is battery deformation or damage, smelly, smoke or abnormal heat, swelling, water ingress and other abnormal conditions, please do not use, contact the dealer in time to deal with it.

Q4: Does it support the over-current / short-circuit protection?

A4:Yes!

If the over current / short circuit protection is tripped, the BS will shut the battery down and remain disconnected until you remove the battery cables.

While the battery cables are disconnected, we suggest to the battery voltage with the use of a voltmeter. lf it reads above 10.8V reconnect the battery cables.

If you are unsuccessful at obtaining a voltage reading above 10.8V, please contact our technical support team: service@wattcycle.com.

Q5:Does it support communication capability?

A5: No! We cannot support the communication capability currently.

Q6: What preparations, tools, and precautions are necessary for installation?

A6:
Installation Environment:
The battery should be installed in a clean, cool, and dry location, away from water, oil, and dirt.

Equipment or Tools:
1) Proper insulation protection equipment
2) Multimeter, battery cables
3) Battery charger/charge controller

Recommendations:
1) Same brand (Due to different BMS settings, do not connect lithium batteries of other brands)
2) Same battery type (LiFePO4) (Do not connect batteries of other types, such as lithium-ion, lead-acid, or other batteries)
3) Same voltage (recommended for fully charged batteries) (12.8V)
4) Same capacity (50Ah)
5) The purchase cycle of the two batteries should not exceed three months.

Before Installation:
1) Check for visible damage to the battery, including cracks, dents, deformation, and other visible abnormalities.
2) Ensure that the top of the battery and the terminal connections are clean, free of dirt and corrosion, and dry. If any issues are detected with the battery, please contact us for assistance.
3) Do not short-circuit the battery terminals, as doing so may cause a current surge and result in irreversible damage to the system and battery.
4) Before connecting, confirm the polarity to avoid damaging the battery due to polarity reversal.
5) Use a circuit breaker, fuse, or an appropriate-sized circuit breaker designated by a qualified electrician, licensed installer, or regulatory authority to protect all electrical equipment.

Installation Steps:
Step 1: Fully charge the batteries separately.
Step 2: Test the voltage after 15 minutes of standing, which should be greater than 13V.
Step 3: Connect your batteries in series and/or parallel.

Q7: How long does it take to fully charge?

A7:
Charging Tips:
1) Use a 14.6V LiFePO4 battery charger.
2) Recommended charging voltage: 14.4 ~ 14.8V
3) Recommended charging current:
20A - The battery will be fully charged to 100% capacity in approximately 10 hours.
50A - The battery will be fully charged to 100% capacity in approximately 4 hours.

Q8: How should batteries be stored?

A8:
We recommend charging the WattCycle Energy battery to 50%. Then, disconnect the battery from the load by removing the negative wire from one battery.
Overall, the battery's capacity loss is less than 3.5% per month at 77°F. However, if stored in extreme environmental conditions, the capacity loss may increase.

Q9: Can I use WattCycle 12V 200Ah LiFePO4 battery as a starting battery?

A9:
No. WattCycle 12V 200Ah LiFePO4 battery can not be used as starting batteries but energy storage, please do not use them to start any devices.

Q10: What is the life span of WattCycle 12V 200Ah LiFePO4 batteries?

A10:
WattCycle 12V 200Ah LiFePO4 battery can be used for 4,000-20,000 life cycles.
Depending on usage, it can be used 10 years or more.

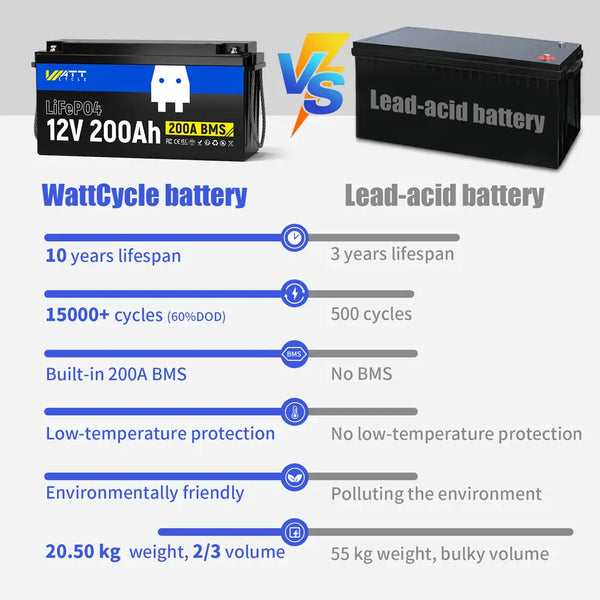

Lead acid and AGM get roughly 300-500 life cycles before their capacity is reduced substantially.
Therefore, even though there is more upfront cost with a WattCycle LiFePO4 Battery, the upgraded saves you big in a long run.

Q11: How do I know what size of LiFePO4 battery I need?

A11:
The size of the LiFePO4 lithium battery you need depends on several factors such as the application, power requirements, space constraints, and desired capacity.
To determine the appropriate size, consider factors such as voltage, capacity (Ah), physical dimensions, and any specific requirements for your application.
If you need assistance in determining the right size, feel free to contact our technical team for personalized guidance. (service@wattcycle.com)
