⚡Prevendita⚡Cavo di espansione WattCycle 48V per stazione di alimentazione BLUETTI AC200MAX

Yes, it is plug-and-play! However, for maximum safety, please follow this connection rule:
Step 1: Connect the ring terminals (positive to positive, negative to negative) to your external batteries.
Step 2: Plug the adapter into your BLUETTI power station.

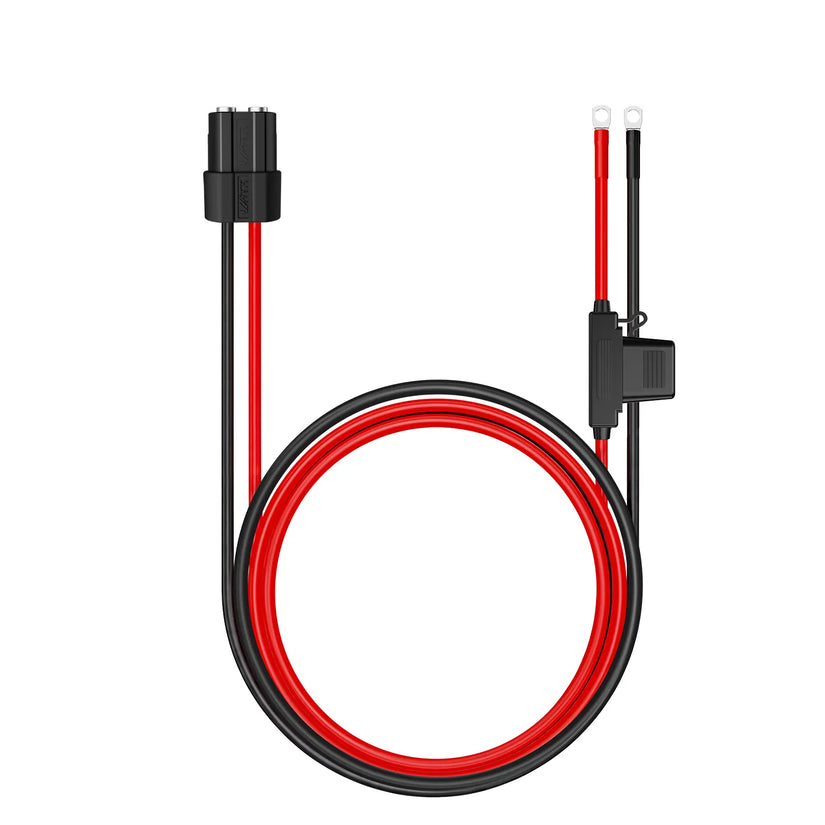

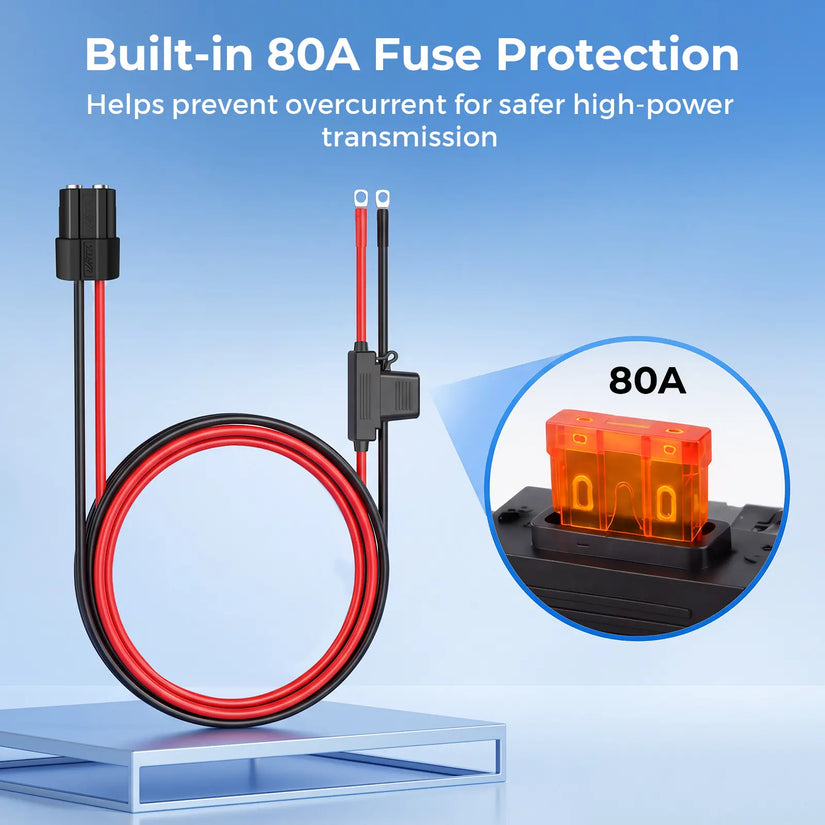

Note: Our cable features flexible 8AWG (200°C-rated) silicone wire, positive heat-shrink protection, and a factory-installed 80A inline fuse to safeguard your setup.

The cable creates a direct, high-current path between batteries.

If you connect a 100% full external battery to a 5% depleted power station, massive equalising currents will surge through the wire and blow the fuse.

Always ensure both your BLUETTI unit and external batteries are at similar charge levels (e.g., both at 100%) before turning them on together.

Since third-party batteries don't communicate BMS data directly with BLUETTI, the power station estimates the state of charge purely based on the overall voltage curve.

As you run heavy loads, the power station display will drop faster than the external battery readout (SoC Drift). This is 100% normal—power is still flowing properly!

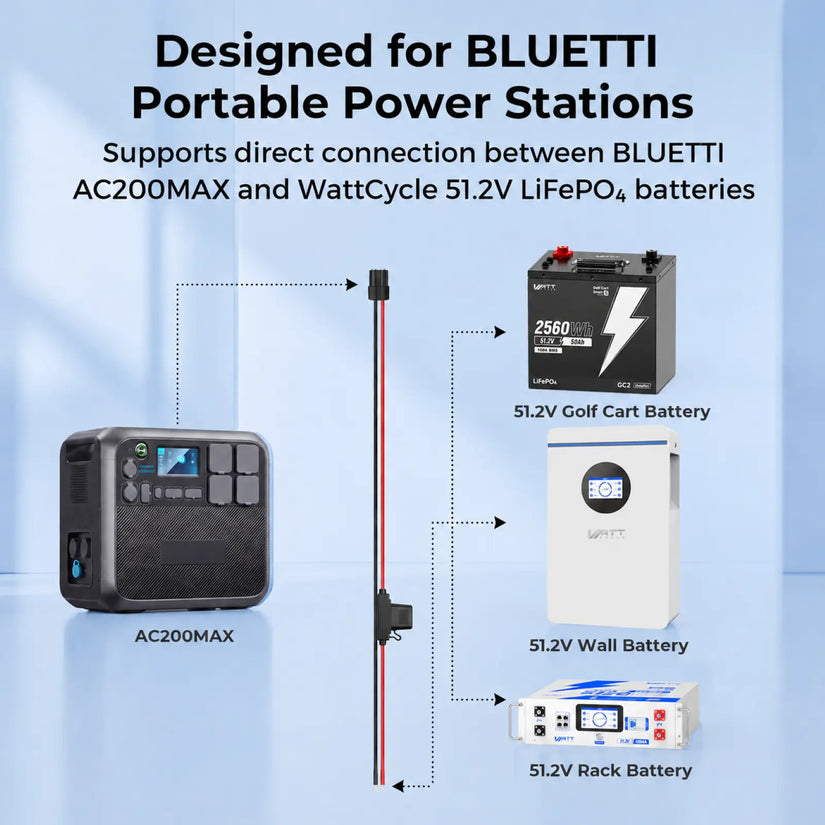

This cable is designed to connect directly to the BLUETTI AC200MAX. For models such as the AC300 and AC200L, stricter internal communication requirements mean you must first connect at least one official B300 expansion battery to serve as the system "guide" (establishing the necessary communication handshake) before the port can recognise the auxiliary power input.

No. This cable operates on an independent "no-protocol" direct DC transfer method. Your BLUETTI station and WattCycle battery will each manage their own internal BMS and State of Charge independently, bypassing the need for proprietary brand software.

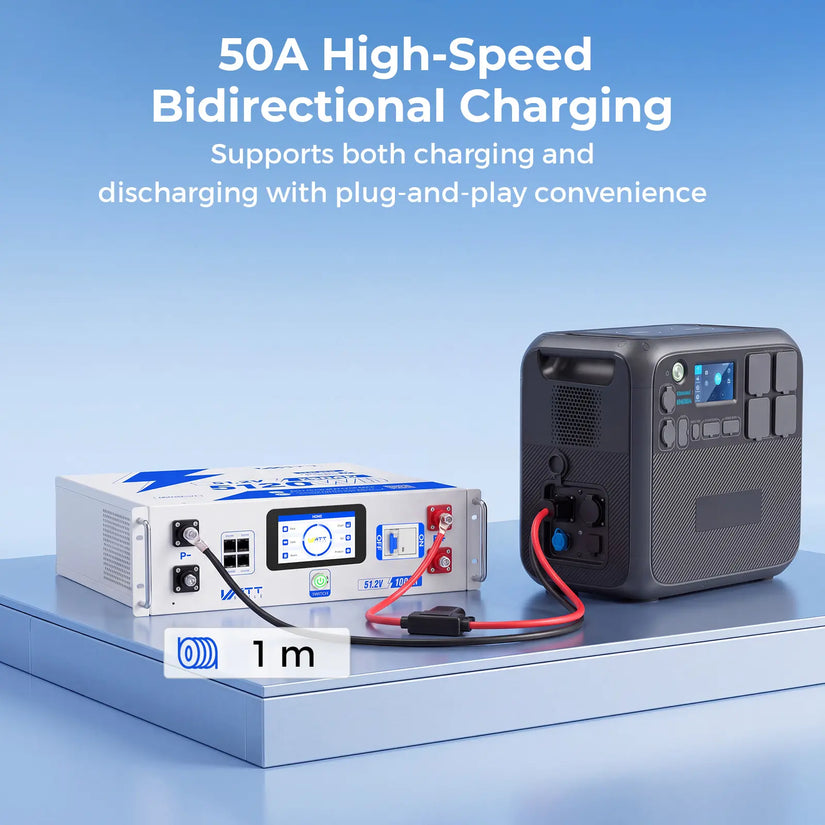

Yes! This cable supports bidirectional fast charging. You can transfer energy back and forth depending on whether you need to recharge your portable power station or draw from your large 48V WattCycle storage bank to power heavy appliances.

For safety, both units should have a voltage difference of ≤ 1V before connecting. If the voltage gap is too wide, the power station's native protection mode may trigger or the built-in 80A fuse will protect the circuit. If it pauses, let the units equalize or restart the system before reconnecting.

Safety is paramount in high-current 48V setups. Securing the M8 O-terminals to the battery first ensures that loose, live wires cannot accidentally brush against each other and cause a dangerous short-circuit while you handle the power station end.

To draw maximum capacity from your external batteries without premature shutdown:

Go to Settings -> Advanced Settings -> Charge Limit Settings.

Set the Max Charge Limit to 100%.

Set your discharge threshold in TOU/Self-Consumption mode to the lowest possible setting.
