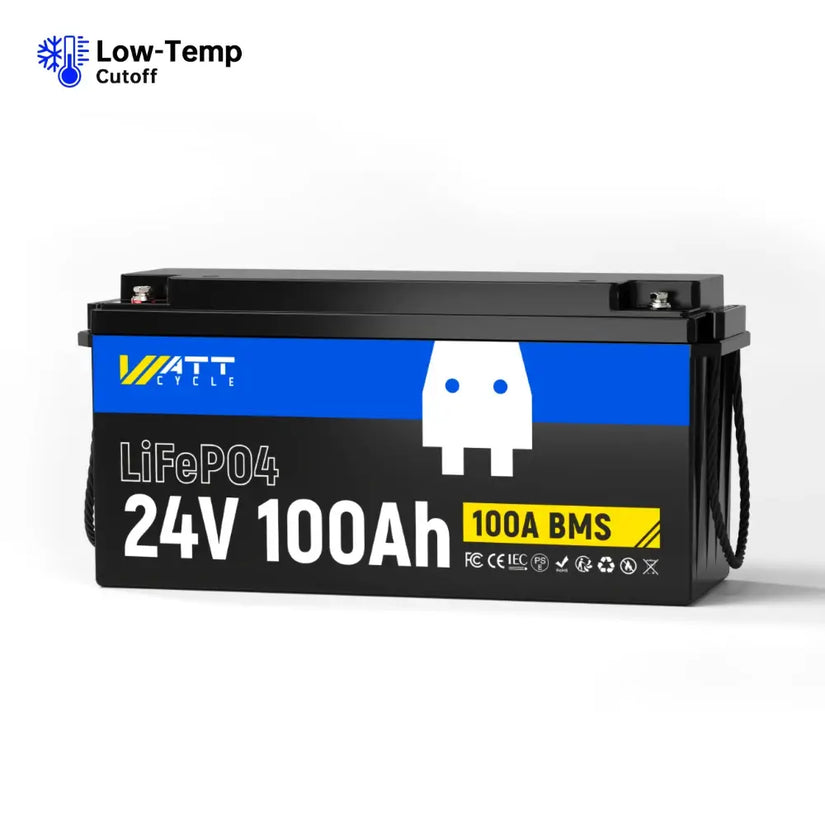

WattCycle 24V 100Ah LiFePO4 Battery
Will Be Back In

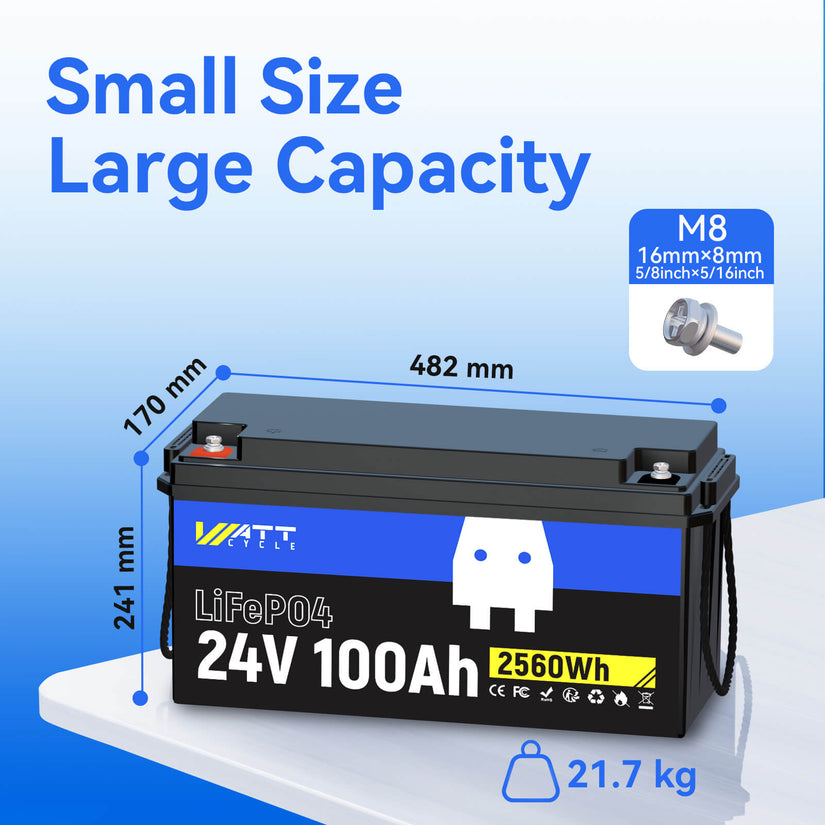

- L482 x W170 x H241mm, 21.70kg
- 100A BMS, 2560W Putput Power, 2560Wh Usable Energy
- 117.97Wh/kg Large Energy Density
- 100A Max. Continuous Discharge/Charge Current, 300A ± 50A 1.2s Peak Discharge Current
- Support 4P2S Scalable Connection to Achieve up to 20.48kWh Energy
- Low-Temp CutOff Protection
- Certifications: IEC, CE-EMC, CE-RoHS, CE-Battery, FCC-SDOC, UN38.3, MSDS
-
Local EU Warehouses
-
14-Day Price Guarantee
-
Hassle-Free Warranty
-
Lifetime Customer Support
WattCycle High Energy High Power Battery
WattCycle 24V 100Ah deep cycle battery with an excellent standby power source of 2560Wh usable energy is more reliable and safer on indoor or outdoor installations and applications, such as RVs, Solar systems, Marine, etc.
100% All-around Safer BMS Protection
Designed with reliability, durability, and longevity, WattCycle 24V 100Ah deep cycle LiFePO4 battery uses EV grade-A cells and super safe 100A BMS, which provides 5000+ cycles at 100% DOD and more than 6 protections (Against Overcharge, over-discharge, overcurrent, overload, extreme temperature and short circuit) to meet your indoor power demands and elevate outdoor adventures.
Expandable Max. 20.48kWh for Your Needs

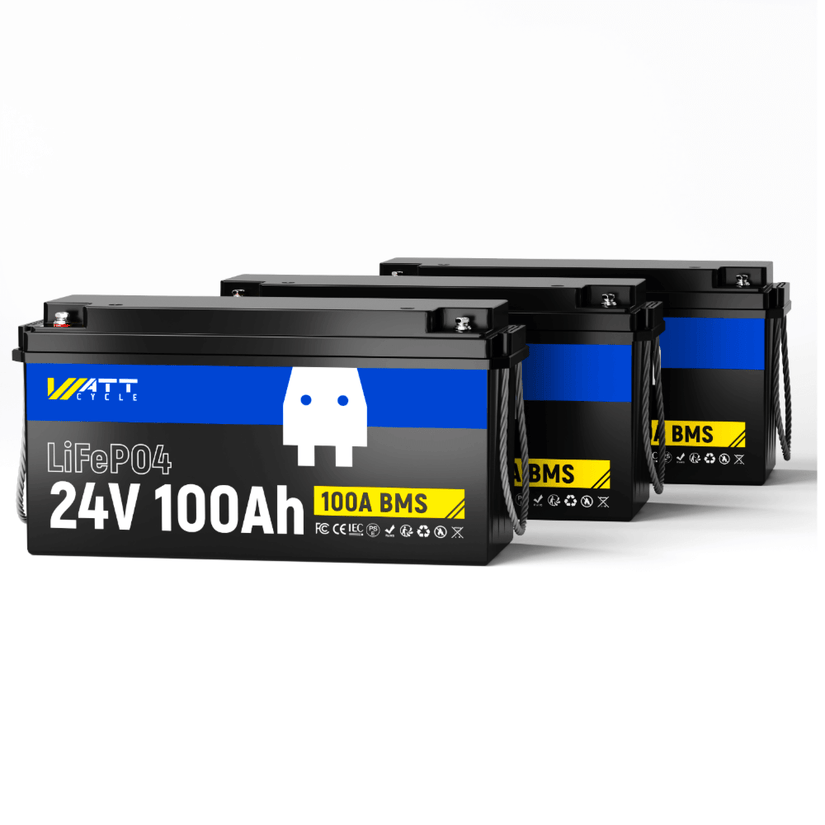

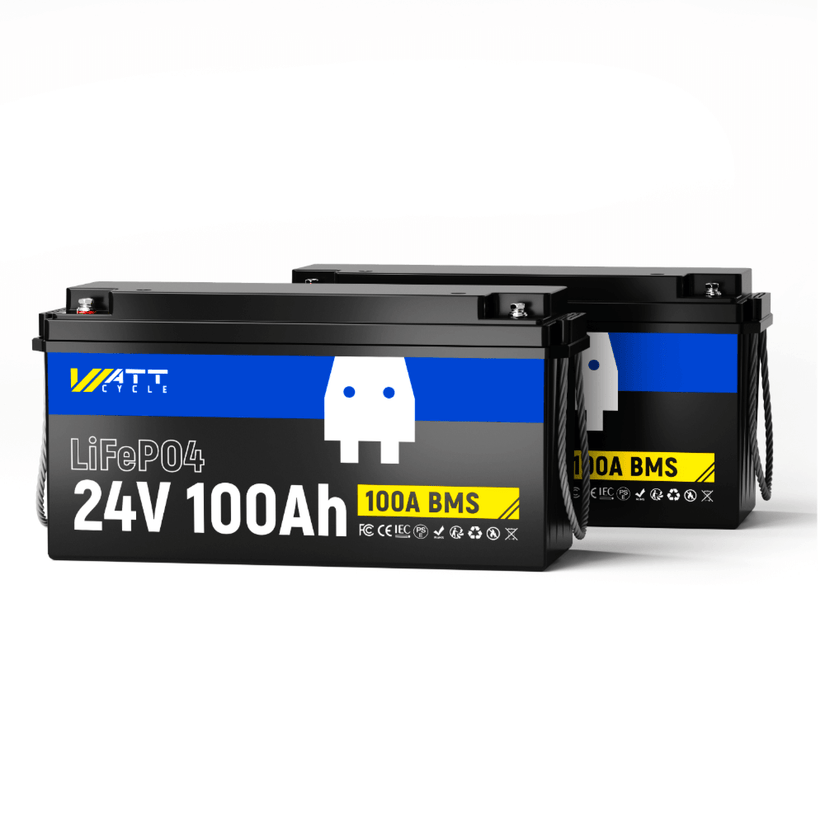

WattCycle 24V 100Ah batteries support max. 4 in parallel and 2 in series connection to build a 48V (51.2V) 400Ah battery system, providing continuous charge and discharge current 400A, and 20.48 kW continuous output power. You can have more flexibility when getting a DIY battery system to cover all your needs.
Compact Design & Space-saving

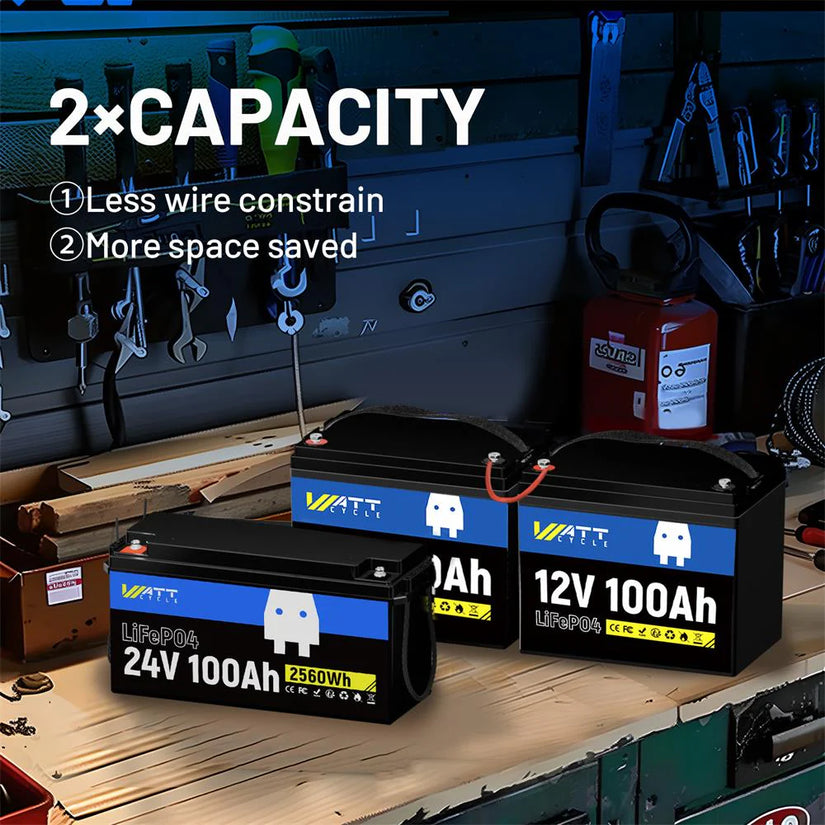

Compared to 4 pcs 12V 100Ah lead-acid batteries or 4 pcs WattCycle 12V 100Ah batteries, WattCycle 24V 100Ah deep cycle LiFePO4 battery with compact design (L482 x W170 x H241 mm). It is lighter and smaller but releases the same energy. Ideal Choice for Every Need!
Power Infinite
WattCycle 24V 100Ah battery with 2560W output power and 2560Wh usable energy powers your every need, whether indoor or outdoor activities.
General
| Battery Technology | LiFePO4 |
| Dimensions | L482 x W170 x H241 mm |
| Weight | 27,10 kg |
| Terminals | M8 Bolts |
| Casing Material | ABS |
| Waterproof Rating | IP65 |
| Self-heating | No |
| Hazard class | 9 |
| Warranty | 5 Years |
| Certifications | IEC, CE-EMC, CE-RoHS, CE-Battery, FCC-SDOC, PSE, METI, UN38.3, MSDS |
Technical Data
| Nominal Voltage | 25,6V |
| Nominal/Usable Capacity | 100Ah |
| Energy | 2560Wh |
| Cell Balancing | No, passive balancing |
| Monthly Self Discharge | ≤3%/Month |
| Series & Parallel Configurations | Max. 4 in Parallel, Max. 2 in Series |
BMS
| BMS | 100A |
| Max. Continuous Output Power | 2560W |
| Overall Over-Charge Detection Voltage | 29,2±0,2V |
| Shipping Voltage | 25,6V - 29,2V |
| Standard Continuous Charge Current | 20A (0.2C) |
| Max. Continuous Charge/Discharge Current | 100A (1C) |
| Over-current Charge Protection | 160A±40A |
| Over-current Discharge Protection | 400A±50A |
| BMS High Temperature Cut-Off | Charge: 55℃±5℃ Discharge: 65℃±5℃ |
| BMS Low Temperature Cut-Off | Charge: 0℃±5℃ Discharge: - 20℃±5℃ |
| High Temperature Recovery | Charge: 50℃±5℃ Discharge: 60℃±5℃ |
| Low Temperature Recovery | Charge: 2℃±5℃ Discharge: -15℃±5℃ |
Temperature Range
| Charging Temperature | 0℃-55℃ |
| Discharging Temperature | -20℃-60℃ |
| Storage Temperature | 0℃-45℃ |
Frequently Asked Questions
2560Wh! WattCycle 24V 100Ah LiFePO4 battery built-in 100A BMS provides 2560W output power and 2560Wh energy storage.
Battery runtime is influenced by multiple factors, including battery capacity, connected load, and the battery’s condition. For example, a new battery performs better than a used one, as its capacity slightly decreases with repeated charge cycles. However, you can estimate runtime using a simple formula based on power consumption and battery capacity:
Runtime (hours) = Battery Capacity (Wh) / Total Device Power Consumption (W)
Example:
If you have a 24V 100Ah battery and connect a 50W lamp and a 50W speaker, the runtime will be:
2560Wh / (50W + 50W) = 25.6 hours
This straightforward formula helps estimate runtime under different loads. Always consider real-world factors like temperature and battery ageing for more accurate predictions.

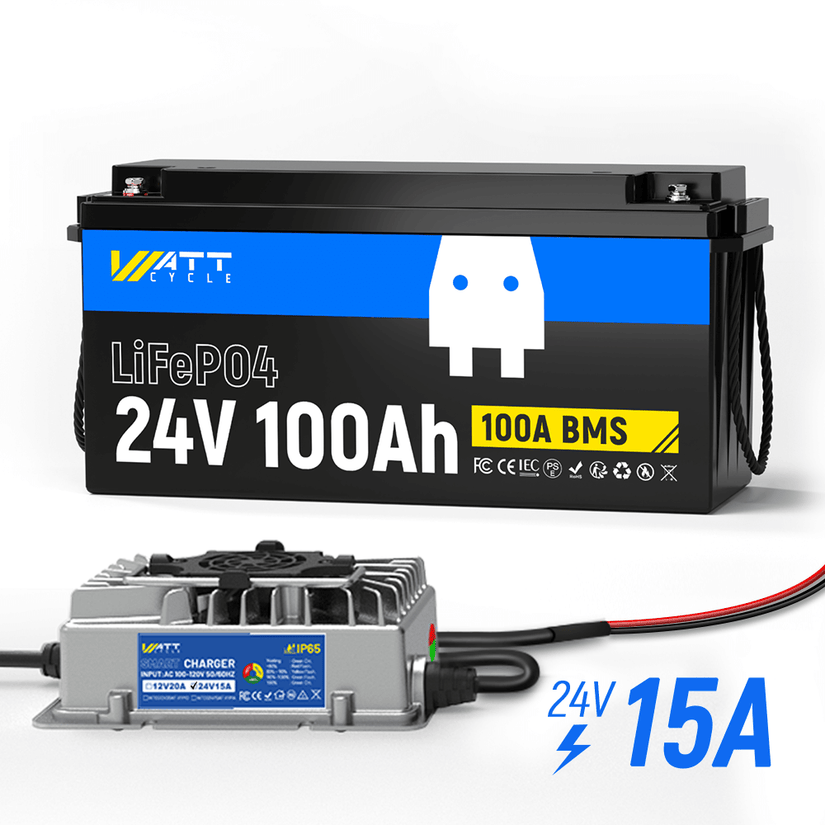

Assuming you are using a 24V 15A LiFePO4 battery charger to charge a WattCycle 24V 100Ah solar battery, it would take approximately 6.67 hours to charge the battery from 0% to 100%.
Certainly! If you use an 800W solar panel to charge the WattCycle 24V 100Ah solar battery from 0% to 100%, it should be fully charged in a day with 4.5 hours of effective sunlight. Therefore, a proper solar charge controller is essential for correctly charging the lithium battery.
For all WattCycle LiFePO4 batteries with a capacity above 50Ah, a 5-year warranty is provided. An additional 2-year warranty is available upon warranty registration. The expected battery lifespan is10 years, and the cycle count can reach5,000–15,000 cycles, compared to just 300–500 cycles for lead-acid batteries. WattCycle is your best choice for energy storage batteries!

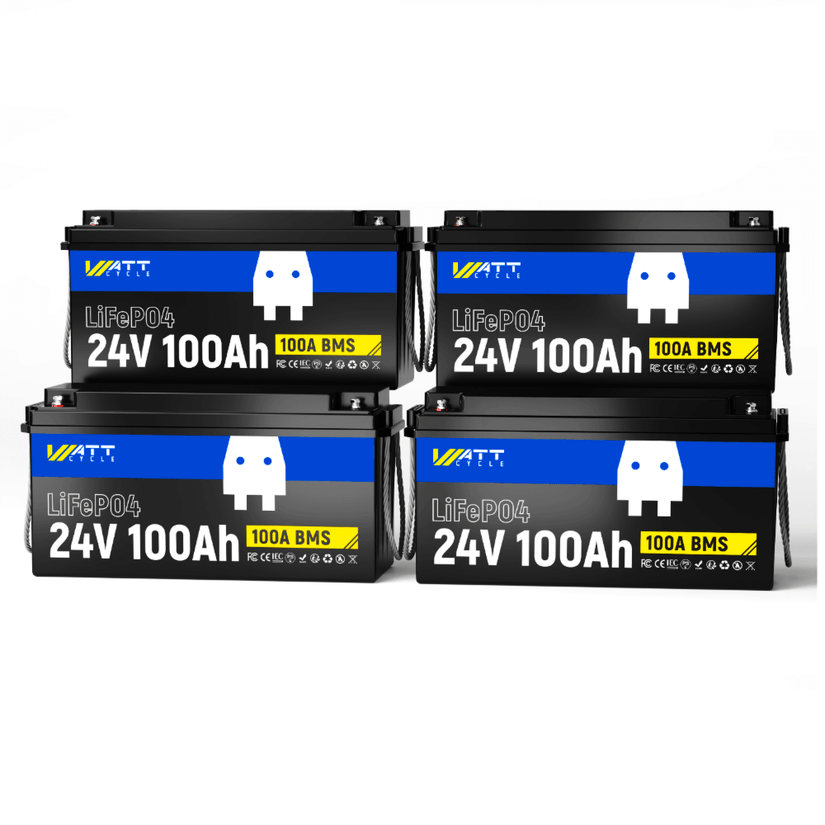

WattCycle 24V LiFePO4 batteries support versatile configurations, including series, parallel, and series-parallel connections.You can connect up to 2 units of 24V 100Ah solar batteries in series, 4 units in parallel, or 8 units in series-parallel configurations. When 8 solar batteries are connected in series-parallel, they form a 48V (51.2V) 400Ah battery system, delivering up to 20.48kWh of energy and 400A of continuous charge/discharge current. WattCycle is your best choice for energy storage batteries!

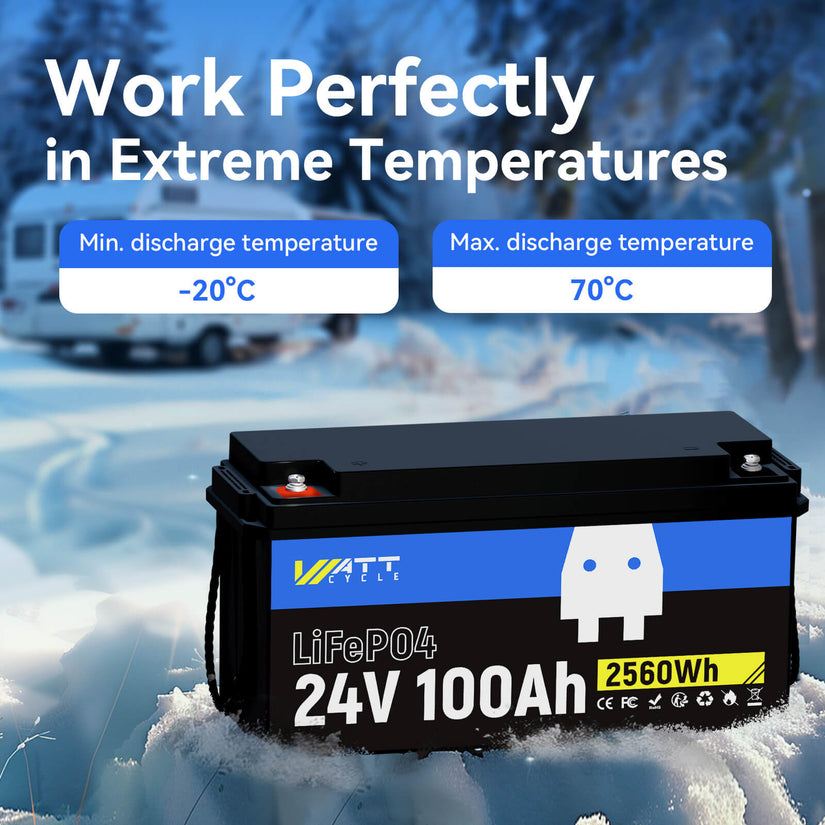

The recommended operating temperatures for our 24V 100Ah lithium battery are:
- Charging: 0°C to 65°C
- Discharging: -20°C to 70°C
- Storage: 0°C to 60°C.
The Battery Management System (BMS) includes high- and low-temperature protection, ensuring the battery can be safely used even under challenging conditions.
