Product Introduction: WattCycle PIONEER 2500W Balcony Battery with 10kWh Storage

A balcony solar system makes solar power easier to access for many European households. But in everyday use, one problem quickly becomes clear: without a balcony battery, much of the solar energy is not available when it is needed most. Solar panels generate power during the day, while household electricity demand often rises in the evening.

The WattCycle PIONEER is designed for exactly this situation. As an all-in-one balcony battery storage system, it combines 10kWh battery capacity, 2500W power output, a microinverter interface, grid connection, app control and backup power in one system. This turns a balcony solar setup into a much more flexible energy solution for daytime use, evening consumption, night-time power and power outages.

What Is the WattCycle PIONEER Balcony Battery?

The WattCycle PIONEER 2500W balcony solar battery with 10kWh storage is a hybrid balcony PV storage system for households that want to use more of their self-generated solar power. The system combines battery storage, inverter function, BMS, communication module, grid interface, load connection and microinverter interface in one integrated solution.

This means the system can store solar energy, keep it available for later use and supply important devices during a power outage. With app control and smart metering, users can manage power output by time and power level.

That makes the WattCycle PIONEER more than just an additional balcony battery. It is a complete balcony energy storage system that brings together high capacity, strong output and smart control in a compact design.

Key Features at a Glance

Feature	WattCycle PIONEER 2500W 10kWh
Automatic self-heating	Activates below 0°C and switches off automatically above 10°C
Battery capacity	10kWh
Battery type	LiFePO4
Nominal voltage	51.2V
Rated power	2.5kW
Peak power	5kVA
Grid-connected output	Adjustable from 0 to 2500W
AC charging current	Up to 50A
UPS switching time	Less than 10ms
Output waveform	Pure sine wave
Protection rating	IP65
Control	App and touchscreen
Dimensions	500 × 210 × 800 mm
Weight	Approx. 95 kg

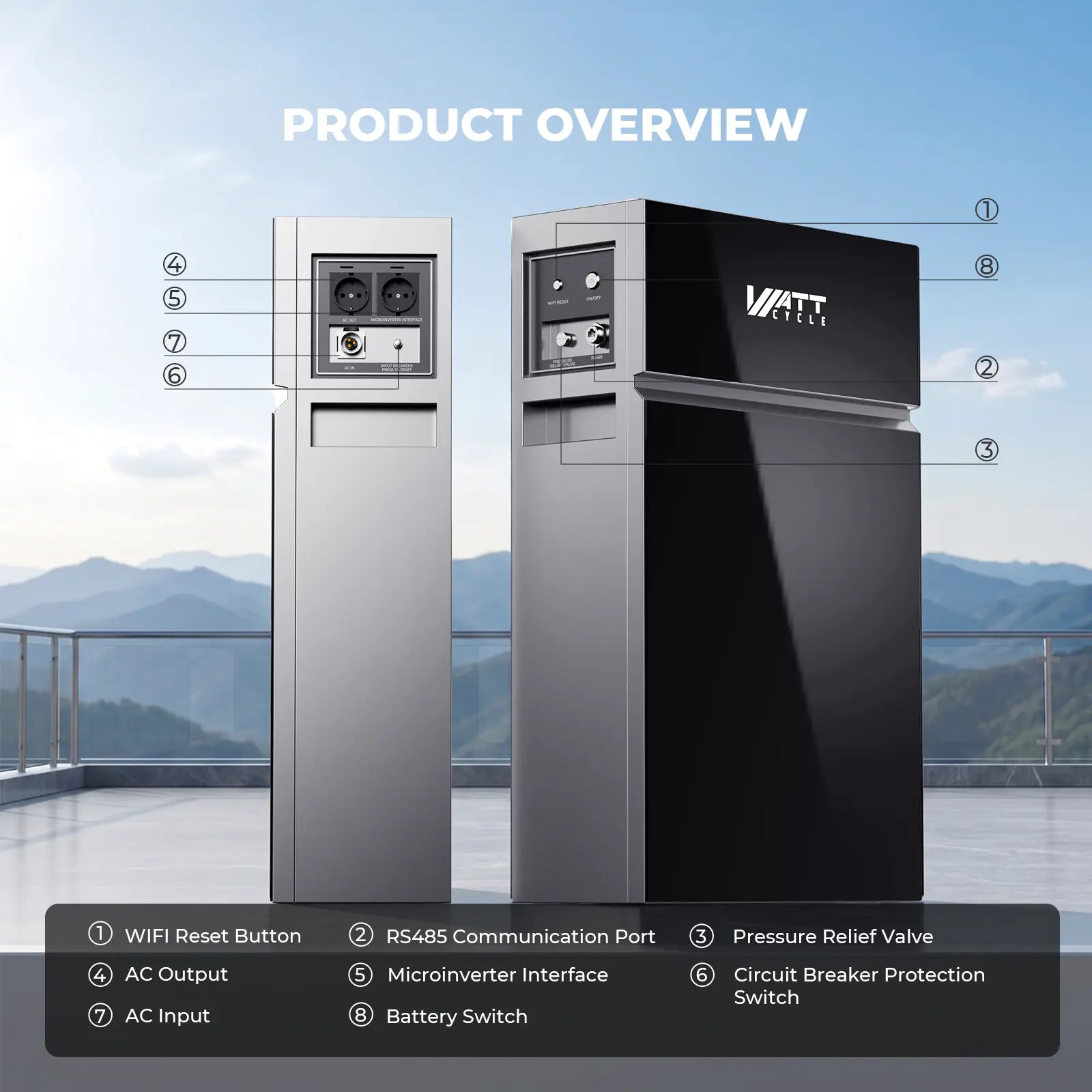

All-in-One Design: Simple Balcony Battery Storage for Daily Use

With the WattCycle PIONEER 2500W balcony battery, high storage capacity becomes easier to use in everyday life. The system integrates the battery, BMS, microinverter interface, AC input, AC output and app control in one all-in-one system.

The plug-and-play concept makes operation more straightforward. After proper installation, the balcony battery can be started and integrated into daily energy use. Through the app and touchscreen, users can check the state of charge, operating status and key settings at any time.

For users, this means a powerful 10kWh balcony battery storage solution that is not only technically strong, but also clear, convenient and easy to manage.

10kWh Capacity and 2500W Output: More Energy for Everyday Life

A balcony battery should do more than simply store excess solar power. It should also make that stored energy useful when the household actually needs it. This is where the WattCycle PIONEER 2500W balcony solar battery with 10kWh storage stands out. With 10.24kWh capacity, 2.5kW rated power and 5kVA peak power, it offers more flexibility for the home, balcony, garden and backup power use.

The large battery capacity is already built into the system. Users do not need to combine extra battery modules or expand the system step by step. From the beginning, more energy is available for evening use, night-time power or periods of higher household demand.

At the same time, the strong output power means the PIONEER can support more than small base loads. Through the AC output, the system delivers pure sine wave power and can supply important household devices reliably.

The actual runtime always depends on the connected devices and their power consumption. But the combination of 10.24kWh capacity and 2500W output makes the WattCycle PIONEER a powerful balcony battery storage system for users who want to use more of their own solar power and make their balcony solar system much more flexible.

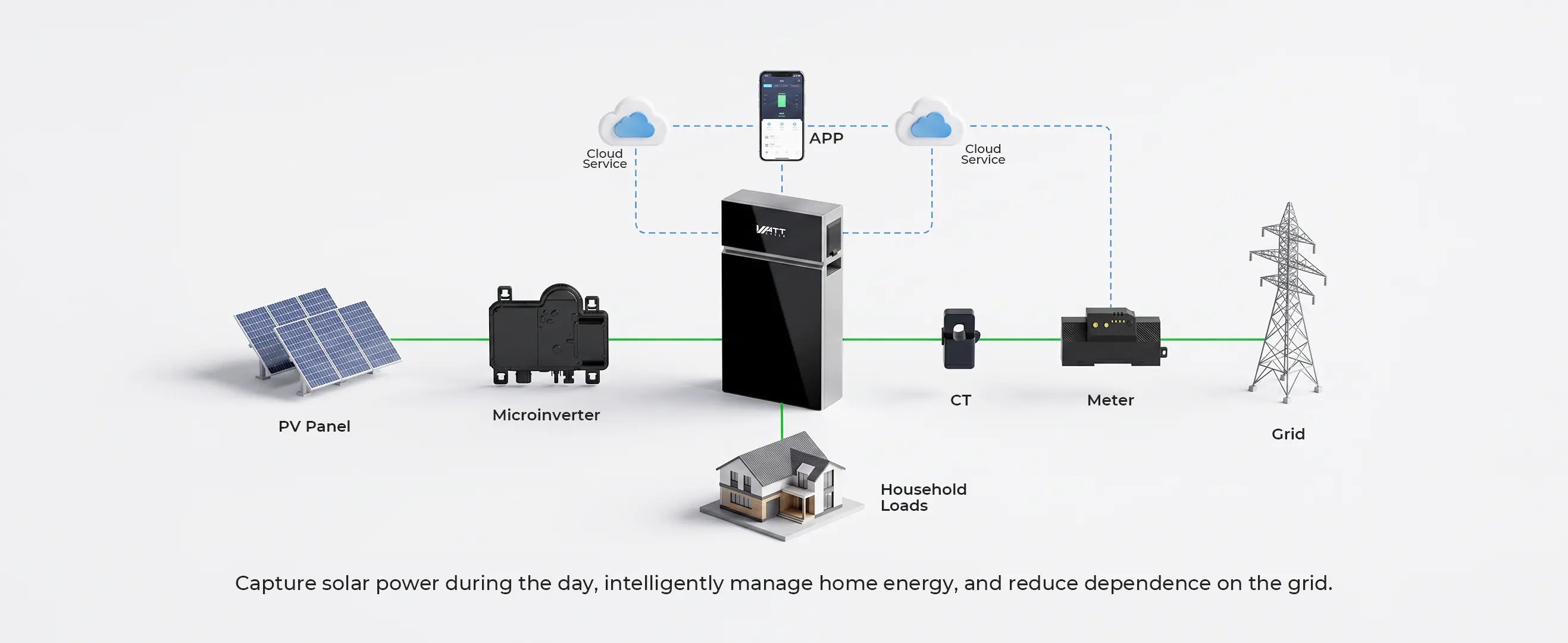

Microinverter Interface: Easy Integration with Balcony Solar Systems

The WattCycle PIONEER 2500W balcony battery with 10kWh storage can be integrated into existing balcony solar systems quickly and smoothly. It can be connected directly to the microinverter, without the need for an additional separate interface.

For users who already have a balcony solar setup, this is especially practical. The PIONEER adds strong battery storage to the system and helps make self-generated solar power available for more hours of the day.

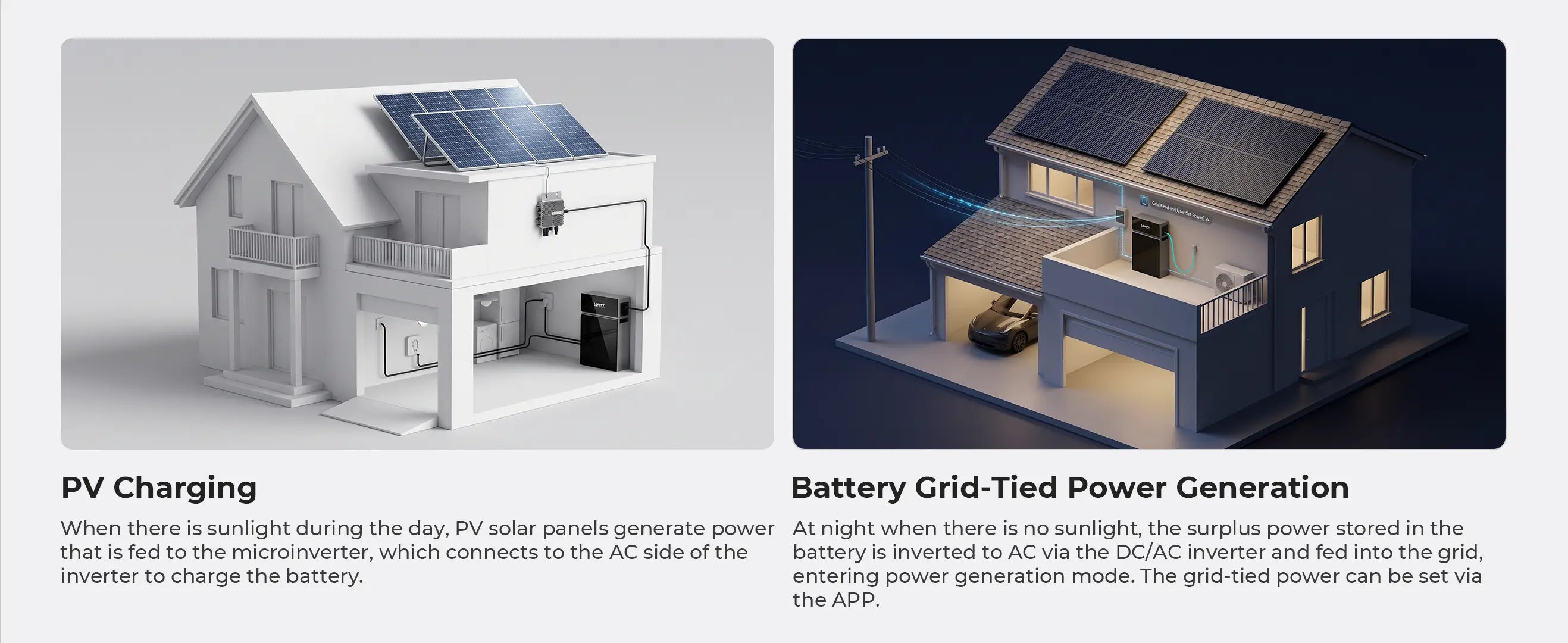

Bidirectional Charging: Use Solar Power and Grid Power More Flexibly

The WattCycle PIONEER 2500W balcony solar battery supports different charging and discharging modes, including PV charging, grid charging and grid-connected power output. This means energy can be stored not only from solar panels, but also from the grid when needed.

In daily use, this creates more flexibility. When electricity prices are lower, the battery can be charged from the grid. When consumption or electricity prices are higher, stored energy can be used more strategically.

UPS and Backup Power: Fast Switching During Power Outages

The WattCycle PIONEER 2500W balcony battery can also serve as an additional power reserve. In UPS mode, the system automatically switches to battery power when the grid goes down. The switching time is less than 10ms.

This is especially helpful for important devices that should continue running with minimal interruption, such as routers, lighting, refrigeration or home office equipment.

The PIONEER does not replace a fully planned whole-home backup power system for every scenario. But for many everyday situations, it provides a clear extra layer of security. When the grid fails, stored energy is ready for essential loads.

LiFePO4 Battery and BMS: Built for Long-Term Use

The WattCycle PIONEER 2500W balcony battery uses LiFePO4 battery technology. This battery chemistry is especially attractive for stationary energy storage because it is known for safety, long service life and stable performance.

The integrated BMS monitors important values such as voltage, current, temperature and state of charge. The system also supports active balancing, which helps keep the cells more evenly balanced and supports long-term battery stability.

In addition, the WattCycle PIONEER balcony battery supports automatic self-heating. When the temperature drops below 0°C, the heating function is activated. When the temperature rises above 10°C, it switches off automatically. This supports more reliable operation in colder conditions and makes the system more suitable for cooler European environments.

IP65 Protection and Compact Standing Design

The WattCycle PIONEER 2500W balcony battery has an IP65 protection rating. This provides better protection against dust and water jets than simple indoor devices. It makes the system suitable for different protected installation areas around the home, balcony, cellar, garage or technical room.

With dimensions of 500 × 210 × 800 mm, the battery is narrow and space-saving. At around 95 kg, however, it is clearly not a small portable battery. It is a powerful stationary energy storage system designed for more demanding use.

Important note: The installation location should be stable, load-bearing, well ventilated and safe. Installation should follow the user manual and local electrical regulations.

Where Does the WattCycle PIONEER Balcony Battery Fit Best?

Balcony and Garden: A Practical Energy Source for Everyday Life

With the WattCycle PIONEER, a balcony, terrace or garden can become a compact green energy source for the home. Solar power generated during the day can be used directly, stored for later or fed into the grid in a controlled way. This creates a flexible energy system for self-consumption, battery storage and grid-connected use.

In everyday life, this means more independence from the grid. When users cook, work, watch TV or charge devices in the evening, stored solar energy is still available. With suitable electricity tariffs, the battery can also be charged from the grid and used later in a more targeted way.

Backup Power: Extra Security During Outages

The PIONEER can also provide useful support during a power outage. In backup or UPS operation, it can continue supplying important devices such as routers, lights, refrigerators or home office equipment. In this way, solar power is not only generated during the day, but becomes more reliably available across the household.

WattCycle PIONEER Compared with Standard Balcony Batteries

Many standard balcony batteries are compact, lightweight and designed for smaller amounts of energy. They work well for simple balcony solar systems, but their capacity and output are often limited.

The WattCycle PIONEER takes a different approach. It combines 10kWh capacity, 2500W output, integrated system components, app control, microinverter interface and UPS function in one system.

The main difference is not only the battery size. What matters is the overall system performance. The PIONEER is designed for users who do not see their balcony solar system as a small extra device, but as a serious part of their household energy supply.

What Should You Check Before Buying a Balcony Battery?

Before buying a balcony battery, it is important to check how much solar power your system produces and how much electricity your household actually uses. A larger battery is especially useful when your solar panels regularly generate more power than you can use immediately.

The intended use also matters. A user who only wants to power small devices will have different needs from a household that wants to support several evening loads or add a backup power reserve.

Installation location, connection method, grid requirements and local rules should also be considered. Because the WattCycle PIONEER is a powerful electrical storage system, installation should be carried out properly. If you are planning to add storage to an existing balcony solar system, you can also read this guide: How to Retrofit Battery Storage for a Balcony Solar System

FAQ About the WattCycle PIONEER Balcony Battery

Is the WattCycle PIONEER only a battery?

No. The PIONEER is an all-in-one balcony battery storage system. It combines battery, inverter function, BMS, communication module, microinverter interface, grid connection, load connection and app control.

How much capacity does the WattCycle PIONEER offer?

The WattCycle PIONEER offers 10kWh battery capacity. This is significantly higher than many smaller balcony battery storage solutions.

How much power does the system provide?

The system provides 2.5kW rated power and 5kVA peak power. The grid-connected output can be controlled from 0 to 2500W.

Can the battery be used during a power outage?

Yes. The WattCycle PIONEER supports UPS and backup power functions. When the grid fails, the system can automatically switch to battery operation.

Is the WattCycle PIONEER suitable for existing balcony solar systems?

Yes. Thanks to its microinverter interface, the system is especially suitable for users who want to add battery storage to an existing balcony solar system.

Does the WattCycle PIONEER need professional installation?

Yes. Connection and commissioning should be carried out by qualified professionals. This is important for safety, correct connection and compliance with local regulations.

Conclusion

The WattCycle PIONEER 2500W balcony battery with 10kWh storage is a strong solution for households that expect more than a small add-on battery. With 10kWh capacity, 2500W output, 5kVA peak power, microinverter interface, app control, CT meter, LiFePO4 battery and UPS function, it brings many important features together in one system.

The most convincing part is the combination of high storage capacity and practical everyday use. Solar power can be stored during the day, used in the evening and kept available at night. During a power outage, additional energy is ready for important devices.

This turns the WattCycle PIONEER from a simple balcony battery into a more capable home energy solution for higher self-consumption, greater flexibility and more security in daily life.
