Detailed Introduction to WattCycle 12V 314Ah Campervan Leisure Battery

Travel for several days without a campsite hook-up, run a coffee machine through an inverter and still avoid filling valuable storage space with several batteries. The WattCycle 12V 314Ah Campervan Leisure LiFePO4 Battery was developed for exactly this type of use. Its low-profile design also makes it suitable for installation beneath a compatible seat base.

It combines 4,019Wh of energy, a 250A continuous discharge current, Bluetooth and integrated self-heating in a metal case that is only 190 mm high. It stores more than three times the energy of a typical 12V 100Ah battery while making practical use of the space beneath a compatible seat base.

WattCycle 12V 314Ah Campervan Leisure Battery at a glance

How long will the WattCycle 12V 314Ah Campervan Underseat battery run a motorhome?

With 4,019Wh of energy, the WattCycle 12V 314Ah Campervan Leisure Battery offers more than three times the capacity of a typical 100Ah LiFePO4 battery. This makes it particularly suitable for longer stays without a campsite hook-up.

With this usage pattern, the battery provides around 2.2 days of power in theory. After allowing for conversion losses and keeping some energy in reserve, around 1.8 to 2 days without recharging is more realistic.

250A continuous discharge for inverters and high-power appliances

The WattCycle 12V 314Ah Campervan Leisure Battery supports a maximum continuous discharge current of 250A. At 12.8V, this equals a calculated DC power of 3,200W. In practical systems, the battery supports an output range of 3,000W to 3,500W.

The integrated 250A BMS monitors operation and protects the battery against overcharging, over-discharge, overcurrent, short circuits and unsuitable temperatures.

Bluetooth and self-heating for year-round travel

An under-seat battery is not always easy to access after installation. Bluetooth 5.0 allows you to monitor it conveniently through the WattCycle app.

The app displays the state of charge, voltage, current, temperature and BMS status. You can therefore check how much energy remains and when the battery needs recharging, even when it is hidden beneath the seat.

For cold-weather trips, the battery has an integrated heating function. It warms the cells before charging is enabled at low temperatures. This is especially useful for winter camping or installations in a part of the vehicle that is not continuously heated.

Warranty, delivery and support of WattCycle 12V 314Ah Campervan Leisure Battery

WattCycle 314Ah or 100Ah Under-Seat Battery?

The right size mainly depends on your daily energy use, inverter power, available installation space and permitted additional weight.

Swipe left or right to view the full comparison.

The 100Ah version is lighter and is often sufficient for typical 12V appliances. The 314Ah version is better suited to higher daily consumption and more powerful systems. Its 30 kg weight and 290 mm width require more careful space and payload planning.

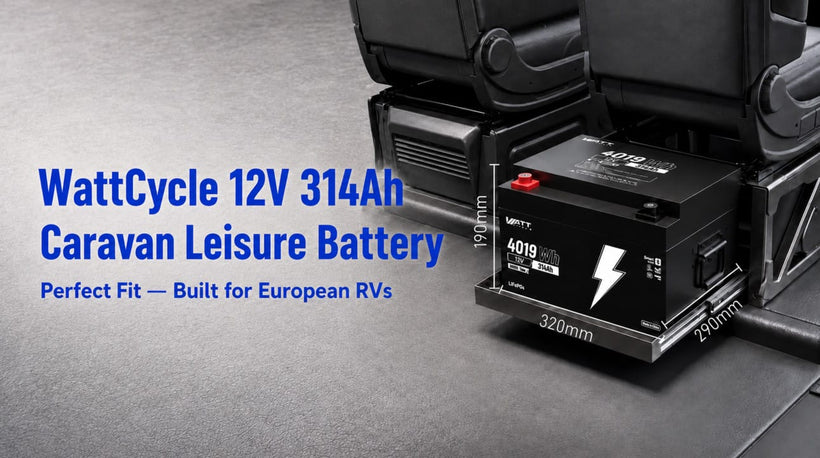

Under-seat version or standard 314Ah Mini battery?

The under-seat version is designed for a compatible seat base and installations with limited height. If the mounting position is not essential, the standard 314Ah Mini battery offers more flexibility for installation in a motorhome, campervan or another energy system.

What should you check before installation?

The battery was developed especially for compatible seat bases in Fiat Ducato-based motorhomes and campervans. The model year, swivel mechanism, seat rails, cabling and previous conversions can all affect the available space.

Check the following points before purchase:

• Internal length, width and usable height of the seat base
• Position of the seat rails and swivel mechanism
• Clearance above the M8 terminals
• Space for cables, a fuse and an isolation switch
• Orientation of the positive and negative terminals
• A secure and vibration-resistant mounting point
• Permitted additional weight at the selected installation location

Because the battery is rated IP21, it must be installed in a dry and protected interior location.

If you are replacing a lead-acid battery with LiFePO4, check the following components for LiFePO4 compatibility before making the change:

• 230V mains charger or electrical control unit
• DC-to-DC charger
• Solar charge controller
• Inverter
• Cables, fuses and connections

Frequently asked questions

Can the 12V 314Ah battery be used as a starter battery?

No. It is a caravan leisure battery designed to power the onboard electrical system. It is not intended to start a vehicle engine.

What is the main difference compared with the 12V 314Ah Mini Arctic?

Both models include Bluetooth and self-heating. At 190 mm, the under-seat version is considerably lower. It also uses a metal case and increases the maximum continuous discharge current from 200A to 250A. The Arctic version offers more flexible installation options but requires greater installation height.

Conclusion

The WattCycle 12V 314Ah Campervan Leisure Battery is a space-efficient option for high energy demand and longer off-grid trips. Its under-seat format makes use of an area that is often left unused. Before choosing it, confirm that the seat base is compatible, the vehicle has sufficient payload, the installation area is dry and the charging equipment supports LiFePO4 batteries.
